YXS10-AEPRN (1995)

Toyota Crown Comfort/Sed

Production Dec 1995 - Aug 2008
Engine 3YPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

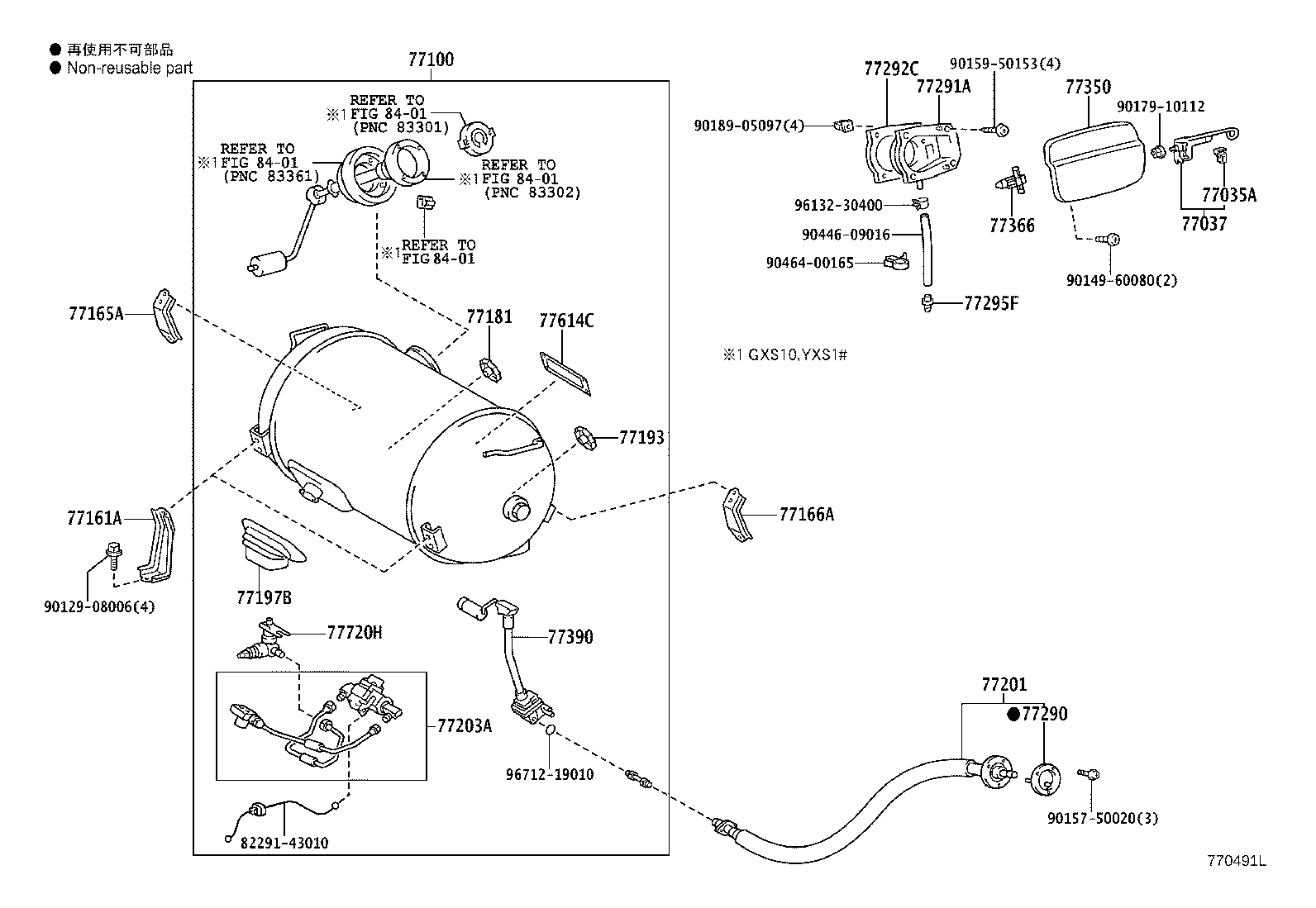

ILLUST NO. 1 OF 2(9512- )GXS10,YXS1#

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ

diagram 77035A 77037 77100 77161A 77165A 77166A 77181 77193 77197B 77201 77203A 77290 77291A 77292C 77295F 77350 77366 77390 77614C 77720H 8229143010 8401 8401 8401 8401 9012908006 9014960080 9015750020 9015950153 9017910112 9018905097 9044609016 9046400165 9613230400 9671219010
Part # Description Qty Price
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
69749-20010

YXS1#..4FC,5F

 1
69749-20010

GXS10,YXS1#

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-43020

GXS10,YXS1#

 1
77037-43020

YXS1#..4FC,5F

 1
77100 - TANK ASSY, FUEL
77001-43901

GXS10,YXS1#

 1
77001-43901

YXS1#

 1
77001-43900

GXS10,YXS1#

 1
77001-43901

YXS1#..4FC,5F

 1
77161A - BRACKET, FUEL TANK MOUNTING, FRONT
77161-43010

GXS10,YXS1#

 2
77161-43010

YXS1#

 2
77161-43010

YXS1#..4FC,5F

 2
77165A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 RH
77165-43010

YXS1#..4FC,5F

 1
77165-43010

GXS10,YXS1#

 1
77165-43010

YXS1#

 1
77166A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 LH
77166-43010

GXS10,YXS1#

 1
77166-43010

YXS1#

 1
77166-43010

YXS1#..4FC,5F

 1
77181 - VALVE, FUEL TANK FILLER CHECK
77181-43010

GXS10,YXS1#

 1
77181-43010

YXS1#

 1
77181-43011

YXS1#..KYO,SED,TAX;YXS10..CRW..(4FC,4H)

 1
77193 - VALVE, FUEL LIQUID VAPOR SEPARATOR
77193-43010

GXS10,YXS1#

 1
77193-43010

YXS1#..KYO,SED,TAX;YXS10..CRW..(4FC,4H)

 1
77197B - COVER, AUXILIARY FUEL TANK CARRIER
77197-43010

GXS10,YXS1#

 1
77197-43010

YXS1#..KYO,SED,TAX;YXS10..CRW..(4FC,4H)

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-30330

YXS1#

 1
77201-30330

GXS10,YXS1#

 1
77201-30330

YXS1#..4FC,5F

 1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-30060

GXS10,YXS1#

 1
77203-30060

YXS1#

 1
77203-30060

YXS1#..4FC,5F

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-30050

YXS1#

 1
77291-30050

GXS10,LXS11,SXS11,YXS1#

 1
77291-30050

YXS1#..4FC,5F

 2
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-30040

GXS10,LXS11,SXS11,YXS1#

 1
77291-30040

GBS12,YXS1#..4FC,5F

 1
77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2
77292-30030

GXS10,LXS11,SXS11,YXS1#

 1
77292-30030

GBS12,YXS1#..4FC,5F

 1
77295F - GROMMET, FUEL HOSE
77295-43020

GXS10,LXS11,SXS11,YXS1#

 1
77295-43020

GBS12,YXS1#..4FC,5F

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-43010

YXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS1#..KYO,SED,TAX

 1
77350-43010

GXS10,LXS11,SXS11,YXS1#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-12030

GXS10,LXS11,SXS11,YXS1#

 1
77360-43010

GBS12,YXS1#..4FC,5F

 1
77390 - VALVE ASSY, FUEL TANK INLET
77390-30060

YXS1#

 1
77390-30060

GXS10,YXS1#

 1
77390-30060

YXS1#..4FC,5F

 1
77614C - SEAL, FUEL TANK COVER
77614-43010

GXS10,YXS1#

 1
77614-43010

YXS1#..KYO,SED,TAX;YXS10..CRW..(4FC,4H)

 1
77720H - VALVE ASSY, FUEL OUTLET
77720-30020

GXS10,YXS1#

 1
77720-30020

YXS1#..4FC,5F

 1
77720-30020

YXS1#

 1
Common parts
82291-43010
90129-08006
90149-60080
90157-50020
90159-50153
90179-10112
90189-05097
90446-09016
90464-00165
96132-30400
96712-19010
Linked diagrams
8401

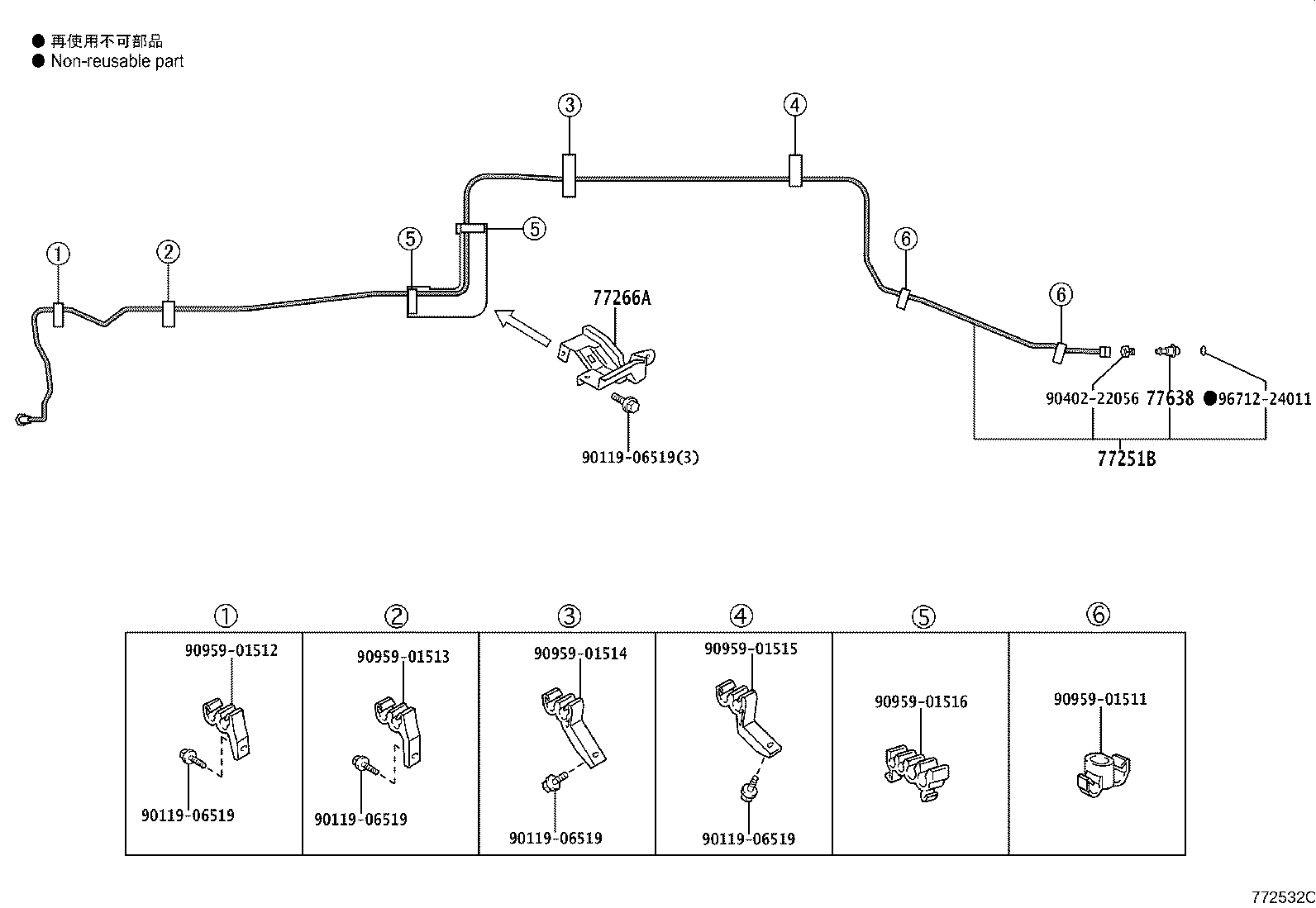

ILLUST NO. 2 OF 2(9512- )YXS1#

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 77251B 77266A 77638 9011906519 9011906519 9011906519 9011906519 9011906519 9040222056 9095901511 9095901512 9095901513 9095901514 9095901515 9095901516 9671224011
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-43010

YXS10

 1
77251-43011

YXS10

 1
77251-43012

YXS10

 1
77251-43013

YXS10..4FC

 1
77251-43012

YXS10

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-43010

SXS11,YXS1#

 1
77266-43010

YXS1#..4FC,5F

 1
77638 - SLEEVE, TANK VALVE JOINT
77638-20011

YXS10

 1
77638-20011

YXS10

 1
77638-20011

YXS1#..KYO,SED,TAX;YXS10..CRW..(4FC,4H)

 1
77638-20011

YXS10

 1
Common parts
90119-06519
90402-22056
90959-01511
90959-01512
90959-01513
90959-01514
90959-01515
90959-01516
96712-24011
