YXS10-AEPRN (1995)

Toyota Crown Comfort/Sed

Production Dec 1995 - Aug 2008
Engine 3YPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512-1206)CRW,KYO,TAX

Click highlighted areas on diagram

diagram 71017A 7104 7104 7104 7104 7104 71075B 71077B 71295A 71296B 71460B 71480B 71611 71650 71651B 72693 72927B 72927B 9011906355
Part # Description Qty Price
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-43010

GXS10,LXS11,SXS11,YXS1#

 1
71017-43010

LXS11,SXS11,YXS1#..DLX,STD

 1
71017-43010

YXS1#..(4FC,5F)..(DLX,STD)

 1
71017-43030

YXS10..CRW..4FC

ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ)

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-43010B1

LXS11,SXS11,YXS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,MEDIUM GRAY,TRIM1#

 1
71075-43011B1

LXS11,SXS11,YXS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,MEDIUM GRAY,TRIM1#

 1
71075-43011B3

SXS13,YXS1#..(4FC,4H,5F)..(DLX,STD)

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71075-43050B2

YXS10..CRW..4FC

ｼ-ﾄ = TYPE B-*104 & ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ),DARK GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-43010B1

LXS11,SXS11,YXS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,MEDIUM GRAY,TRIM1#

 1
71077-43010B3

SXS13,YXS1#..(4FC,4H,5F)..(DLX,STD)

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71077-43070B2

YXS10..CRW..4FC

ｼ-ﾄ = TYPE B-*104 & ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ),DARK GRAY,TRIM1#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-43010B0

LXS11,SXS11,YXS1#..DLX,STD

***,ｼ-ﾄ = TYPE B-*104,SHADOW GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-43010B0

LXS11,SXS11,YXS1#..DLX,STD

***,ｼ-ﾄ = TYPE B-*104,SHADOW GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71611-43010

GXS10,LXS11,SXS11,YXS1#

 1
71611-43030

GXS10,LXS11,SXS11,YXS1#

 1
71611-43030

YXS1#..(4FC,5F)..(DLX,SG,STD)

 1
71611-43020

YXS10..CRW..4FC

ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ)

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-43010

GXS10,LXS11,SXS11,YXS1#

 1
71650-43010

YXS1#..(4FC,5F)..(DLX,SG,STD)

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-43010

LXS11,SXS11,YXS1#..DLX,STD

 1
71651-43040

GXS10,LXS11,SXS11,YXS1#

 1
71651-43010

GXS10,LXS11,SXS11,YXS1#

 1
71651-43040

YXS1#..(4FC,5F)..(DLX,SG,STD)

 1
71651-43030

YXS10..CRW..4FC

ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ)

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-43010

GXS10,LXS11,SXS11,YXS1#

 2
72693-43011

YXS10..CRW..4FC

ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ)

 1
72693-43011

GXS10,LXS11,SXS11,YXS1#

 2
72693-43011

GBS12,YXS1#..4FC,5F

 2
72927B - COVER, REAR SEAT CUSHION UNDER
72927-43010

GBS12,YXS1#

 2
72927B - COVER, REAR SEAT CUSHION UNDER
72927-43010

GBS12,YXS1#

 2
Common parts
90119-06355
Linked diagrams
7104

(9512- )

Click highlighted areas on diagram

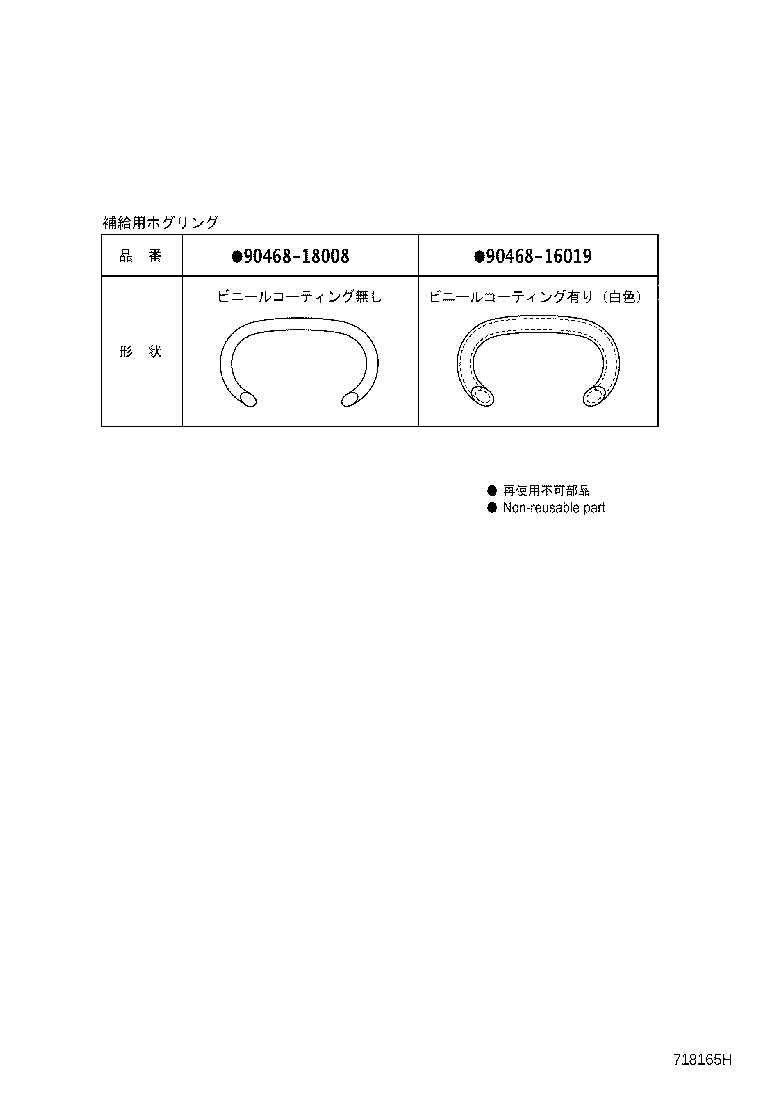

ﾎｸﾞﾘﾝｸﾞ

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
