YXS10-AEPRN (1995)
Toyota Crown Comfort/Sed
ILLUST NO. 1 OF 3(9512- )GBS12,GXS1#,LXS11,SXS1#,YXS1# ; (0709- )TSS1#
ｾﾊﾟﾚｰﾄ ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-43040B1 |
LXS11,SXS11,YXS1#..(4FC,5F)..(DLX,STD) ｼ-ﾄ = TYPE B-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-43040B2 |
LXS11,SXS11,YXS1#..(4FC,5F)..(DLX,STD) ｼ-ﾄ = TYPE B-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-43040B4 |
YXS1#..(CRW,TAX)..(4FC,5F)..(DLX,STD) ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-43060B1 |
LXS11,YXS1#..(CRW,TAX)..(4FC,5F)..(DLX,STD) ｼ-ﾄ = TYPE B-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-43060B2 |
LXS11,YXS1#..(CRW,TAX)..(4FC,5F)..(DLX,STD) ｼ-ﾄ = TYPE B-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71072-43060B4 |
YXS1#..(CRW,TAX)..(4FC,5F)..(DLX,STD) ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-43050B1 |
LXS11,SXS11,YXS1#..(4FC,5F)..(DLX,STD) ｼ-ﾄ = TYPE B-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-43051B1 |
YXS10..4H,4HC;YXS10..4FC..STD ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-43051B3 |
YXS1#..(CRW,TAX)..(DLX,STD) ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),DARK GRAY,TRIM1# |
1 | ||
| 71073-43052B3 |
YXS1#..(CRW,TAX)..(4FC,5F)..(DLX,STD) ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-43050B1 |
LXS11,SXS11,YXS1#..(4FC,5F)..(DLX,STD) ｼ-ﾄ = TYPE B-*104,MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-43051B1 |
YXS10 ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-43051B3 |
SXS13,YXS1#..DLX,STD ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),DARK GRAY,TRIM1# |
1 | ||
| 71074-43270B0 |
YXS1#..(CRW,TAX)..(4FC,5F)..(DLX,STD) ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-43040B0 |
YXS10..STD;LXS11,SXS11,YXS11..DLX,STD ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-43060B0 |
LXS11,YXS1#..(4FC,5F)..STD ***,ｼ-ﾄ = TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-43240B0 |
YXS1#..(4FC,5F)..STD ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ),SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-43060B0 |
LXS11,YXS1#..STD ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71430-43061B0 |
LXS11,YXS1#..(4FC,5F)..STD ***,ｼ-ﾄ = TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-43060B0 |
LXS11,YXS1#..(4FC,5F)..STD ***,ｼ-ﾄ = TYPE B-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71440-43061B0 |
LXS11,YXS1#..(CRW,TAX)..(DLX,STD) ***,ｼ-ﾄ = TYPE B-*104 & ｱﾘ(ﾌﾛﾝﾄｾﾊﾟﾚ-ﾄｼ-ﾄ),SHADOW GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-43020 |
GXS10,LXS11,SXS11,YXS1#..4FC,5F |
1 | ||
| 71511-43020 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-43020 |
GXS10,LXS11,YXS1#..(CRW,TAX)..(4FC,5F) |
1 | ||
| 71512-43020 |
YXS1#..(CRW,TAX)..(4FC,5F) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-43020 |
GXS10,LXS11,SXS11,YXS1#..4FC,5F |
1 | ||
| 71551-43021 |
GXS10,LXS11,SXS11,YXS1#..4FC,5F |
1 | ||
| 71551-43021 |
SXS13,YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 71551-43040 |
GXS10,LXS11,YXS1#..CRW,TAX ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
1 | ||
| 71551-43070 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-43020 |
GXS10,LXS11,SXS11,YXS1#..4FC,5F |
1 | ||
| 71551-43040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 71551-43021 |
GXS10,LXS11,SXS11,YXS1#..4FC,5F |
1 | ||
| 71551-43021 |
SXS13,YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 71551-43070 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-43010 |
YXS1#..(CRW,TAX)..(4FC,5F)..(DLX,STD) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-43020 |
YXS1#..(CRW,TAX)..(4FC,5F)..(DLX,STD) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-43010 |
YXS1#..(4FC,5F)..(DLX,SG,STD) |
1 | ||
| 71610-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71011-20440 |
YXS10..STD;YXS10..4FC..DLX;GXS10,LXS11,YXS11..(CRW,TAX)..(4FC,5F) |
1 | ||
| 71012-43070 |
GXS10,YXS1#..CRW,TAX ｱﾘ(ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ) |
1 | ||
| 71011-20440 |
YXS1#..(CRW,TAX)..(4FC,5F) |
1 | ||
| 71012-43070 |
YXS1#..(CRW,TAX)..(4FC,5F) ｱﾘ(ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-43020 |
GXS10,LXS11,YXS1#..CRW,TAX |
1 | ||
| 71630-43100 |
YXS1#..(CRW,TAX)..(4FC,5F) |
1 | ||
| 71630-43020 |
YXS1#..CRW,TAX |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-43010 |
GXS10,LXS11,YXS1#..CRW,TAX ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
1 | ||
| 71640-43010 |
YXS1#..CRW,TAX ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
1 | ||
| 71640-43011 |
YXS1#..(CRW,TAX)..(4FC,5F) |
1 | ||
| 71753 - TRAY, FRONT SEAT UNDER | ||||
| 71753-43010 |
GXS10,YXS1#..CRW,TAX |
1 | ||
| 71753-43010 |
YXS1#..(CRW,TAX)..(4FC,5F) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-43010B2 |
YXS1#..(CRW,TAX)..(DLX,STD) ｼ-ﾄ = TYPE A OR TYPE B-*104,DK.GRAY,TRIM1# |
2 | ||
| 71910-43010B0 |
GXS10,LXS11,SXS11,YXS1#..DLX,SDX,STD SHADOW GRAY,TRIM1# |
2 | ||
| 71910-43110B1 |
YXS1#..(4FC,5F)..(DLX,STD) ｼ-ﾄ = TYPE A OR TYPE B-*104,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040B0 |
GXS10,LXS11,YXS1# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070B0 |
GXS10,LXS11,YXS1# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
GXS10,LXS11,SXS11,YXS1# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
GXS10,LXS11,SXS11,YXS1# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040S7 |
SXS13,YXS1#..DLX,SG,STD ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-13030B7 |
SXS13,YXS1#..DLX,SG,STD ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
GBS12,YXS1#..4FC,5F ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
GBS12,YXS1#..4FC,5F ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-12040B0 |
GXS10,LXS11,YXS1# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-12070B0 |
GXS10,LXS11,YXS1# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
GXS10,LXS11,SXS11,YXS1# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
GXS10,LXS11,SXS11,YXS1# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-12040S7 |
SXS13,YXS1#..DLX,SG,STD ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-13030B7 |
SXS13,YXS1#..DLX,SG,STD ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71930-44020B0 |
GBS12,YXS1#..4FC,5F ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931-47010B2 |
GBS12,YXS1#..4FC,5F ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-43010 |
GXS10,LXS11,YXS1#..(CRW,TAX)..(4FC,5F) |
1 | ||
| 72750-43010 |
GBS12,YXS1#..(CRW,SED,TAX)..(4FC,5F) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-30030B1 |
GXS10,LXS11,SXS11,YXS1#..4FC,5F SHADOW GRAY,TRIM1# |
1 | ||
| 72791-43010B0 |
GBS12,GXS12,SXS13,YXS1#..4FC,5F DK.GRAY,TRIM1# |
1 | ||
| 72791-30030B2 |
GBS12,GXS1#,SXS13,YXS1#..4FC,5F DK.GRAY,TRIM1# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01006 |
YXS10..STD;YXS10..4FC..DLX;GXS10,LXS11,SXS11,YXS11..4FC,5F |
1 | ||
| 90520-01006 |
YXS10..4HC..STD;YXS10..4FC..DLX;GBS12,GXS12,SXS13,YXS11;YXS10..(4FC,4H)..(SAL,SDX,STD) |
1 | ||
| 72797A - SPACER, LUMBAR SUPPORT | ||||
| 72797-43010 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-43010B0 |
GBS12,GXS12,SXS13,YXS1#..4FC,5F DK.GRAY,TRIM1# |
4 | ||
| 74617-30020B1 |
GXS10,LXS11,SXS11,YXS1#..DLX,SDX,STD ｼ-ﾄ = TYPE B-*104,GRAY,TRIM1# |
4 | ||
| 74617-30020B1 |
YXS11..STD;GXS10,LXS11,YXS10..DLX,SDX,STD ｼ-ﾄ = TYPE A-*104,GRAY,TRIM1# |
4 | ||
| 74617-30020B4 |
GBS12,GXS1#,SXS13,YXS1# DK.GRAY,TRIM1# |
4 | ||
| 74620A - GRIP ASSY, ASSIST, REAR | ||||
| 74620-30050B4 |
GBS12,GXS1#,SXS13,YXS1# DK.GRAY,TRIM1# |
2 | ||
| 74690-43010B0 |
GBS12,GXS12,SXS13,YXS1#..4FC,5F DK.GRAY,TRIM1# |
2 | ||
| 74620-30050B3 |
GXS10,LXS11,SXS11,YXS1#..DLX,SDX,STD ｼ-ﾄ = TYPE A OR TYPE B-*104,SHADOW GRAY,TRIM1# |
2 | ||
| 74671C - SUPPORT, ASSIST GRIP | ||||
| 74671-30010 |
GXS10,LXS11,SXS11,YXS1# |
4 | ||
| 74671-30010 |
GBS12,GXS12,SXS13,YXS1# |
4 | ||
| 74671-40010 |
GBS12,YXS1#..4FC,5F |
4 | ||
| Common parts | ||||
| 82711-52090 | ||||
| 90159-40230 | ||||
| 90159-60084 | ||||
| 90168-50038 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 7404 | ||||
ILLUST NO. 2 OF 3(9512- )GBS12,GXS1#,LXS11,SXS1#,YXS1# ; (0709- )TSS1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-16230P1 |
YXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS1#..KYO,SED,TAX DK.GRAY,TRIM1# |
1 | ||
| 71811-16230B0 |
GXS10,LXS11,SXS11,YXS1# SHADOW GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-16190B0 |
GXS10,LXS11,SXS11,YXS1# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-16190P1 |
YXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS1#..KYO,SED,TAX DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20130B0 |
GXS10,LXS11,SXS11,YXS1# SHADOW GRAY,TRIM1# |
1 | ||
| 71861-20130P2 |
YXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS1#..KYO,SED,TAX DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20130P2 |
YXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS1#..KYO,SED,TAX DK.GRAY,TRIM1# |
1 | ||
| 71862-20130B0 |
GXS10,LXS11,SXS11,YXS1# SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-43020 |
GXS10,LXS11,SXS11,YXS1#..4FC,5F |
1 | ||
| 72011-43021 |
YXS1#..(4FC,5F)..(DLX,SG,STD) ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
1 | ||
| 72011-43021 |
GXS10,LXS11,SXS11,YXS1# ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-43010 |
GXS10,LXS11,YXS1#..CRW,TAX |
1 | ||
| 72012-43011 |
GXS10,LXS11,YXS1#..CRW,TAX |
1 | ||
| 72012-43011 |
GBS12,YXS1#..(CRW,SED,TAX)..(4FC,5F) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-43021 |
GXS10,LXS11,SXS11,YXS1# ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
1 | ||
| 72021-43020 |
GXS10,LXS11,SXS11,YXS1#..4FC,5F |
1 | ||
| 72021-43021 |
YXS1#..(4FC,5F)..(DLX,SG,STD) ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-43010 |
GXS10,LXS11,YXS1#..CRW,TAX |
1 | ||
| 72022-43011 |
GXS10,LXS11,YXS1#..CRW,TAX ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
1 | ||
| 72022-43010 |
GXS10,LXS11,YXS1#..CRW,TAX ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
1 | ||
| 72022-43011 |
YXS1#..(CRW,TAX)..(4FC,5F) ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
1 | ||
| 72022-43010 |
GXS10,YXS10 ｱﾘ(ﾌﾛﾝﾄ ｾﾊﾟﾚ-ﾄ ｼ-ﾄ) |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 72125-16020 |
GBS12,YXS1#..4FC,5F |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 72125-16020 |
GBS12,YXS1#..4FC,5F |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 72125-16020 |
GBS12,YXS1#..4FC,5F |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 72125-16020 |
GBS12,YXS1#..4FC,5F |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
GXS10,LXS11,SXS11,YXS1# ﾘﾔ |
2 | ||
| 72129-16020 |
GXS10,LXS11,SXS11,YXS1# ﾌﾛﾝﾄ |
2 | ||
| 72129-16020 |
GBS12,YXS1#..4FC,5F ﾌﾛﾝﾄ |
4 | ||
| 72129-16010 |
GBS12,YXS1#..4FC,5F ﾘﾔ |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
GXS10,LXS11,SXS11,YXS1# ﾘﾔ |
2 | ||
| 72129-16020 |
GXS10,LXS11,SXS11,YXS1# ﾌﾛﾝﾄ |
2 | ||
| 72129-16020 |
GBS12,YXS1#..4FC,5F ﾌﾛﾝﾄ |
4 | ||
| 72129-16010 |
GBS12,YXS1#..4FC,5F ﾘﾔ |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
GXS10,LXS11,SXS11,YXS1# ﾘﾔ |
2 | ||
| 72129-16020 |
GXS10,LXS11,SXS11,YXS1# ﾌﾛﾝﾄ |
2 | ||
| 72129-16020 |
GBS12,YXS1#..4FC,5F ﾌﾛﾝﾄ |
4 | ||
| 72129-16010 |
GBS12,YXS1#..4FC,5F ﾘﾔ |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
GXS10,LXS11,SXS11,YXS1# ﾘﾔ |
2 | ||
| 72129-16020 |
GXS10,LXS11,SXS11,YXS1# ﾌﾛﾝﾄ |
2 | ||
| 72129-16020 |
GBS12,YXS1#..4FC,5F ﾌﾛﾝﾄ |
4 | ||
| 72129-16010 |
GBS12,YXS1#..4FC,5F ﾘﾔ |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
GXS10,LXS11,SXS11,YXS1# ﾘﾔ |
2 | ||
| 72129-16020 |
GXS10,LXS11,SXS11,YXS1# ﾌﾛﾝﾄ |
2 | ||
| 72129-16020 |
GBS12,YXS1#..4FC,5F ﾌﾛﾝﾄ |
4 | ||
| 72129-16010 |
GBS12,YXS1#..4FC,5F ﾘﾔ |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
GXS10,LXS11,SXS11,YXS1# ﾘﾔ |
2 | ||
| 72129-16020 |
GXS10,LXS11,SXS11,YXS1# ﾌﾛﾝﾄ |
2 | ||
| 72129-16020 |
GBS12,YXS1#..4FC,5F ﾌﾛﾝﾄ |
4 | ||
| 72129-16010 |
GBS12,YXS1#..4FC,5F ﾘﾔ |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
GXS10,LXS11,SXS11,YXS1# ﾘﾔ |
2 | ||
| 72129-16020 |
GXS10,LXS11,SXS11,YXS1# ﾌﾛﾝﾄ |
2 | ||
| 72129-16020 |
GBS12,YXS1#..4FC,5F ﾌﾛﾝﾄ |
4 | ||
| 72129-16010 |
GBS12,YXS1#..4FC,5F ﾘﾔ |
4 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
GXS10,LXS11,SXS11,YXS1# ﾘﾔ |
2 | ||
| 72129-16020 |
GXS10,LXS11,SXS11,YXS1# ﾌﾛﾝﾄ |
2 | ||
| 72129-16020 |
GBS12,YXS1#..4FC,5F ﾌﾛﾝﾄ |
4 | ||
| 72129-16010 |
GBS12,YXS1#..4FC,5F ﾘﾔ |
4 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-43010B1 |
YXS10..SED;YXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS11..4FC,5F DK.GRAY,TRIM1# |
1 | ||
| 72137-43010B0 |
GXS10,LXS11,SXS11,YXS1# SHADOW GRAY,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-43020B0 |
GXS10,LXS11,SXS11,YXS1#..4FC,5F SHADOW GRAY,TRIM1# |
1 | ||
| 72138-43020B1 |
YXS10..SED;YXS10..CRW..4FC;GBS12,GXS1#,SXS13,YXS11..4FC,5F DK.GRAY,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-43020B0 |
GXS10,LXS11,SXS11,YXS1#..4FC,5F SHADOW GRAY,TRIM1# |
1 | ||
| 72138-43020B1 |
YXS10..SED;YXS10..CRW..4FC;GBS12,GXS1#,SXS13,YXS11..4FC,5F DK.GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-43010B1 |
YXS10..SED;YXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS11..4FC,5F DK.GRAY,TRIM1# |
1 | ||
| 72157-43010B0 |
GXS10,LXS11,SXS11,YXS1# SHADOW GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-43010B0 |
GXS10,LXS11,SXS11,YXS1#..4FC,5F SHADOW GRAY,TRIM1# |
1 | ||
| 72157-43010B1 |
YXS10..SED;YXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS11..4FC,5F DK.GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72157-43010B0 |
GXS10,LXS11,SXS11,YXS1#..4FC,5F SHADOW GRAY,TRIM1# |
1 | ||
| 72157-43010B1 |
YXS10..SED;YXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS11..4FC,5F DK.GRAY,TRIM1# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-20110 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 72201-20110 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-43020 |
GXS10,YXS1#..CRW,TAX ｱﾘ(ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ) |
1 | ||
| 72201-43020 |
YXS1#..(CRW,TAX)..(4FC,5F) ｱﾘ(ｼ-ﾄ ｱﾝﾀﾞ-ﾄﾚｲ) |
1 | ||
| 72201-20110 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 72201-20110 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-18010B3 |
GXS10,LXS11,SXS11,YXS1# SHADOW GRAY,TRIM1# |
1 | ||
| 72457-18010S1 |
YXS10..CRW..(4FC,4H);GBS12,GXS1#,YXS1#..SED,TAX DK.GRAY,TRIM1# |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-18010B3 |
GXS10,LXS11,SXS11,YXS1# SHADOW GRAY,TRIM1# |
1 | ||
| 72457-18010S1 |
YXS10..CRW..(4FC,4H);GBS12,GXS1#,YXS1#..SED,TAX DK.GRAY,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-20050 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 72345-20050 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-20050 |
GBS12,YXS1#..4FC,5F |
1 | ||
| 72345-20050 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B0 |
GXS10,LXS11,SXS11,YXS1# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-16010S1 |
YXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS1#..KYO,SED,TAX DK.GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-16010B0 |
GXS10,LXS11,SXS11,YXS1# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010S1 |
YXS10..CRW..(4FC,4H);GBS12,GXS1#,SXS13,YXS1#..KYO,SED,TAX DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10578 | ||||
| 90119-10772 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91511-B0814 | ||||
| 91512-81025 | ||||
| 96160-00600 | ||||

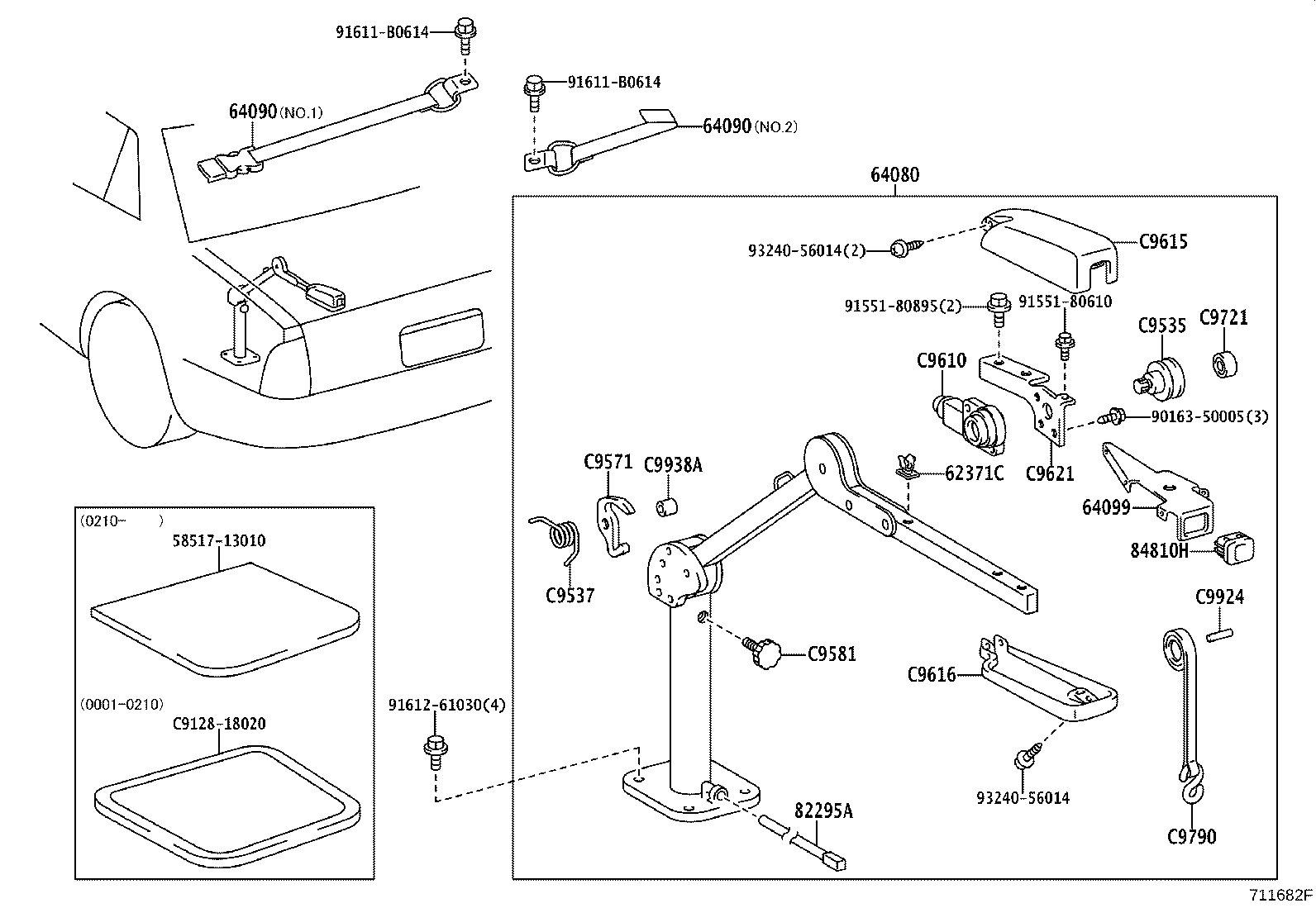

ILLUST NO. 3 OF 3(0001- )GBS12,GXS1#,SXS1#,YXS1# ; (0808- )CRW,TAX
ｱﾘ(ｸﾚ-ﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62371C - CATCH, LOCK | ||||
| 62371-43010 |
YXS10..CRW..4FC |
1 | ||
| 64080 - ARM ASSY, POWER LIFT | ||||
| 64080-43010 |
YXS10..CRW..4FC |
1 | ||
| 64090 - BELT ASSY, WHEEL CHAIR | ||||
| 64090-43010 |
YXS10..CRW..4FC NO.1 |
1 | ||
| 64090-43020 |
YXS10..CRW..4FC NO.2 |
1 | ||
| 64090 - BELT ASSY, WHEEL CHAIR | ||||
| 64090-43010 |
YXS10..CRW..4FC NO.1 |
1 | ||
| 64090-43020 |
YXS10..CRW..4FC NO.2 |
1 | ||
| 64099 - BASE SUB-ASSY, POWER LIFT ARM GUIDE | ||||
| 64099-D1010 |
YXS10..CRW..4FC |
1 | ||
| 82295A - WIRE, WINCH EARTH | ||||
| 82295-43010 |
YXS10..CRW..4FC |
1 | ||
| 84810H - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-3206022 |
YXS10..CRW..4FC BLACK,TRIM1# |
1 | ||
| C9535 - PULLEY, POWER LIFT | ||||
| C9535-D1060 |
YXS10..CRW..4FC |
1 | ||
| C9537 - SPRING, POWER LIFT RETURN | ||||
| C9537-D1010 |
YXS10..CRW..4FC |
1 | ||
| C9571 - LEVER, POWER LIFT ARM LOCK | ||||
| C9571-18010 |
YXS10..CRW..4FC |
1 | ||
| C9581 - HANDLE, POWER LIFT LOCK | ||||
| C9581-D1030 |
YXS10..CRW..4FC |
1 | ||
| C9610 - MOTOR ASSY, POWER LIFT | ||||
| C9610-18030 |
YXS10..CRW..4FC |
1 | ||
| C9615 - COVER, POWER LIFT MOTOR, NO.1 | ||||
| C9615-18020 |
YXS10..CRW..4FC |
1 | ||
| C9616 - COVER, POWER LIFT MOTOR, NO.2 | ||||
| C9616-D1020 |
YXS10..CRW..4FC |
1 | ||
| C9621 - BASE, POWER LIFT MOTOR | ||||
| C9621-D1020 |
YXS10..CRW..4FC |
1 | ||
| C9721 - BEARING, NO.2 WINCH | ||||
| C9721-D1010 |
YXS10..CRW..4FC |
1 | ||
| C9790 - BELT ASSY, WINCH | ||||
| C9790-18020 |
YXS10..CRW..4FC |
1 | ||
| C9924 - PIN | ||||
| C9924-18001 |
YXS10..CRW..4FC |
1 | ||
| C9938A - COLLAR | ||||
| C9938-18020 |
YXS10..CRW..4FC |
1 | ||
| Common parts | ||||
| 58517-13010 | ||||
| 90163-50005 | ||||
| 91551-80610 | ||||
| 91551-80895 | ||||
| 91611-B0614 | ||||
| 91612-61030 | ||||
| 93240-56014 | ||||
| C9128-18020 | ||||
(9512- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
