Toyota Crown comfort/sed YXS10 DISC WHEEL & WHEEL CAP

YXS10-AEPRN (1995)

Toyota Crown Comfort/Sed

Production Dec 1995 - Aug 2008

Engine 3YPE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

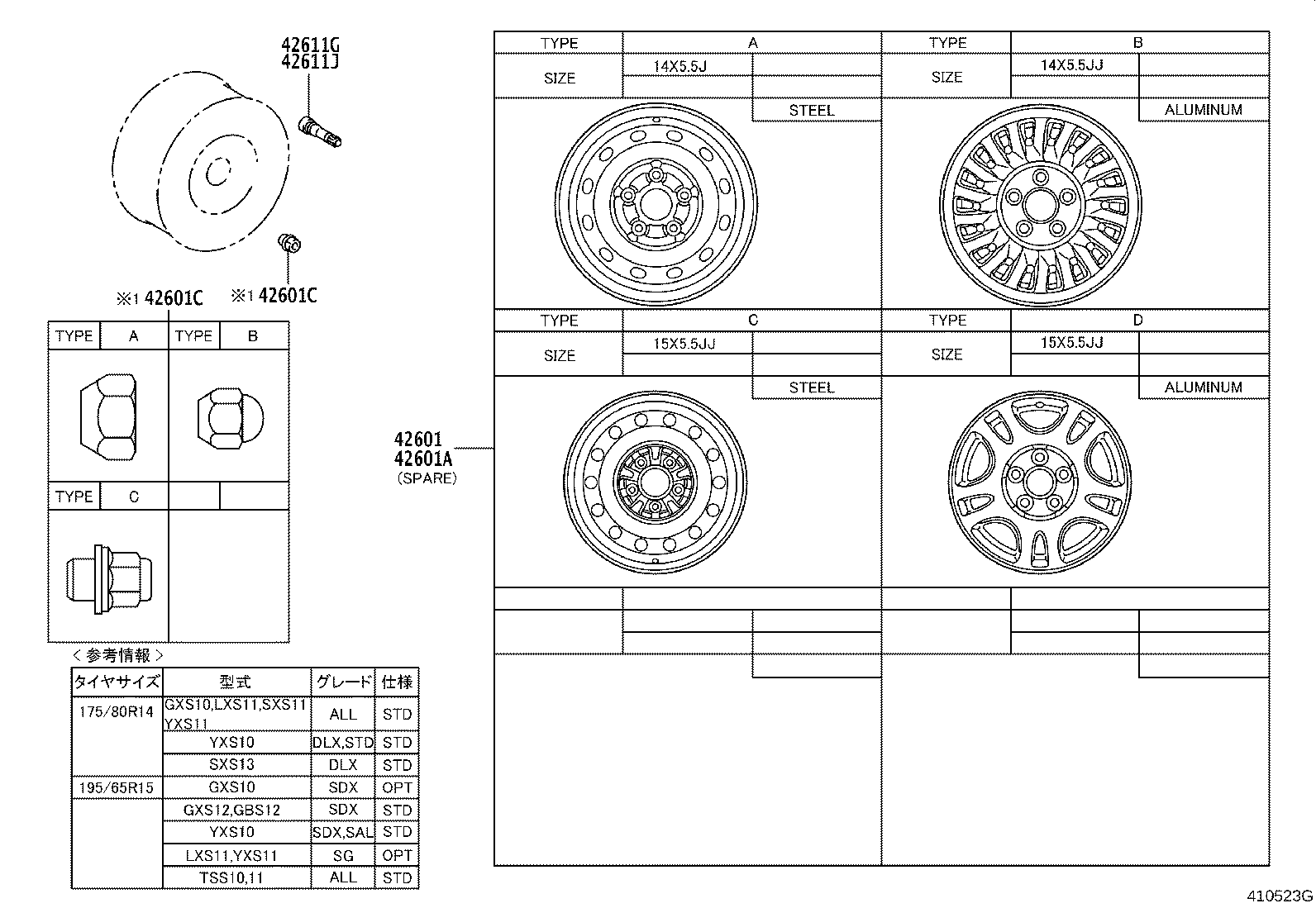

ILLUST NO. 1 OF 3(9512- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-2242003	GXS10,LXS11,SXS11,YXS1# 14X5.5J,#,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER M.	12/1995 - 08/2001	4
42611-2242003	YXS1#..(4FC,5F)..(DLX,SG,STD) 14X5.5J,#,SILVER M.,TYPE A:ｲﾗｽﾄ参照	08/2001 - 12/2999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-2242003	GXS10,LXS11,SXS11,YXS1# 14X5.5J,#,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,SILVER M.	12/1995 - 08/2001	1
42611-2242003	YXS1#..(4FC,5F)..(DLX,SG,STD) 14X5.5J,#,SILVER M.,TYPE A:ｲﾗｽﾄ参照	08/2001 - 12/2999	1
42601C - NUT, HUB (FOR AXLE)
90942-01021	LXS11,SXS11,YXS1#..DLX,STD TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	12/1995 - 08/2001	20
90942-01007	GXS10,LXS11,SXS11,YXS1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	01/1997 - 08/2001	20
90942-01021	YXS1#..(4FC,5F)..(DLX,STD) TYPE B:ｲﾗｽﾄ参照	08/2001 - 12/2999	20
90942-01007	YXS1#..4FC,5F TYPE A:ｲﾗｽﾄ参照	08/2001 - 12/2999	20
42601C - NUT, HUB (FOR AXLE)
90942-01021	LXS11,SXS11,YXS1#..DLX,STD TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ	12/1995 - 08/2001	20
90942-01007	GXS10,LXS11,SXS11,YXS1# TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	01/1997 - 08/2001	20
90942-01021	YXS1#..(4FC,5F)..(DLX,STD) TYPE B:ｲﾗｽﾄ参照	08/2001 - 12/2999	20
90942-01007	YXS1#..4FC,5F TYPE A:ｲﾗｽﾄ参照	08/2001 - 12/2999	20
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	GXS10,LXS11,SXS11,YXS1#	12/1995 - 08/2001	4
90942-05009	GBS12,YXS1#..4FC,5F	08/2001 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	GXS10,LXS11,SXS11,YXS1#	12/1995 - 08/2001	1
90942-05009	GBS12,YXS1#..4FC,5F	08/2001 - 12/2999	1

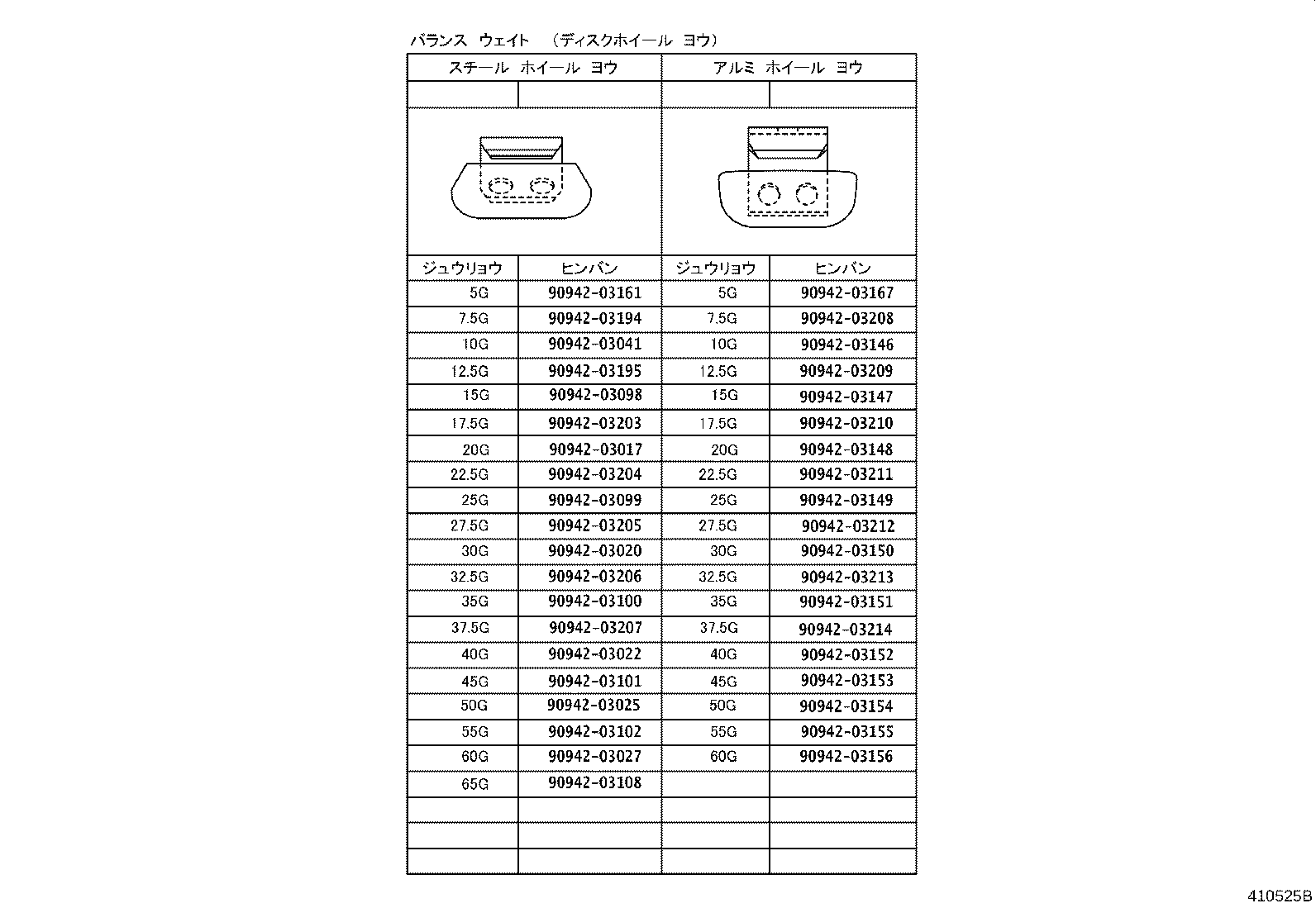

ILLUST NO. 3 OF 3(9512- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214

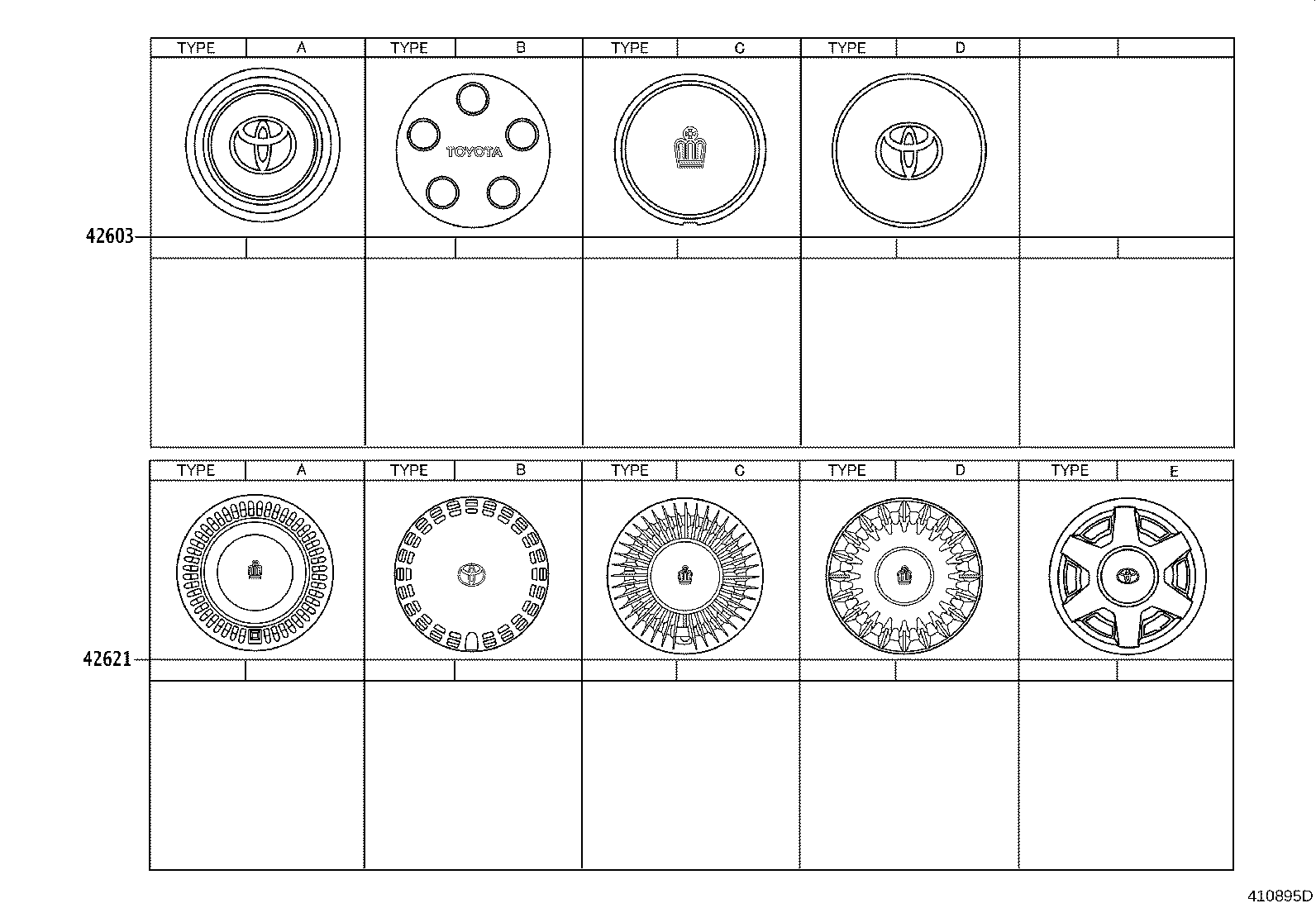

ILLUST NO. 2 OF 3(9512- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-43010	YXS1#..(4FC,5F)..(DLX,STD) *STE,TYPE A:ｲﾗｽﾄ参照	08/2001 - 12/2999	4
42603-43010	LXS11,SXS11,YXS1#..DLX,STD *STE,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	12/1995 - 08/2001	4
42621 - CAP, WHEEL
42621-30280	GXS10,YXS10 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	01/1997 - 08/2001	4
42621-30280	YXS10..CRW..4FC TYPE A:ｲﾗｽﾄ参照	08/2001 - 12/2999	4

YXS10-AEPRN (1995)

ILLUST NO. 1 OF 3(9512- )

ILLUST NO. 3 OF 3(9512- )

ILLUST NO. 2 OF 3(9512- )
