YXS10-AEPRN (1995)

Toyota Crown Comfort/Sed

Production Dec 1995 - Aug 2008
Engine 3YPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )GXS1#,LXS11,SXS1#,YXS1#..ATM

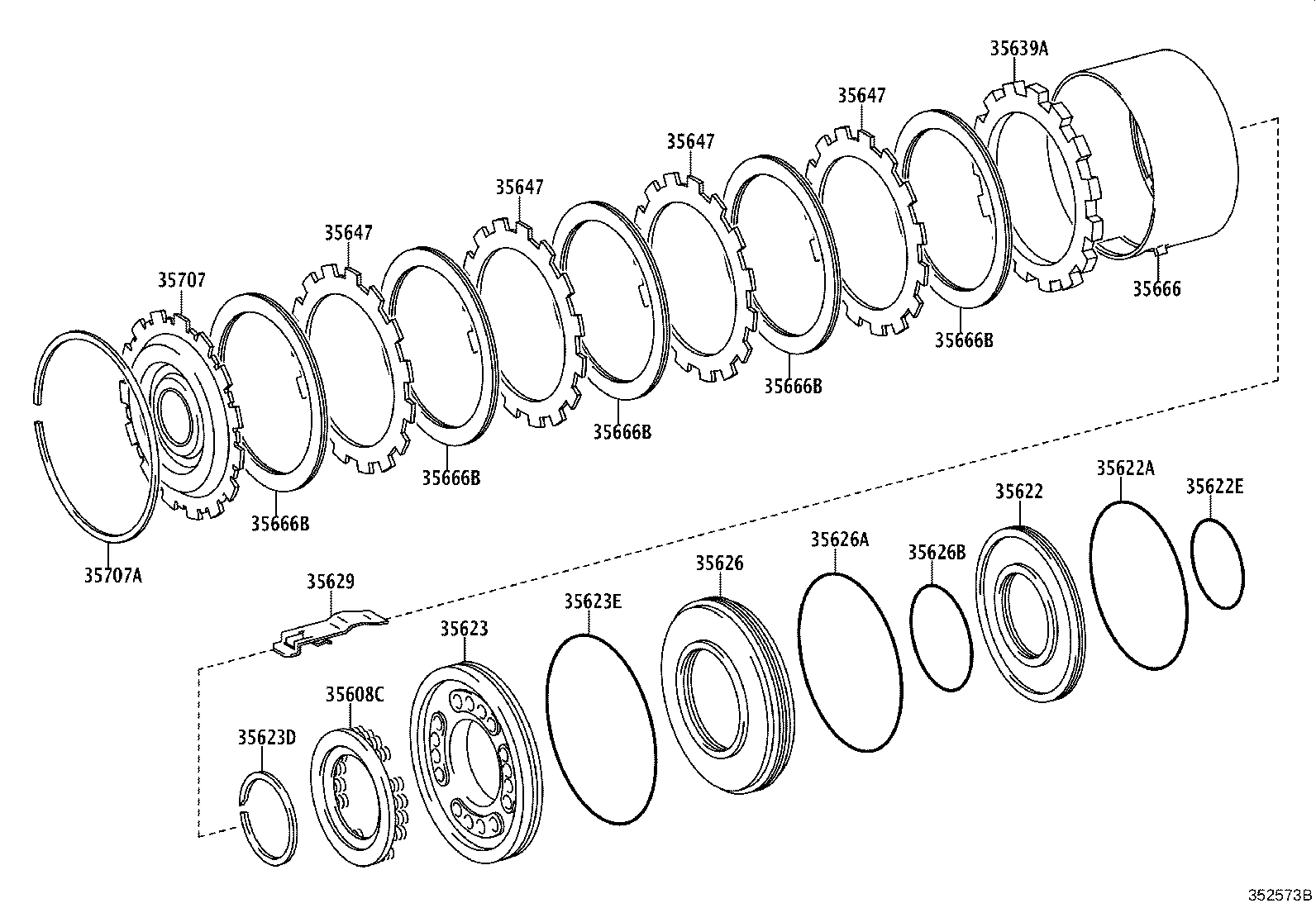

Click highlighted areas on diagram

A42D,A42DE,A43D

diagram 35608C 35622 35622A 35622E 35623 35623D 35623E 35626 35626A 35626B 35629 35639A 35647 35647 35647 35647 35666 35666B 35666B 35666B 35666B 35666B 35707 35707A
Part # Description Qty Price
35608C - SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN
35608-20020

GXS10,LXS11,SXS11,YXS1#..ATM

 1
35608-20020

YXS1#..4FC

 1
35622 - PISTON, BRAKE, NO.2
35622-22010

GXS10,LXS11,SXS11,YXS1#..ATM

 1
35622-22010

YXS1#..4FC

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99193

GXS10,LXS11,SXS11,YXS1#..ATM

 1
90301-99084

YXS1#..4FC

 1
90301-99084

GXS10,LXS11,SXS11,YXS1#..ATM

 1
35622E - RING, O (FOR BRAKE PISTON NO.2)
90301-57188

GXS10,LXS11,SXS11,YXS1#..ATM

 1
90301-56007

GXS10,LXS11,SXS11,YXS1#..ATM

 1
90301-56007

YXS1#..4FC

 1
35623 - PISTON, BRAKE, NO.3
35623-22010

GXS10,LXS11,SXS11,YXS1#..ATM

 1
35623-22010

YXS1#..4FC

 1
35623D - RING, SHAFT SNAP (FOR BRAKE)
90520-52262

GXS10,LXS11,SXS11,YXS1#..ATM

 1
90520-52262

YXS1#..4FC

 1
35623E - RING, O, NO.1 (FOR BRAKE PISTON)
90301-99110

GXS10,LXS11,SXS11,YXS1#..ATM

 1
90301-99192

GXS10,LXS11,SXS11,YXS1#..ATM

 1
90301-99110

YXS1#..4FC

 1
35626 - SLEEVE, BRAKE REACTION
35626-22010

GXS10,LXS11,SXS11,YXS1#..ATM

 1
35626-22010

YXS1#..4FC

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99200

GXS10,LXS11,SXS11,YXS1#..ATM

 1
90301-99109

YXS1#..4FC

 1
90301-99109

GXS10,LXS11,SXS11,YXS1#..ATM

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-68191

GXS10,LXS11,SXS11,YXS1#..ATM

 1
90301-67005

GXS10,LXS11,SXS11,YXS1#..ATM

 1
90301-67005

GBS12,YXS1#..4FC

 1
35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER)
35629-22010

YXS1#..4FC

 1
35629-22010

GXS10,LXS11,SXS11,YXS1#..ATM

 1
35639A - PLATE, CLUTCH PRESSURE (FOR BRAKE)
35639-22030

GXS10,SXS11,YXS1#..ATM

ﾏｰｸ 350

 1
35639-22010

GXS10,LXS11,SXS11,YXS1#..ATM

ﾏｰｸ無し

 1
35639-22050

GXS10,SXS11,YXS1#..ATM

ﾏｰｸ 400

 1
35639-22060

GXS10,SXS11,YXS1#..ATM

ﾏｰｸ 425

 1
35639-22020

GXS10,SXS11,YXS1#..ATM

ﾏｰｸ 325

 1
35639-22040

GXS10,SXS11,YXS1#..ATM

ﾏｰｸ 375

 1
35639-22030

YXS1#..4FC

ﾏｰｸ 350

 1
35639-22020

YXS1#..4FC

ﾏｰｸ 325

 1
35639-22050

YXS1#..4FC

ﾏｰｸ 400

 1
35639-22010

YXS1#..4FC

ﾏｰｸ無し

 1
35639-22060

YXS1#..4FC

ﾏｰｸ 425

 1
35639-22040

YXS1#..4FC

ﾏｰｸ 375

 1
35647 - PLATE, CLUTCH, NO.2
35647-22010

GXS10,LXS11,SXS11,YXS1#..ATM

 4
35647-22010

YXS1#..4FC

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

GXS10,LXS11,SXS11,YXS1#..ATM

 4
35647-22010

YXS1#..4FC

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

GXS10,LXS11,SXS11,YXS1#..ATM

 4
35647-22010

YXS1#..4FC

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

GXS10,LXS11,SXS11,YXS1#..ATM

 4
35647-22010

YXS1#..4FC

 4
35666 - TUBE, BRAKE APPLY
35666-30010

LXS11,YXS1#..ATM

 1
35666-30010

YXS1#..4FC

 1
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

LXS11,YXS1#..ATM

 5
35633-30060

YXS1#..4FC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

LXS11,YXS1#..ATM

 5
35633-30060

YXS1#..4FC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

LXS11,YXS1#..ATM

 5
35633-30060

YXS1#..4FC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

LXS11,YXS1#..ATM

 5
35633-30060

YXS1#..4FC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

LXS11,YXS1#..ATM

 5
35633-30060

YXS1#..4FC

 5
35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-30030

GXS10,LXS11,YXS1#..ATM

 1
35707-30030

YXS1#..4FC

 1
35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)
90521-99140

GXS10,LXS11,SXS11,YXS1#..ATM

 1
90521-99140

YXS1#..4FC

 1
