YXS10-AEPRN (1995)
Toyota Crown Comfort/Sed
Production
Dec 1995
-
Aug 2008
Engine
3YPE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9512- )3YPE

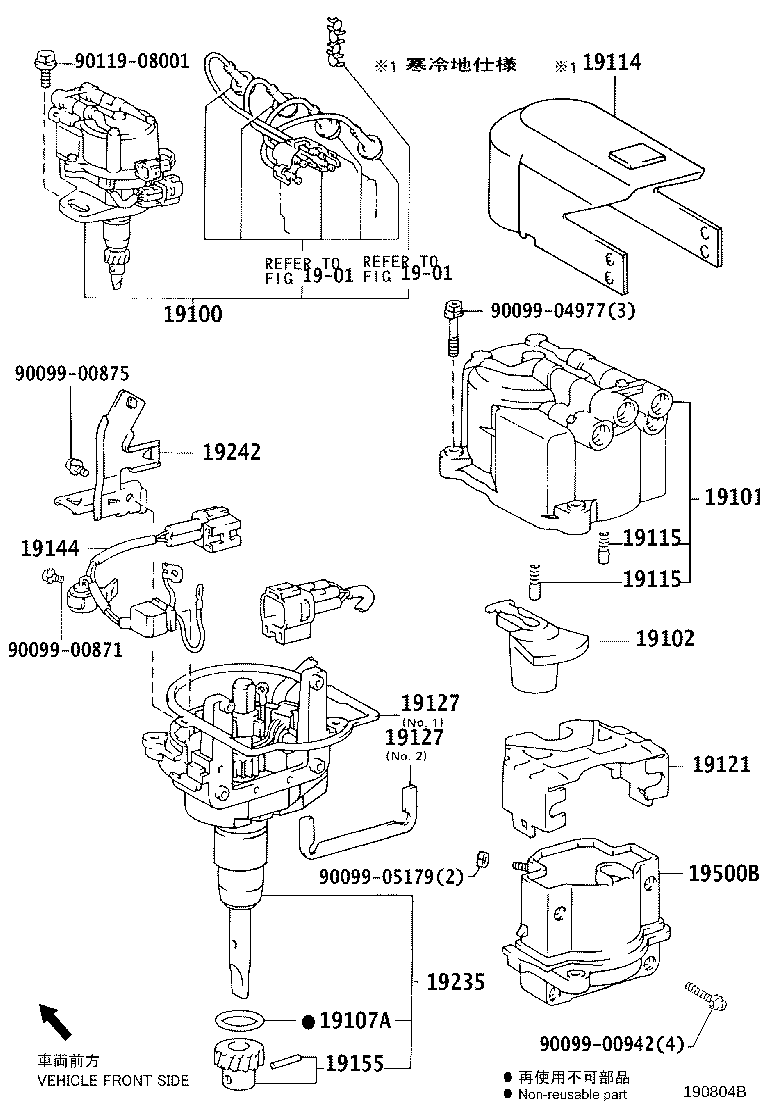

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19040-73052 |
3YPE..YXS1# |
1 | ||
| 19040-73052 |
3YPE..YXS1# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-73030 |
3YPE..YXS1# |
1 | ||
| 19101-73030 |
3YPE..YXS1# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-16040 |
3YPE..YXS1# |
1 | ||
| 19102-73180 |
3YPE..YXS1# |
1 | ||
| 19102-73180 |
3YPE..YXS1# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14090 |
3YPE..YXS1# |
1 | ||
| 90099-14090 |
3YPE..YXS1# |
1 | ||
| 19114 - COVER, WATER PROOF(FOR DISTRIBUTOR) | ||||
| 19114-73010 |
3YPE..YXS1# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 19114-73010 |
3YPE..YXS1# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-72010 |
3YPE..YXS1# |
2 | ||
| 19115-72010 |
3YPE..YXS1# |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-72010 |
3YPE..YXS1# |
2 | ||
| 19115-72010 |
3YPE..YXS1# |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63040 |
3YPE..YXS1# |
1 | ||
| 19121-63040 |
3YPE..YXS1# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63010 |
3YPE..YXS1# NO.1 |
1 | ||
| 19127-63020 |
3YPE..YXS1# NO.2 |
1 | ||
| 19127-63010 |
3YPE..YXS1# NO.1 |
1 | ||
| 19127-63020 |
3YPE..YXS1# NO.2 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63010 |
3YPE..YXS1# NO.1 |
1 | ||
| 19127-63020 |
3YPE..YXS1# NO.2 |
1 | ||
| 19127-63010 |
3YPE..YXS1# NO.1 |
1 | ||
| 19127-63020 |
3YPE..YXS1# NO.2 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-73040 |
3YPE..YXS1# |
1 | ||
| 19144-73040 |
3YPE..YXS1# |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-72090 |
3YPE..YXS1# |
1 | ||
| 19195-72090 |
3YPE..YXS1# |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-73180 |
3YPE..YXS1# |
1 | ||
| 19235-73180 |
3YPE..YXS1# |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-73180 |
3YPE..YXS1# |
1 | ||
| 19242-73180 |
3YPE..YXS1# |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02135 |
3YPE..YXS1# |
1 | ||
| 90919-02135 |
3YPE..YXS1# |
1 | ||
| Common parts | ||||
| 90099-00871 | ||||
| 90099-00875 | ||||
| 90099-00942 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90119-08001 | ||||
| Linked diagrams | ||||
| 1901 | ||||
