YXS10-AEPRN (1995)

Toyota Crown Comfort/Sed

Production Dec 1995 - Aug 2008
Engine 3YPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )3YPE

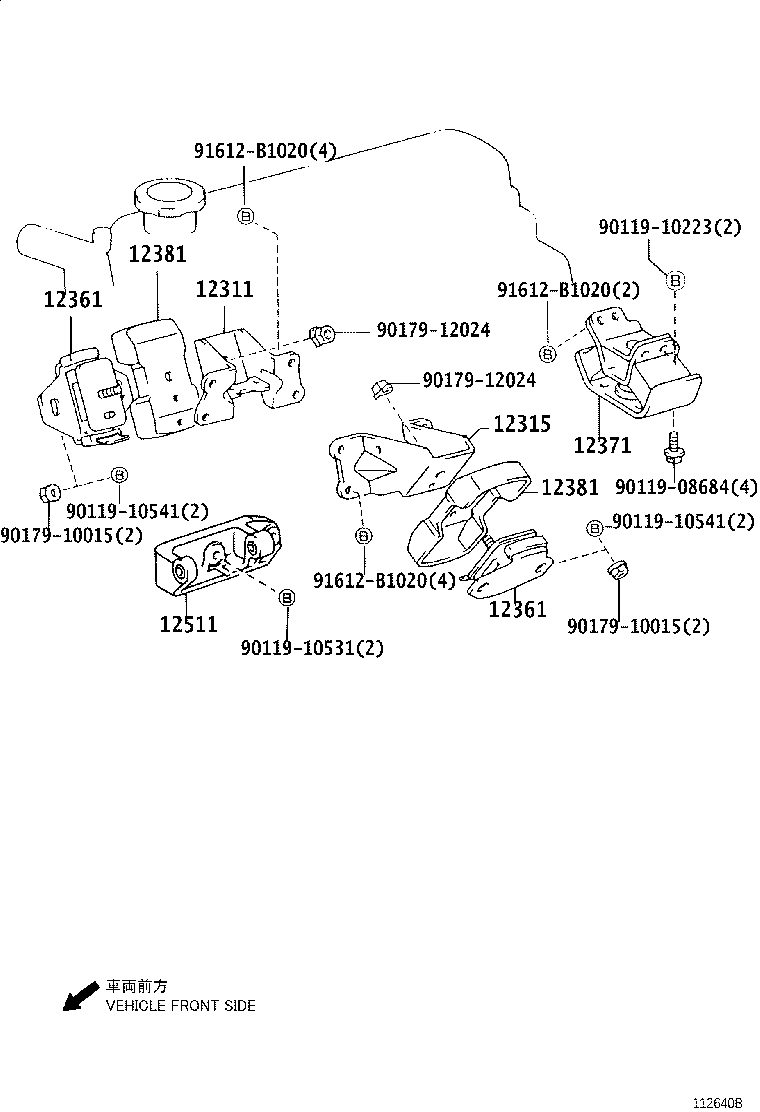

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12511 9011908684 9011910223 9011910531 9011910541 9011910541 9017910015 9017910015 9017912024 9017912024 91612B1020 91612B1020 91612B1020
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

3YPE..YXS1#

 1
12311-71010

3YPE..YXS1#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

3YPE..YXS1#

 1
12315-71010

3YPE..YXS1#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-73050

3YPE..YXS1#

 2
12361-73051

3YPE..YXS1#

 2
12361-73051

3YPE..YXS1#

 2
12361-73052

3YPE..YXS1#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-73050

3YPE..YXS1#

 2
12361-73051

3YPE..YXS1#

 2
12361-73051

3YPE..YXS1#

 2
12361-73052

3YPE..YXS1#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-73010

3YPE..YXS1#

 1
12371-73021

3YPE..YXS1#

 1
12371-73020

3YPE..YXS1#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-71041

3YPE..YXS1#

 2
12381-71041

3YPE..YXS1#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71041

3YPE..YXS1#

 2
12381-71041

3YPE..YXS1#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12501-73020

3YPE..YXS1#

 1
12501-73020

3YPE..YXS1#

 1
Common parts
90119-08684
90119-10223
90119-10531
90119-10541
90179-10015
90179-12024
91612-B1020
