TSS13Y-BEPDK (2007)

Toyota Crown Comfort/Sed

Production Sep 2007 - Jan 2018
Engine 1TRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0709- )TSS11,13..DLX

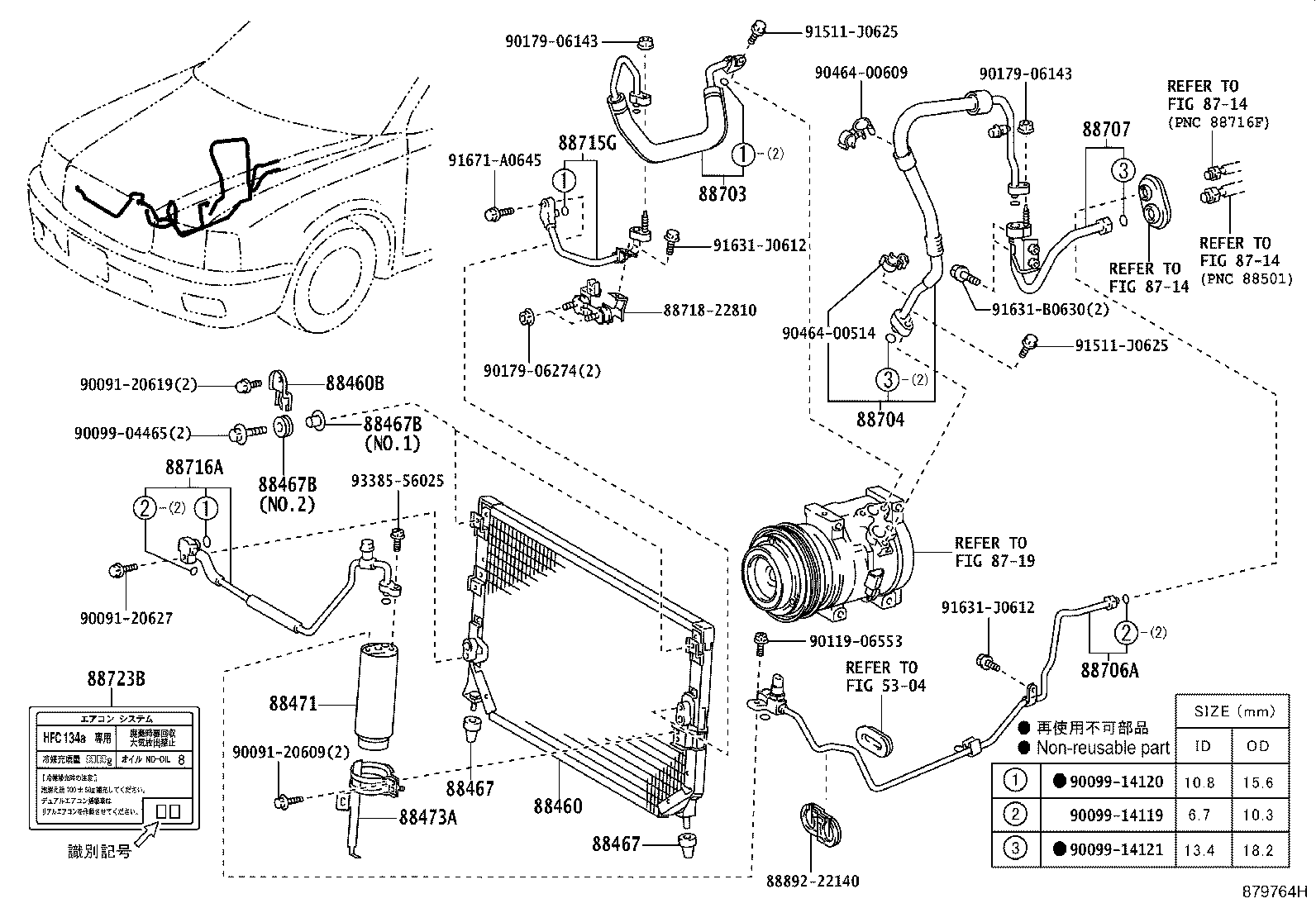

Click highlighted areas on diagram

ﾅｼ(ﾌｭｰｴﾙｸｰﾗ)

diagram 5304 8714 8714 8714 8719 88460 88460B 88467 88467 88467B 88467B 88471 88473A 88703 88704 88706A 88707 88715G 88716A 8871822810 88723B 8889222140 9009120609 9009120619 9009120627 9009904465 9009914119 9009914120 9009914121 9011906553 9017906143 9017906143 9017906274 9046400514 9046400609 91511J0625 91511J0625 91631B0630 91631J0612 91631J0612 91671A0645 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-43010

TSS1#

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-43010

TSS1#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32020

TSS1#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32020

TSS1#

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14050

TSS1#

NO.1

 2
88467-24060

TSS1#

NO.2

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14050

TSS1#

NO.1

 2
88467-24060

TSS1#

NO.2

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-22030

TSS1#

 1
88473A - HOLDER, RECEIVER
88473-43020

TSS1#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-43060

TSS1#

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-43040

TSS1#

 1
88704-43041

TSS1#

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-43110

TSS11,13..DLX

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-43060

TSS11,13..DLX

 1
88715G - TUBE, DISCHARGE, G
88715-43020

TSS1#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-43100

TSS1#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88733-30040

TSS1#

ｲﾗｽﾄｻﾝｼｮｳ & ｼｷﾍﾞﾂ ｷｺﾞｳ=75

 1
88733-30041

TSS1#

ｲﾗｽﾄｻﾝｼｮｳ & ｼｷﾍﾞﾂ ｷｺﾞｳ=00R

 1
Common parts
88718-22810
88892-22140
90091-20609
90091-20619
90091-20627
90099-04465
90099-14119
90099-14120
90099-14121
90119-06553
90179-06143
90179-06274
90464-00514
90464-00609
91511-J0625
91631-B0630
91631-J0612
91671-A0645
93385-56025
Linked diagrams
5304
8714
8719
