TSS13Y-BEPDK (2007)

Toyota Crown Comfort/Sed

Production Sep 2007 - Jan 2018
Engine 1TRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )1TR#

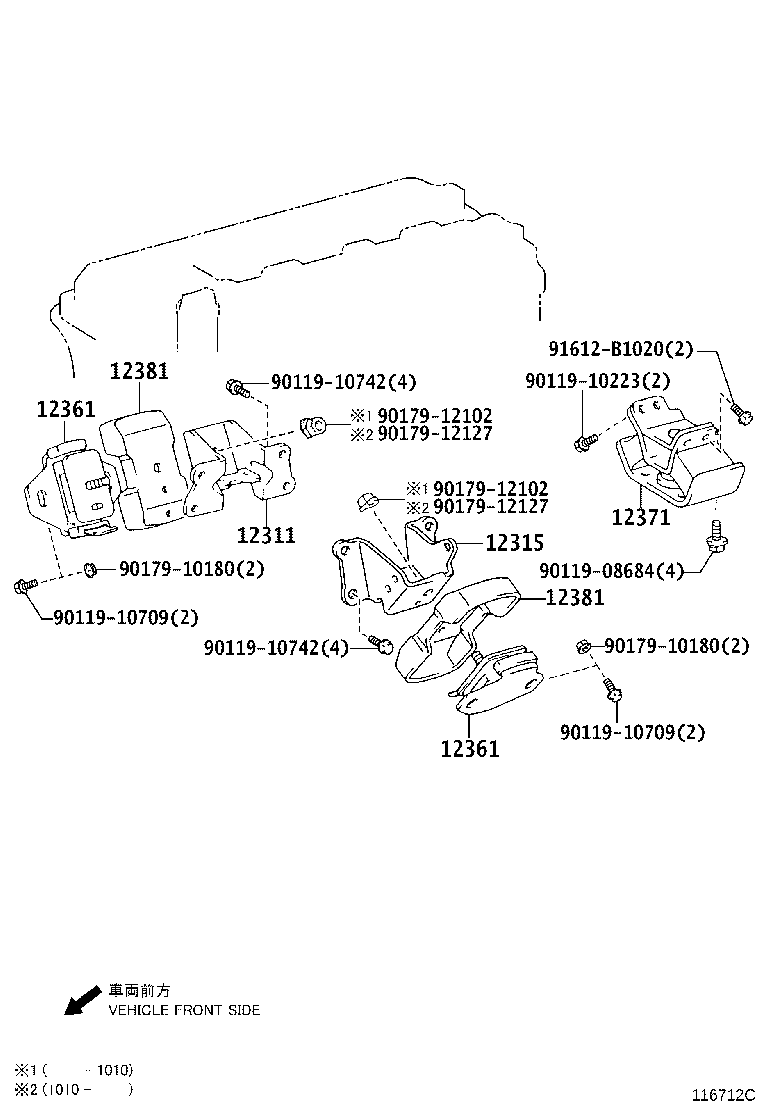

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 9011908684 9011910223 9011910709 9011910709 9011910742 9011910742 9017910180 9017910180 9017912102 9017912102 9017912127 9017912127 91612B1020
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-75130

1TRFE..TSS13

 1
12311-75110

1TR#..TSS1#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-75180

1TR#..TSS1#

 1
12315-75160

1TRFE..TSS13

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-75120

1TRFE..TSS13

 2
12361-75121

1TR#..TSS1#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-75120

1TRFE..TSS13

 2
12361-75121

1TR#..TSS1#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-73021

1TR#..TSS1#

 1
12371-73020

1TRFE..TSS13

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-71041

1TR#..TSS1#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71041

1TR#..TSS1#

 2
Common parts
90119-08684
90119-10223
90119-10709
90119-10742
90179-10180
90179-12102
90179-12127
91612-B1020
