TSS13Y-BEMDK (2007)

Toyota Crown Comfort/Sed

Production Sep 2007 - Jan 2018
Engine 1TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0709- )TSS11,13..DLX

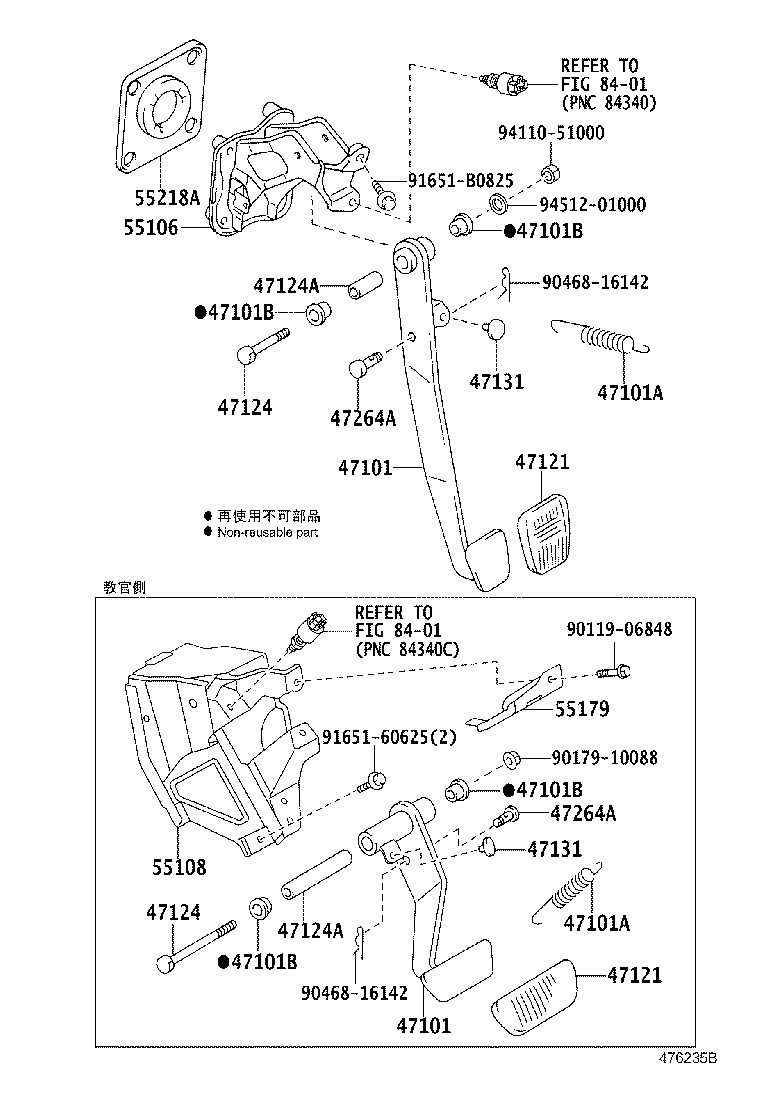

Click highlighted areas on diagram

diagram 47101 47101 47101A 47101A 47101B 47101B 47101B 47101B 47121 47121 47124 47124 47124A 47124A 47131 47131 47264A 47264A 55106 55108 55179 55218A 8401 8401 9011906848 9017910088 9046816142 9046816142 9165160625 91651B0825 9411051000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-43010

TSS11,13..5F..DLX

*41

 1
47101-43040

TSS11,13..DLX

*42

 1
47101 - PEDAL SUB-ASSY, BRAKE
47101-43010

TSS11,13..5F..DLX

*41

 1
47101-43040

TSS11,13..DLX

*42

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-09059

TSS11,13..DLX

*42

 1
90507-13004

TSS11,13..DLX

*41

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-09059

TSS11,13..DLX

*42

 1
90507-13004

TSS11,13..DLX

*41

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

TSS11,13..DLX

*41,*42

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

TSS11,13..DLX

*41,*42

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

TSS11,13..DLX

*41,*42

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

TSS11,13..DLX

*41,*42

 2
47121 - PAD, BRAKE PEDAL
31321-14020

TSS11,13..5F..DLX

*41

 1
47121-50020

TSS11,13..DLX

*42

 1
47121 - PAD, BRAKE PEDAL
31321-14020

TSS11,13..5F..DLX

*41

 1
47121-50020

TSS11,13..DLX

*42

 1
47124 - SHAFT, BRAKE PEDAL
90101-10380

TSS11,13..DLX

*42

 1
90101-10039

TSS11,13..DLX

*41

 1
47124 - SHAFT, BRAKE PEDAL
90101-10380

TSS11,13..DLX

*42

 1
90101-10039

TSS11,13..DLX

*41

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

TSS11,13..DLX

*41

 1
90387-10044

TSS11,13..DLX

*42

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

TSS11,13..DLX

*41

 1
90387-10044

TSS11,13..DLX

*42

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

TSS11,13..DLX

*41,*42

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

TSS11,13..DLX

*41,*42

 1
47264A - PIN(FOR PUSH ROD)
90249-10017

TSS11,13..DLX

*42

 1
90249-10064

TSS11,13..DLX

*41

 1
47264A - PIN(FOR PUSH ROD)
90249-10017

TSS11,13..DLX

*42

 1
90249-10064

TSS11,13..DLX

*41

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-43020

TSS1#

 1
55108 - BRACKET SUB-ASSY, BRAKE PEDAL, NO.3
55108-43020

TSS11,13..DLX

 1
55179 - REINFORCEMENT, BRAKE PEDAL SUPPORT
55179-43030

TSS11,13..DLX

 1
55218A - SEAL, DASH PANEL INSULATOR
55218-22010

TSS1#

 1
Common parts
90119-06848
90179-10088
90468-16142
91651-60625
91651-B0825
94110-51000
94512-01000
Linked diagrams
8401
