Toyota Crown comfort/sed TSS13 FUEL INJECTION SYSTEM

TSS13Y-BEMDK (2007)

Toyota Crown Comfort/Sed

Production Sep 2007 - Jan 2018

Engine 1TRFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0709-1211)1TRFE

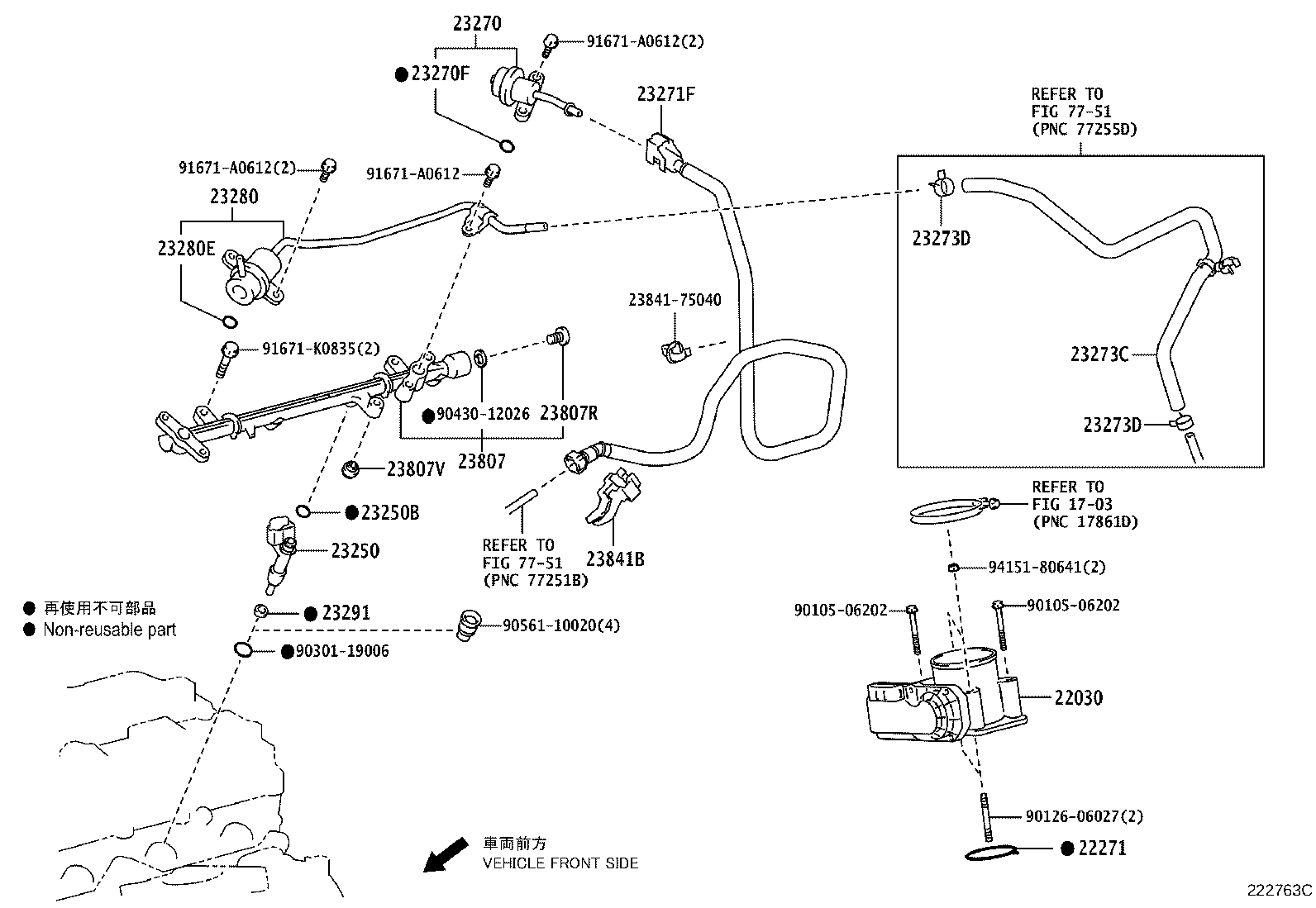

Click highlighted areas on diagram

Part #	Description	Period	Qty
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-75010	1TRFE..TSS13	09/2007 - 12/2999	1
22271 - GASKET, THROTTLE BODY
22271-0C010	1TRFE..TSS13	09/2007 - 08/2011	1
22271-37010	1TRFE..TSS13	08/2011 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23209-79155	1TRFE..TSS13	09/2007 - 03/2012	4
23209-79205	1TRFE..TSS13	03/2012 - 12/2999	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037	1TRFE..TSS13	09/2007 - 12/2999	4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-75010	1TRFE..TSS13	09/2007 - 09/2014	1
23270-75050	1TRFE..TSS13	09/2014 - 12/2999	1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07037	1TRFE..TSS13	09/2007 - 12/2999	1
23271F - HOSE, FUEL
23271-75240	1TRFE..TSS13	09/2007 - 12/2999	1
23273C - HOSE, FUEL, NO.2
23273-75300	1TRFE..TSS13	09/2007 - 12/2999	1
23273D - CLIP(FOR FUEL HOSE NO.2)
96132-51100	1TRFE..TSS13	09/2007 - 12/2999	2
23273D - CLIP(FOR FUEL HOSE NO.2)
96132-51100	1TRFE..TSS13	09/2007 - 12/2999	2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-75040	1TRFE..TSS13	09/2007 - 12/2999	1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07037	1TRFE..TSS13	09/2007 - 12/2999	1
23291 - INSULATOR, INJECTOR VIBRATION
23291-73010	1TRFE..TSS13	09/2007 - 12/2999	4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-75050	1TRFE..TSS13	09/2007 - 09/2014	1
23807-75052	1TRFE..TSS13	10/2014 - 12/2999	1
23807R - PLUG, FUEL DELIVARY PIPE
90341-12030	1TRFE..TSS13	09/2007 - 12/2999	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08036	1TRFE..TSS13	09/2007 - 12/2999	2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-36010	1TRFE..TSS13 ﾅﾁｭﾗﾙ	10/2011 - 12/2999	1
23841-21050	1TRFE..TSS13 ﾌﾞﾗｯｸ	09/2007 - 12/2999	1
Common parts
23841-75040
90105-06202
90126-06027
90301-19006
90430-12026
90561-10020
91671-A0612
91671-K0835
94151-80641
Linked diagrams
1703
7751

(1211- )1TRFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-75010	1TRFE..TSS13	09/2007 - 12/2999	1
22271 - GASKET, THROTTLE BODY
22271-0C010	1TRFE..TSS13	09/2007 - 08/2011	1
22271-37010	1TRFE..TSS13	08/2011 - 12/2999	1
23250 - INJECTOR ASSY, FUEL
23209-79155	1TRFE..TSS13	09/2007 - 03/2012	4
23209-79205	1TRFE..TSS13	03/2012 - 12/2999	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037	1TRFE..TSS13	09/2007 - 12/2999	4
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-75010	1TRFE..TSS13	09/2007 - 09/2014	1
23270-75050	1TRFE..TSS13	09/2014 - 12/2999	1
23270F - RING, O(FOR PULSATION DAMPER)
90301-07037	1TRFE..TSS13	09/2007 - 12/2999	1
23271F - HOSE, FUEL
23271-75240	1TRFE..TSS13	09/2007 - 12/2999	1
23273C - HOSE, FUEL, NO.2
23273-75300	1TRFE..TSS13	09/2007 - 12/2999	1
23273D - CLIP(FOR FUEL HOSE NO.2)
96132-51100	1TRFE..TSS13	09/2007 - 12/2999	2
23273D - CLIP(FOR FUEL HOSE NO.2)
96132-51100	1TRFE..TSS13	09/2007 - 12/2999	2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-75040	1TRFE..TSS13	09/2007 - 12/2999	1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07037	1TRFE..TSS13	09/2007 - 12/2999	1
23291 - INSULATOR, INJECTOR VIBRATION
23291-73010	1TRFE..TSS13	09/2007 - 12/2999	4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-75050	1TRFE..TSS13	09/2007 - 09/2014	1
23807-75052	1TRFE..TSS13	10/2014 - 12/2999	1
23807R - PLUG, FUEL DELIVARY PIPE
90341-12030	1TRFE..TSS13	09/2007 - 12/2999	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
90561-08036	1TRFE..TSS13	09/2007 - 12/2999	2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-36010	1TRFE..TSS13 ﾅﾁｭﾗﾙ	10/2011 - 12/2999	1
23841-21050	1TRFE..TSS13 ﾌﾞﾗｯｸ	09/2007 - 12/2999	1
Common parts
23841-75040
90105-06202
90301-19006
90430-12026
90561-10020
91671-80614
91671-A0612
91671-K0835
Linked diagrams
1703
7751
