TSS11Y-BEMDC (2008)

Toyota Crown Comfort/Sed

Production Aug 2008 - Jan 2018
Engine 1TRFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9512-1206)CRW,KYO,TAX

Click highlighted areas on diagram

diagram 71017A 7104 7104 7104 7104 7104 71075B 71077B 71295A 71296B 71460B 71480B 71611 71650 71651B 72693 72927B 72927B 9011906355
Part # Description Qty Price
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-43050

TSS1#..DLX,SG,STD

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-43012B3

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71075-43170B0

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71075-43111B0

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71075-43120B0

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71075-43171B0

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-43171B0

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71077-43011B3

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71077-43260B1

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71077-43152B1

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71077-43210B1

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DK.GRAY,TRIM1#

 1
71077-43172B1

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71077-43261B1

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71611-43031

TSS1#..DLX,SG,STD

 1
71611-43060

TSS1#..DLX,SG,STD

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-43020

TSS1#..DLX,SG,STD

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-43081

TSS1#..DLX,SG,STD

 1
71651-43041

TSS1#..DLX,SG,STD

 1
71651-43130

TSS1#..DLX,SG,STD

 1
72927B - COVER, REAR SEAT CUSHION UNDER
72927-43010

TSS1#

 2
72927B - COVER, REAR SEAT CUSHION UNDER
72927-43010

TSS1#

 2
Common parts
90119-06355
Linked diagrams
7104

(1206- )DLX,SG,STD

Click highlighted areas on diagram

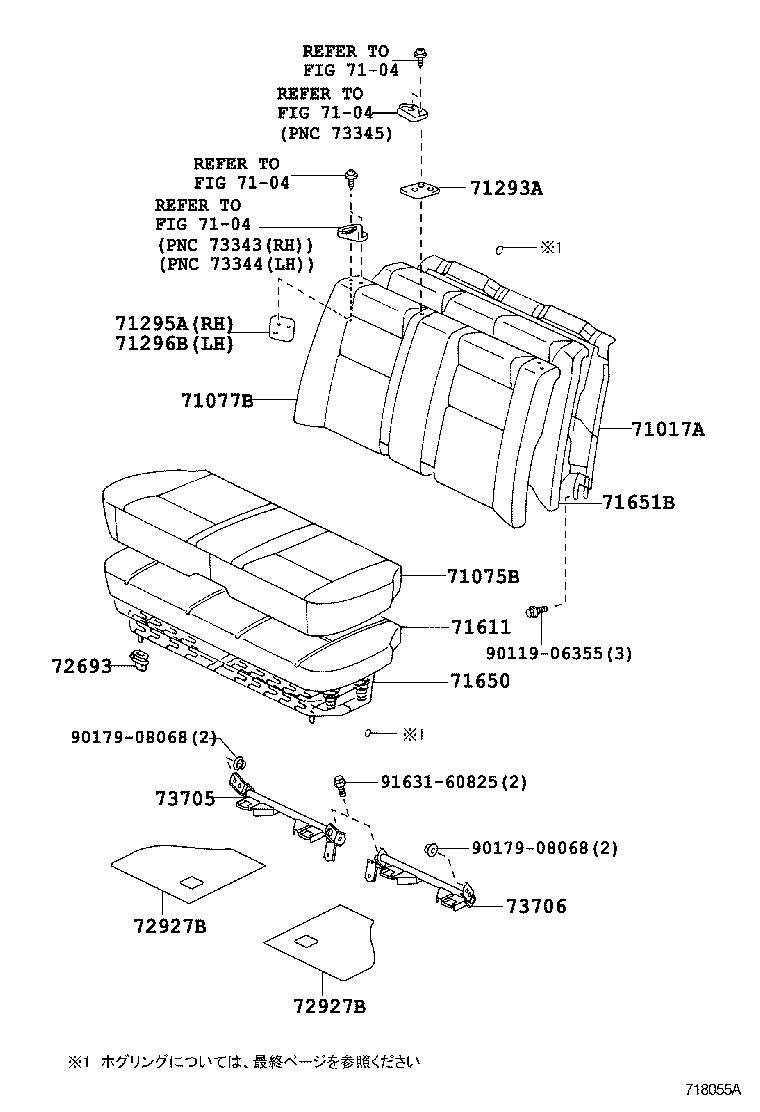

diagram 71017A 7104 7104 7104 7104 71075B 71077B 71293A 71295A 71296B 71611 71650 71651B 72693 72927B 72927B 73705 73706 9011906355 9017908068 9017908068 9163160825
Part # Description Qty Price
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-43050

TSS1#..DLX,SG,STD

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-43012B3

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71075-43170B0

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71075-43111B0

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71075-43120B0

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71075-43171B0

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-43171B0

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71077-43011B3

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71077-43260B1

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71077-43152B1

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71077-43210B1

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DK.GRAY,TRIM1#

 1
71077-43172B1

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71077-43261B1

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71293A - PLATE, REAR SEAT BACK, UPPER
71295-43020

TSS1#

 1
71611 - PAD, REAR SEAT CUSHION
71611-43031

TSS1#..DLX,SG,STD

 1
71611-43060

TSS1#..DLX,SG,STD

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-43020

TSS1#..DLX,SG,STD

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-43081

TSS1#..DLX,SG,STD

 1
71651-43041

TSS1#..DLX,SG,STD

 1
71651-43130

TSS1#..DLX,SG,STD

 1
72927B - COVER, REAR SEAT CUSHION UNDER
72927-43010

TSS1#

 2
72927B - COVER, REAR SEAT CUSHION UNDER
72927-43010

TSS1#

 2
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-43010

TSS1#

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-43010

TSS1#

 1
Common parts
90119-06355
90179-08068
91631-60825
Linked diagrams
7104

(1206- )DLX,SG,STD

Click highlighted areas on diagram

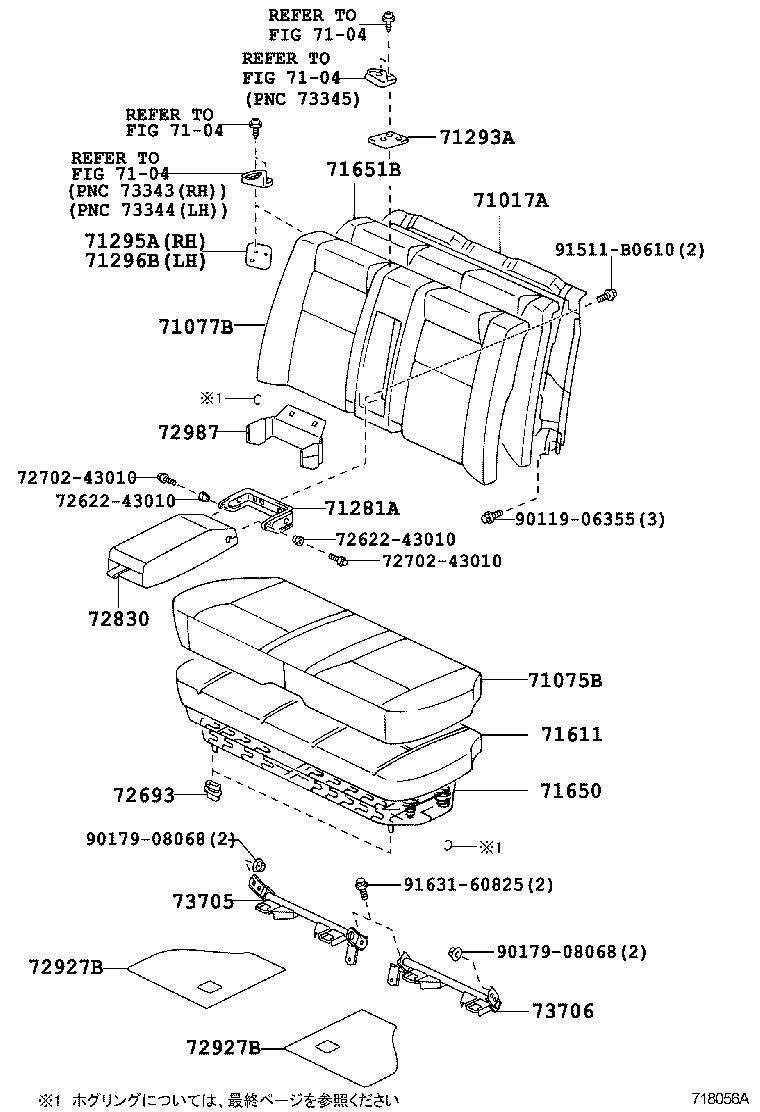

diagram 71017A 7104 7104 7104 7104 71075B 71077B 71281A 71293A 71295A 71296B 71611 71650 71651B 7262243010 7262243010 72693 7270243010 7270243010 72830 72927B 72927B 72987 73705 73706 9011906355 9017908068 9017908068 91511B0610 9163160825
Part # Description Qty Price
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-43050

TSS1#..DLX,SG,STD

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-43012B3

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71075-43170B0

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71075-43111B0

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71075-43120B0

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71075-43171B0

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-43171B0

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71077-43011B3

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71077-43260B1

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71077-43152B1

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DARK GRAY,TRIM1#

 1
71077-43210B1

TSS1#..DLX,STD

ｼ-ﾄ = TYPE B-*104,DK.GRAY,TRIM1#

 1
71077-43172B1

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71077-43261B1

TSS11,13..DLX

ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1#

 1
71293A - PLATE, REAR SEAT BACK, UPPER
71295-43020

TSS1#

 1
71611 - PAD, REAR SEAT CUSHION
71611-43031

TSS1#..DLX,SG,STD

 1
71611-43060

TSS1#..DLX,SG,STD

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-43020

TSS1#..DLX,SG,STD

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-43081

TSS1#..DLX,SG,STD

 1
71651-43041

TSS1#..DLX,SG,STD

 1
71651-43130

TSS1#..DLX,SG,STD

 1
72927B - COVER, REAR SEAT CUSHION UNDER
72927-43010

TSS1#

 2
72927B - COVER, REAR SEAT CUSHION UNDER
72927-43010

TSS1#

 2
73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73705-43010

TSS1#

 1
73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73706-43010

TSS1#

 1
Common parts
72622-43010
72702-43010
90119-06355
90179-08068
91511-B0610
91631-60825
Linked diagrams
7104
