TSS11-BEMRC (2008)
Toyota Crown Comfort/Sed

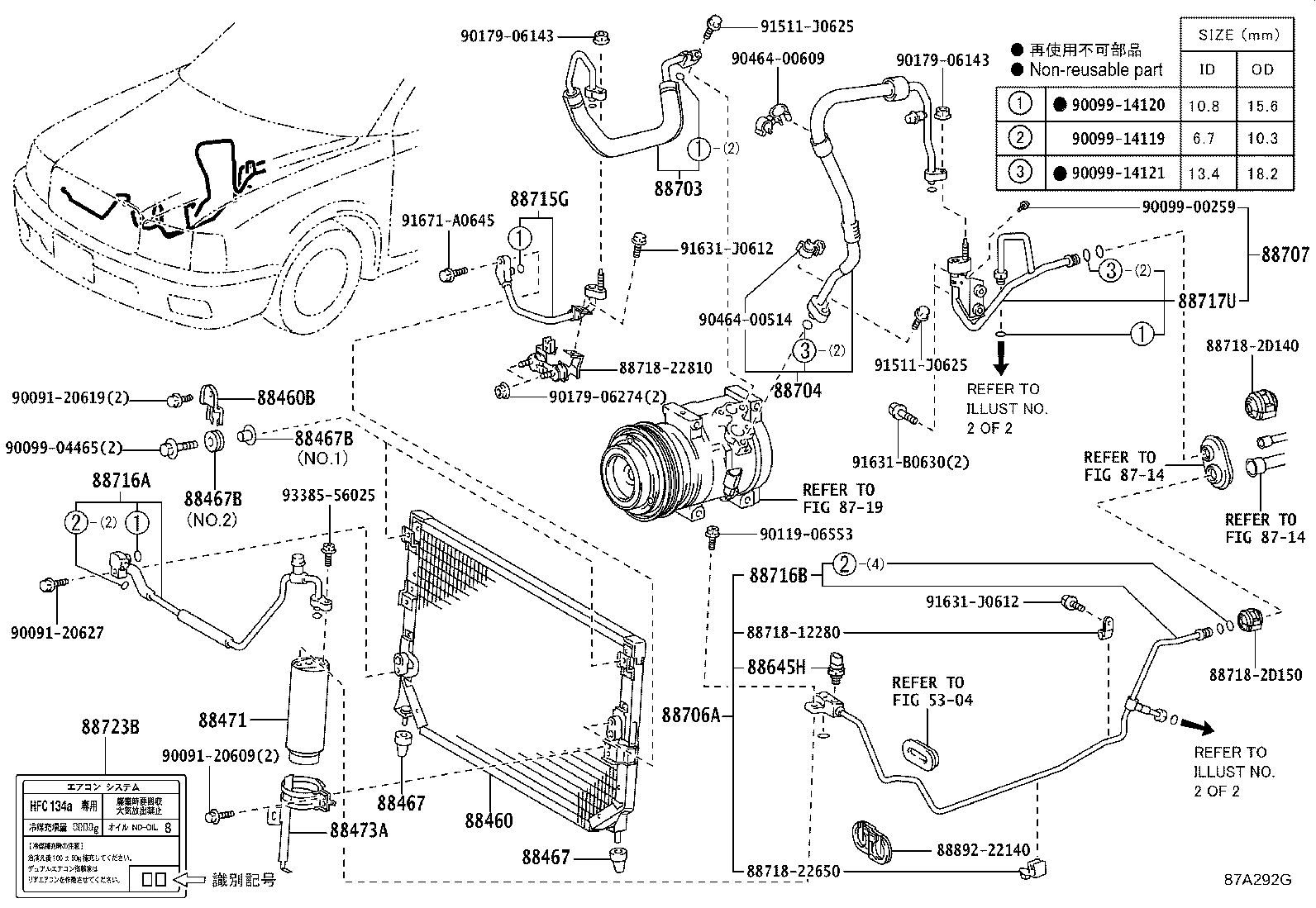

ILLUST NO. 1 OF 2(0808- )CRW,SED,TAX
ﾌﾛﾝﾄ,ｱﾘ(ﾌｭｰｴﾙｸｰﾗ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-22080 |
TSS10,11..CRW,SED,TAX |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-43041 |
TSS1# |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-43060 |
TSS10,11..CRW,SED,TAX ｱﾘ(ﾌｭｰｴﾙ ｸｰﾗ) |
1 | ||
| 88706-43100 |
TSS10,11..CRW,SED,TAX |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-43030 |
TSS10,11..CRW,SED,TAX ｱﾘ(ﾌｭｰｴﾙ ｸｰﾗ) |
1 | ||
| 88707-43050 |
TSS10,11..CRW,SED,TAX |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-43190 |
TSS10,11..CRW,SED,TAX |
1 | ||
| 88717U - TUBE, SUCTION, NO.1 | ||||
| 88717-43080 |
TSS10,11..CRW,SED,TAX ｱﾘ(ﾌｭｰｴﾙ ｸｰﾗ) |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-30051 |
TSS10,11 ｲﾗｽﾄｻﾝｼｮｳ & ｼｷﾍﾞﾂ ｷｺﾞｳ=00S(ｱﾘ(ﾌｭｰｴﾙｸｰﾗ)) |
1 | ||
| 88733-30050 |
TSS10,11..CRW,SED,TAX ｲﾗｽﾄｻﾝｼｮｳ & ｼｷﾍﾞﾂ ｷｺﾞｳ=80(ｱﾘ(ﾌｭｰｴﾙｸｰﾗ)) |
1 | ||
| 88733-30041 |
TSS1# ｲﾗｽﾄｻﾝｼｮｳ & ｼｷﾍﾞﾂ ｷｺﾞｳ=00R |
1 | ||
| Common parts | ||||
| 88718-12280 | ||||
| 88718-22650 | ||||
| 88718-22810 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88892-22140 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90091-20627 | ||||
| 90099-00259 | ||||
| 90099-04465 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06553 | ||||
| 90179-06143 | ||||
| 90179-06274 | ||||
| 90464-00514 | ||||
| 90464-00609 | ||||
| 91511-J0625 | ||||
| 91631-B0630 | ||||
| 91631-J0612 | ||||
| 91671-A0645 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 5304 | ||||
| 8714 | ||||
| 8719 | ||||

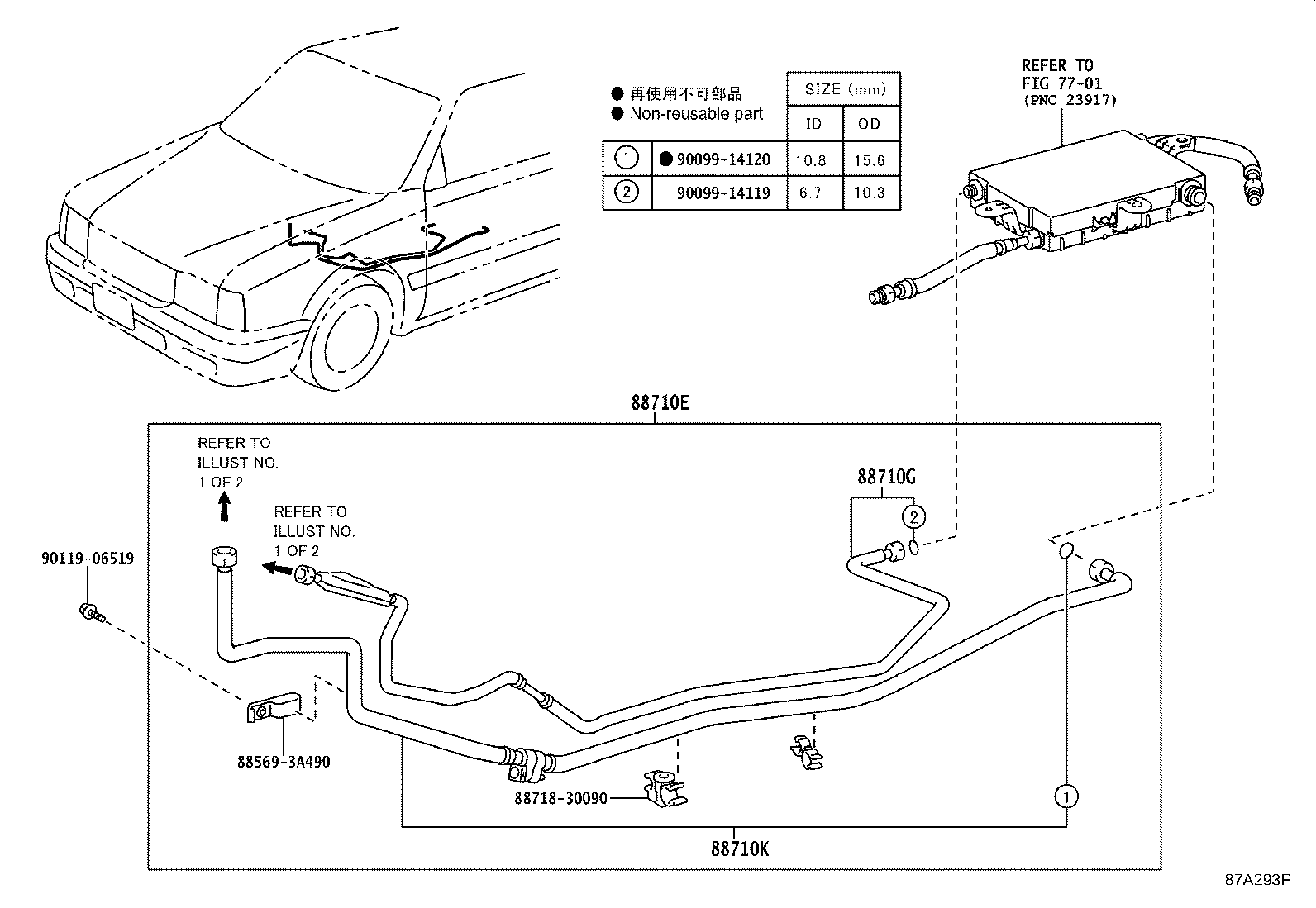

ILLUST NO. 2 OF 2(0808-1310)TSS10,11
ﾌﾛｱ,ｱﾘ(ﾌｭｰｴﾙｸｰﾗ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-43060 |
TSS10,11..CRW,SED,TAX |
1 | ||
| 88710-43110 |
TSS10,11..CRW,SED,TAX |
1 | ||
| 88710-43140 |
TSS10,11..CRW,SED,TAX |
1 | ||
| 88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-43070 |
TSS10,11..CRW,SED,TAX |
1 | ||
| 88710-43130 |
TSS10,11..CRW,SED,TAX |
1 | ||
| 88710K - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3 | ||||
| 88710-43080 |
TSS10,11..CRW,SED,TAX |
1 | ||
| Common parts | ||||
| 88569-3A490 | ||||
| 88718-30090 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90119-06519 | ||||
| Linked diagrams | ||||
| 7701 | ||||

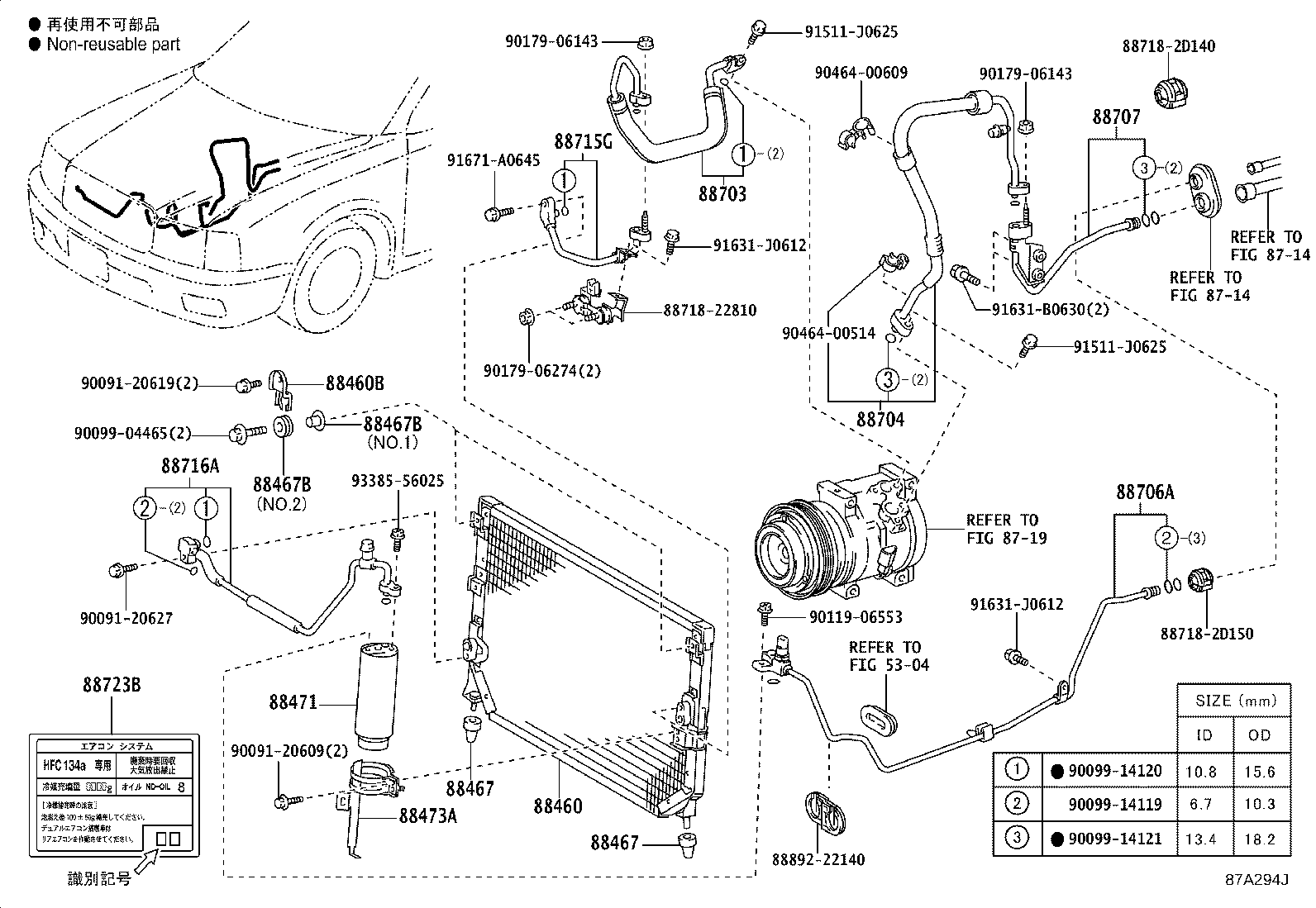

ILLUST NO. 1 OF 2(0808- )CRW,SED,TAX
ﾌﾛﾝﾄ,ﾅｼ(ﾌｭｰｴﾙｸｰﾗ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-43041 |
TSS1# |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-43060 |
TSS10,11..CRW,SED,TAX ｱﾘ(ﾌｭｰｴﾙ ｸｰﾗ) |
1 | ||
| 88706-43100 |
TSS10,11..CRW,SED,TAX |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-43030 |
TSS10,11..CRW,SED,TAX ｱﾘ(ﾌｭｰｴﾙ ｸｰﾗ) |
1 | ||
| 88707-43050 |
TSS10,11..CRW,SED,TAX |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-30051 |
TSS10,11 ｲﾗｽﾄｻﾝｼｮｳ & ｼｷﾍﾞﾂ ｷｺﾞｳ=00S(ｱﾘ(ﾌｭｰｴﾙｸｰﾗ)) |
1 | ||
| 88733-30050 |
TSS10,11..CRW,SED,TAX ｲﾗｽﾄｻﾝｼｮｳ & ｼｷﾍﾞﾂ ｷｺﾞｳ=80(ｱﾘ(ﾌｭｰｴﾙｸｰﾗ)) |
1 | ||
| 88733-30041 |
TSS1# ｲﾗｽﾄｻﾝｼｮｳ & ｼｷﾍﾞﾂ ｷｺﾞｳ=00R |
1 | ||
| Common parts | ||||
| 88718-22810 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88892-22140 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90091-20627 | ||||
| 90099-04465 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06553 | ||||
| 90179-06143 | ||||
| 90179-06274 | ||||
| 90464-00514 | ||||
| 90464-00609 | ||||
| 91511-J0625 | ||||
| 91631-B0630 | ||||
| 91631-J0612 | ||||
| 91671-A0645 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 5304 | ||||
| 8714 | ||||
| 8719 | ||||

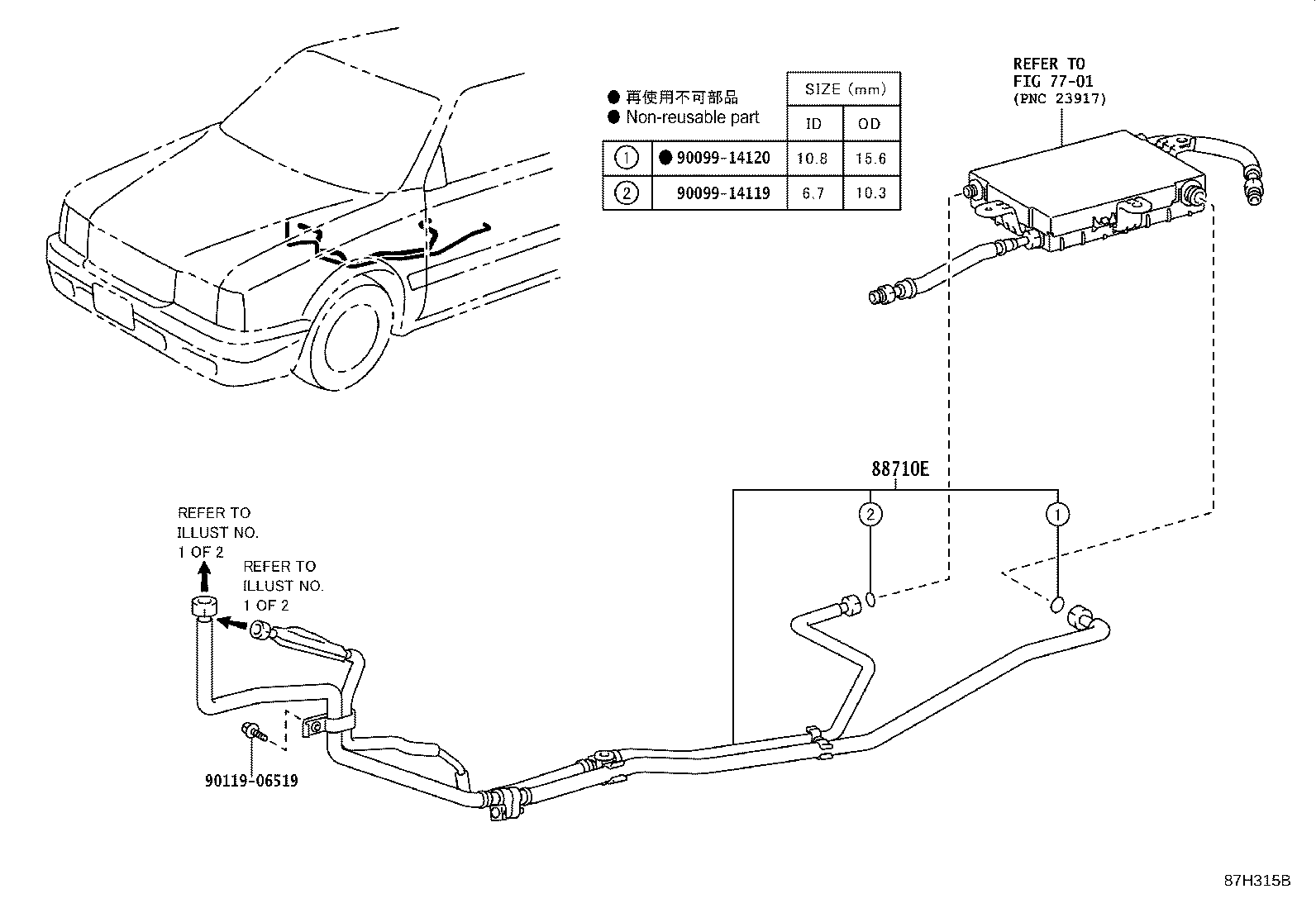

ILLUST NO. 2 OF 2(1310- )TSS10,11
ﾌﾛｱ,ｱﾘ(ﾌｭｰｴﾙｸｰﾗ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-43060 |
TSS10,11..CRW,SED,TAX |
1 | ||
| 88710-43110 |
TSS10,11..CRW,SED,TAX |
1 | ||
| 88710-43140 |
TSS10,11..CRW,SED,TAX |
1 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90119-06519 | ||||
| Linked diagrams | ||||
| 7701 | ||||
