TSS11-BEMRC (2008)

Toyota Crown Comfort/Sed

Production Aug 2008 - Jan 2018
Engine 1TRFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )1TRFPE

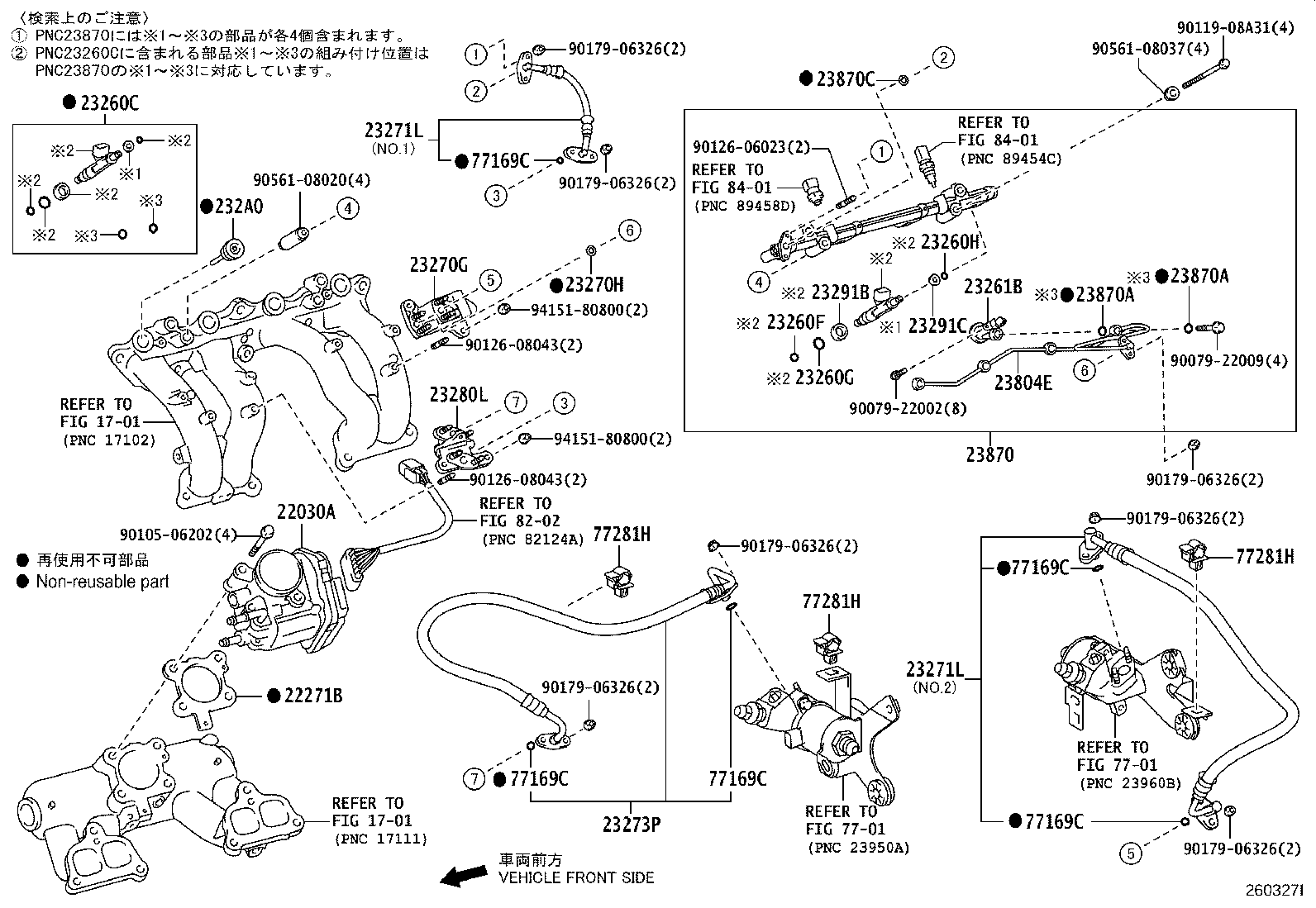

Click highlighted areas on diagram

diagram 1701 1701 22030A 22271B 23260C 23260F 23260G 23260H 23261B 23270G 23270H 23271L 23271L 23273P 23280L 23291B 23291C 232A0 23804E 23870 23870A 23870A 23870C 7701 7701 77169C 77169C 77169C 77169C 77169C 77281H 77281H 77281H 8202 8401 8401 9007922002 9007922009 9010506202 9011908A31 9012606023 9012608043 9012608043 9017906326 9017906326 9017906326 9017906326 9017906326 9017906326 9017906326 9056108020 9056108037 9415180800 9415180800
Part # Description Qty Price
22030A - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-75030

1TRFPE..TSS10,11

 1
22030-75032

1TRFPE..TSS10,11

 1
22030-75033

1TRFPE..TSS10,11

 1
22030-75031

1TRFPE..TSS10,11

 1
22271B - GASKET, THROTTLE BODY
22271-75050

1TRFPE..TSS10,11

 1
23260C - INJECTOR ASSY, LPG OR CNG
23260-79225

1TRFPE..TSS10,11

 4
23260F - RING, O(FOR LPG OR CNG INJECTOR NO.1)
90079-60031

1TRFPE..TSS10,11

 4
23260G - RING, O(FOR LPG OR CNG INJECTOR NO.2)
90079-60032

1TRFPE..TSS10,11

 4
23260H - RING, O(FOR LPG OR CNG INJECTOR NO.3)
90079-60033

1TRFPE..TSS10,11

 4
23261B - COVER, INJECTOR
23261-75030

1TRFPE..TSS10,11

 4
23270G - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-75032

1TRFPE..TSS10,11

 1
23270-75031

1TRFPE..TSS10,11

 1
23270H - RING, O(FOR FUEL PRESSURE PULSATION DAMPER)
90301-08023

1TRFPE..TSS10,11

 1
23271L - HOSE, FUEL
23271-75251

1TRFPE..TSS10,11

NO.1

 1
23271-75261

1TRFPE..TSS10,11

NO.2

 1
23271L - HOSE, FUEL
23271-75251

1TRFPE..TSS10,11

NO.1

 1
23271-75261

1TRFPE..TSS10,11

NO.2

 1
23273P - HOSE, FUEL, NO.2
23273-75311

1TRFPE..TSS10,11

 1
23280L - REGULATOR ASSY, FUEL PRESSURE
23280-75071

1TRFPE..TSS10,11

 1
23291B - INSULATOR, INJECTOR VIBRATION
23291-75040

1TRFPE..TSS10,11

 4
23291C - INSULATOR, INJECTOR VIBRATION, NO.2
23291-75030

1TRFPE..TSS10,11

 4
232A0 - INSULATOR ASSY, FUEL INJECTOR
232A0-75010

1TRFPE..TSS10,11

 4
23804E - PIPE SUB-ASSY, FUEL INLET
23804-75010

1TRFPE..TSS10,11

 1
23870 - PIPE ASSY, FUEL DELIVERY W/LPG INJECTOR
23870-75012

1TRFPE..TSS10,11

 1
23870A - RING, O(FOR FUEL DELIVERY PIPE NO.1)
90079-60030

1TRFPE..TSS10,11

 8
23870A - RING, O(FOR FUEL DELIVERY PIPE NO.1)
90079-60030

1TRFPE..TSS10,11

 8
23870C - RING, O(FOR FUEL DELIVERY PIPE NO.3)
90301-08023

1TRFPE..TSS10,11

 1
77169C - GASKET, FUEL SUCTION TUBE SET
77169-25010

TSS10,11

 5
77169C - GASKET, FUEL SUCTION TUBE SET
77169-25010

TSS10,11

 5
77169C - GASKET, FUEL SUCTION TUBE SET
77169-25010

TSS10,11

 5
77169C - GASKET, FUEL SUCTION TUBE SET
77169-25010

TSS10,11

 5
77169C - GASKET, FUEL SUCTION TUBE SET
77169-25010

TSS10,11

 5
77281H - CLAMP, FUEL HOSE, NO.1
90929-01448

TSS10,11

 3
77281H - CLAMP, FUEL HOSE, NO.1
90929-01448

TSS10,11

 3
77281H - CLAMP, FUEL HOSE, NO.1
90929-01448

TSS10,11

 3
Common parts
90079-22002
90079-22009
90105-06202
90119-08A31
90126-06023
90126-08043
90179-06326
90561-08020
90561-08037
94151-80800
Linked diagrams
1701
7701
8202
8401
