TSS10-CEPFC (2008)

Toyota Crown Comfort/Sed

Production Aug 2008 - Jan 2018
Engine 1TRFPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9512-1206)

Click highlighted areas on diagram

ﾘﾔｼｰﾄﾍﾞﾙﾄ

diagram 7102 7102 72895 72895 73219 73223 73223 73343 73344 73360 73370 73380 73381 73381 73390 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9015940241 9015940241 9016140026 9016140026
Part # Description Qty Price
73223 - COVER, SEAT BELT RETRACTOR
73223-43010

TSS1#

 2
73223 - COVER, SEAT BELT RETRACTOR
73223-43010

TSS1#

 2
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-43010B0

TSS1#

DK.GRAY,TRIM1#

 1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-43010B0

TSS1#

DK.GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-43061C0

TSS1#

BLACK,TRIM1#

 1
73360-43070C0

TSS1#

BLACK,TRIM1#

 1
73360-43052C0

TSS1#

BLACK,TRIM1#

 1
73360-43052C1

TSS1#

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-43061C0

TSS1#

BLACK,TRIM1#

 1
73360-43070C0

TSS1#

BLACK,TRIM1#

 1
73360-43052C1

TSS1#

BLACK,TRIM1#

 1
73360-43052C0

TSS1#

BLACK,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-43070C0

TSS1#

BLACK,TRIM1#

 1
73470-43052C1

TSS1#

BLACK,TRIM1#

 1
73470-43053C2

TSS1#

BLACK,TRIM1#

 1
73470-43051C0

TSS1#

BLACK,TRIM1#

 1
73470-43053C1

TSS1#

BLACK,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-43033C1

TSS1#

BLACK,TRIM1#

 1
73480-43031C0

TSS1#

BLACK,TRIM1#

 1
73480-43032C1

TSS1#

BLACK,TRIM1#

 1
73480-43033C2

TSS1#

BLACK,TRIM1#

 1
73480-43040C0

TSS1#

BLACK,TRIM1#

 1
Common parts
90105-11036
90159-40241
90161-40026
Linked diagrams
7102

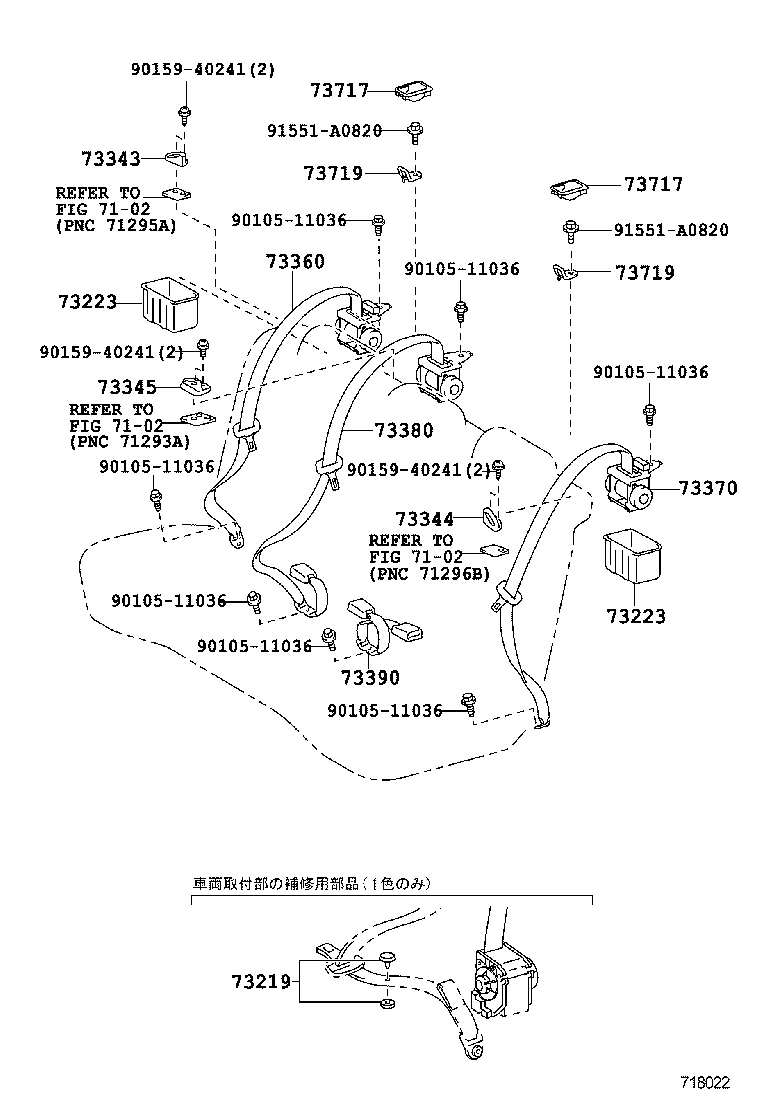

ILLUST NO. 2 OF 2(1206- )

Click highlighted areas on diagram

ﾘﾔｼｰﾄ

diagram 7102 7102 7102 73219 73223 73223 73343 73344 73345 73360 73370 73380 73390 73717 73717 73719 73719 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9015940241 9015940241 9015940241 91551A0820 91551A0820
Part # Description Qty Price
73223 - COVER, SEAT BELT RETRACTOR
73223-43010

TSS1#

 2
73223 - COVER, SEAT BELT RETRACTOR
73223-43010

TSS1#

 2
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-43010B0

TSS1#

DK.GRAY,TRIM1#

 1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-43010B0

TSS1#

DK.GRAY,TRIM1#

 1
73345 - GUIDE, REAR SEAT SHOULDER BELT, CENTER
73343-33010B0

TSS1#

DK.GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-43061C0

TSS1#

BLACK,TRIM1#

 1
73360-43070C0

TSS1#

BLACK,TRIM1#

 1
73360-43052C0

TSS1#

BLACK,TRIM1#

 1
73360-43052C1

TSS1#

BLACK,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-43061C0

TSS1#

BLACK,TRIM1#

 1
73360-43070C0

TSS1#

BLACK,TRIM1#

 1
73360-43052C1

TSS1#

BLACK,TRIM1#

 1
73360-43052C0

TSS1#

BLACK,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73470-43070C0

TSS1#

BLACK,TRIM1#

 1
73470-43052C1

TSS1#

BLACK,TRIM1#

 1
73470-43053C2

TSS1#

BLACK,TRIM1#

 1
73470-43051C0

TSS1#

BLACK,TRIM1#

 1
73470-43053C1

TSS1#

BLACK,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-43033C1

TSS1#

BLACK,TRIM1#

 1
73480-43031C0

TSS1#

BLACK,TRIM1#

 1
73480-43032C1

TSS1#

BLACK,TRIM1#

 1
73480-43033C2

TSS1#

BLACK,TRIM1#

 1
73480-43040C0

TSS1#

BLACK,TRIM1#

 1
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-50020B2

TSS1#

DK.GRAY,TRIM1#

 2
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-50020B2

TSS1#

DK.GRAY,TRIM1#

 2
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-33030

TSS1#

 2
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-33030

TSS1#

 2
Common parts
90105-11036
90159-40241
91551-A0820
Linked diagrams
7102
