TSS10-CEPFC (2008)
Toyota Crown Comfort/Sed
(1206- )SED

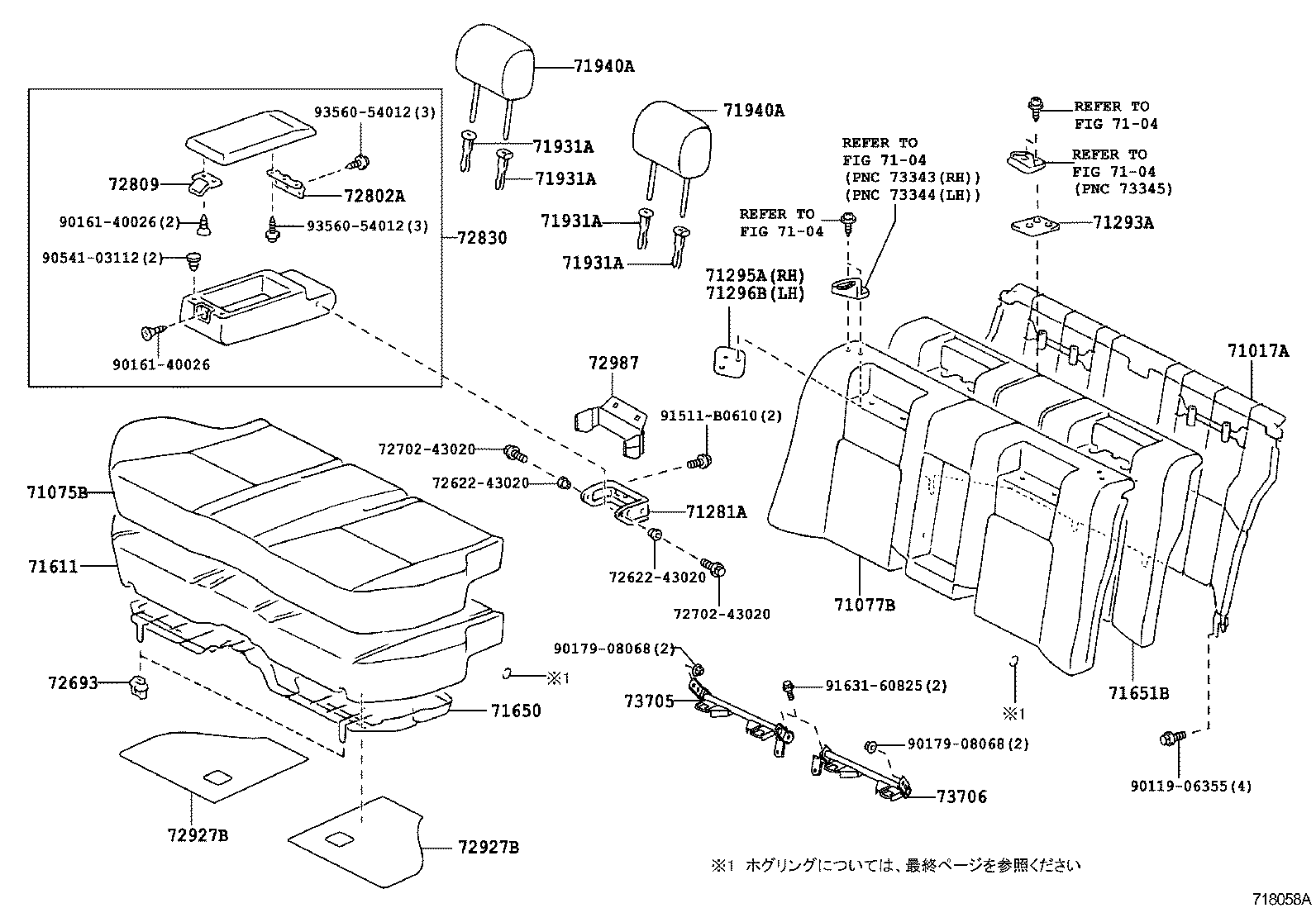

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-43040 |
TSS10..SED |
1 | ||
| 71017-43030 |
TSS10,11..(CRW,SED,TAX)..(DLX,SDX,STD) ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ) |
1 | ||
| 71017-43060 |
TSS10..SED ｱﾘ(ｾﾝﾀ-ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-43091B0 |
TSS10..SDX ｼ-ﾄ = TYPE D-*104 & ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71075-43071B0 |
TSS10..SED ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71075-43061B1 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71075-43160B0 |
TSS10..SED ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71075-43081B2 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104 & ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71075-43161B0 |
TSS10..SED ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71075-43151B0 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71075-43150B0 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-43101B1 |
TSS10..SED ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077-43091B1 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077-43121B0 |
TSS10..SDX ｼ-ﾄ = TYPE D-*104 & ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71077-43112B2 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104 & ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71077-43102B1 |
TSS10..SED ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077-43111B2 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104 & ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71077-43122B0 |
TSS10..SDX ｼ-ﾄ = TYPE D-*104 & ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71077-43103B1 |
TSS10..SED ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077-43250B1 |
TSS10..SED ｼ-ﾄ = TYPE D-*104 & ｱﾘ(ｱ-ﾑﾚｽﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71077-43092B1 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077-43240B1 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ｾﾝﾀ-ｱ-ﾑﾚｽﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71077-43093B1 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71077-43251B1 |
TSS10..SED ｼ-ﾄ = TYPE D-*104 & ｱﾘ(ｱ-ﾑﾚｽﾄ),DK.GRAY,TRIM1# |
1 | ||
| 71077-43241B1 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-43010 |
TSS10,11..SAL,SDX,SG |
1 | ||
| 71293A - PLATE, REAR SEAT BACK, UPPER | ||||
| 71295-43020 |
TSS1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-43051 |
TSS10..SDX ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ) |
1 | ||
| 71611-43041 |
TSS10..SED |
1 | ||
| 71611-43070 |
TSS10..SED |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71015-43050 |
TSS10..SED |
1 | ||
| 71015-43030 |
TSS10..SED |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-43140 |
TSS10..SED ｱﾘ(ｾﾝﾀ-ｱ-ﾑﾚｽﾄ) |
1 | ||
| 71651-43071 |
TSS10..SDX ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ) |
1 | ||
| 71651-43061 |
TSS10..SED |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040S7 |
TSS10..SED ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-13030B7 |
TSS10..SED ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040S7 |
TSS10..SED ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-13030B7 |
TSS10..SED ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040S7 |
TSS10..SED ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-13030B7 |
TSS10..SED ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-12040S7 |
TSS10..SED ﾛｯｸ無,DK.GRAY,TRIM1# |
2 | ||
| 71930-13030B7 |
TSS10..SED ﾛｯｸ付,DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-43010B1 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-43020B0 |
TSS10..SED ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-43030B0 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-43040B0 |
TSS10..SED ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-43031B0 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-43010B1 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-43020B0 |
TSS10..SED ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-43030B0 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-43040B0 |
TSS10..SED ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
2 | ||
| 71940-43031B0 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-43011 |
TSS10..SDX ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ) |
1 | ||
| 72802A - HINGE SUB-ASSY, ARMREST CONSOLE | ||||
| 72802-50020 |
TSS10..SED |
1 | ||
| 72809 - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-50020B6 |
TSS10..SED DK.GRAY,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-43040B0 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 72830-43040B1 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 72830-43050B1 |
TSS10..SED ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 72830-43060B1 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104 & ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 72830-43050B0 |
TSS10..SED ｼ-ﾄ = TYPE D-*104,DK.GRAY,TRIM1# |
1 | ||
| 72830-43041B0 |
TSS10..SDX ｼ-ﾄ = TYPE A-*104,DK.GRAY,TRIM1# |
1 | ||
| 72830-43070B0 |
TSS10..SDX ｼ-ﾄ = TYPE D-*104 & ｳｴﾙｷﾔﾌﾞ(ｺｳｾｷ ｶｲﾃﾝ ｼ-ﾄ),DK.GRAY,TRIM1# |
1 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-43010 |
TSS1# |
2 | ||
| 72927B - COVER, REAR SEAT CUSHION UNDER | ||||
| 72927-43010 |
TSS1# |
2 | ||
| 72987 - COVER, REAR SEAT CENTER ARMREST | ||||
| 72987-43020 |
TSS10..SDX |
1 | ||
| 72987-43030 |
TSS10..SDX G ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-43010 |
TSS1# |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-43010 |
TSS1# |
1 | ||
| Common parts | ||||
| 72622-43020 | ||||
| 72702-43020 | ||||
| 90119-06355 | ||||
| 90161-40026 | ||||
| 90179-08068 | ||||
| 90541-03112 | ||||
| 91511-B0610 | ||||
| 91631-60825 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
