TSS10-CEPFC (2008)

Toyota Crown Comfort/Sed

Production Aug 2008 - Jan 2018
Engine 1TRFPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )CRW,SED,TAX..4FC

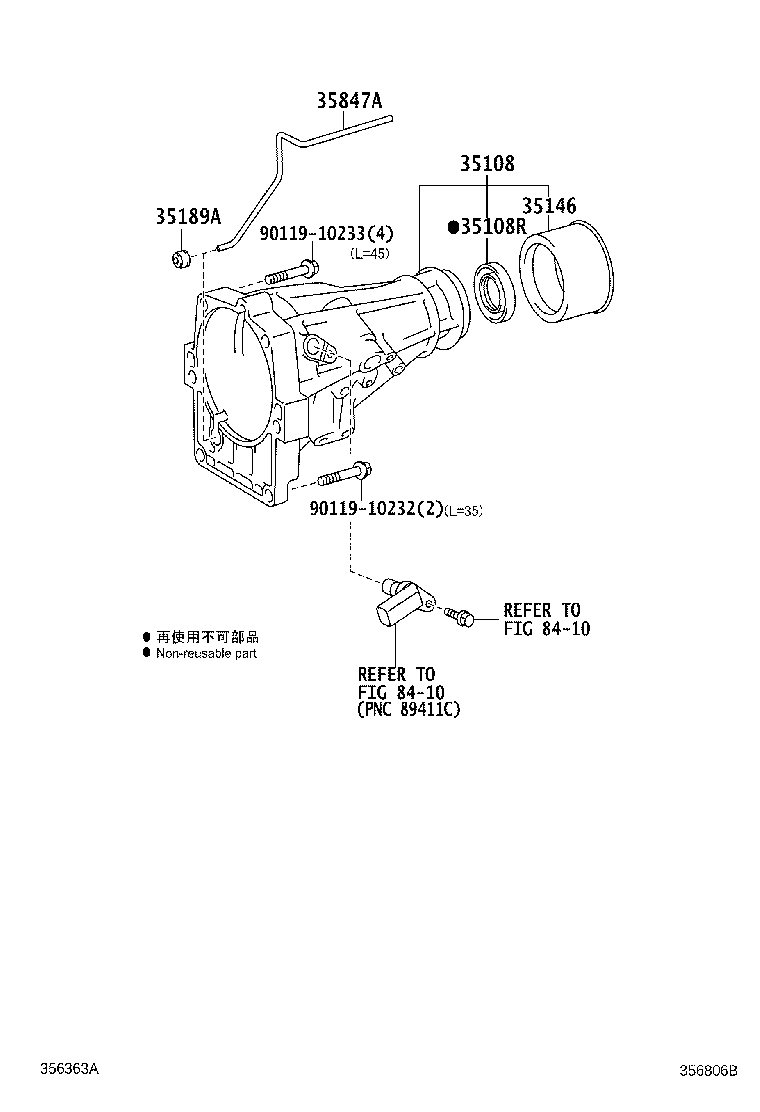

Click highlighted areas on diagram

A340E

diagram 35108 35108R 35146 35189A 35847A 8410 8410 9011910232 9011910233
Part # Description Qty Price
35108 - HOUSING SUB-ASSY, EXTENSION (ATM)
35180-43010

TSS10,11..(CRW,SED,TAX)..4FC

 1
35108R - SEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING
90311-40045

TSS1#..4FC

 1
90311-40034

TSS1#..4FC

 1
Common parts
90119-10232
90119-10233
Linked diagrams
8410
