TSS10-AEPDC (2008)

Toyota Crown Comfort/Sed

Production Aug 2008 - Jan 2018
Engine 1TRFPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

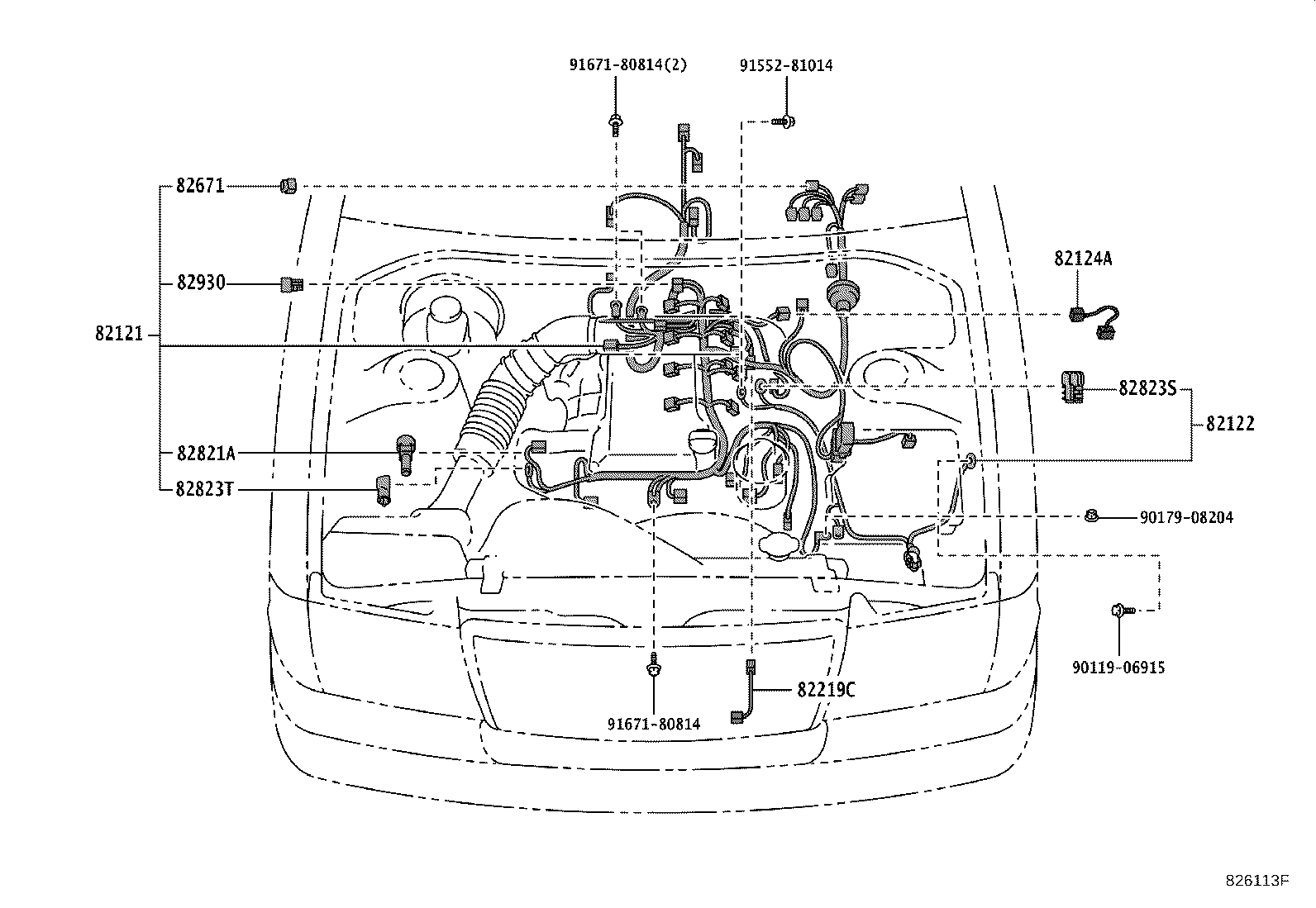

ILLUST NO. 2 OF10(0808- )TSS10,11

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ

diagram 82121 82122 82124A 82219C 82671 82821A 82823S 82823T 82930 9011906915 9017908204 9155281014 9167180814 9167180814
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-43160

TSS10,11..(CRW,SED,TAX)..4FC

 1
82121-43162

TSS10,11..4FC

 1
82121-43161

TSS10,11..(CRW,SED,TAX)..4FC

 1
82122 - WIRE, ENGINE, NO.2
82122-43091

TSS1#

 1
82124A - WIRE, ENGINE, NO.5
82124-43011

TSS10,11

 1
82219C - WIRE, SENSOR
82219-26190

TSS1#

 1
82671 - BLOCK, JUNCTION
82671-30340

TSS10,11

 1
82930 - CONDENSER ASSY, WIRING HARNESS, NO.1
90980-04083

TSS10,11

 1
Common parts
90119-06915
90179-08204
91552-81014
91671-80814
