SXS13Y-BEPDK (2001)
Toyota Crown Comfort/Sed
Production
Aug 2001
-
Jul 2007
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0108- )SXS13,YXS11..DLX ; (0709- )TSS13 ;(0808- )TSS11..DLX

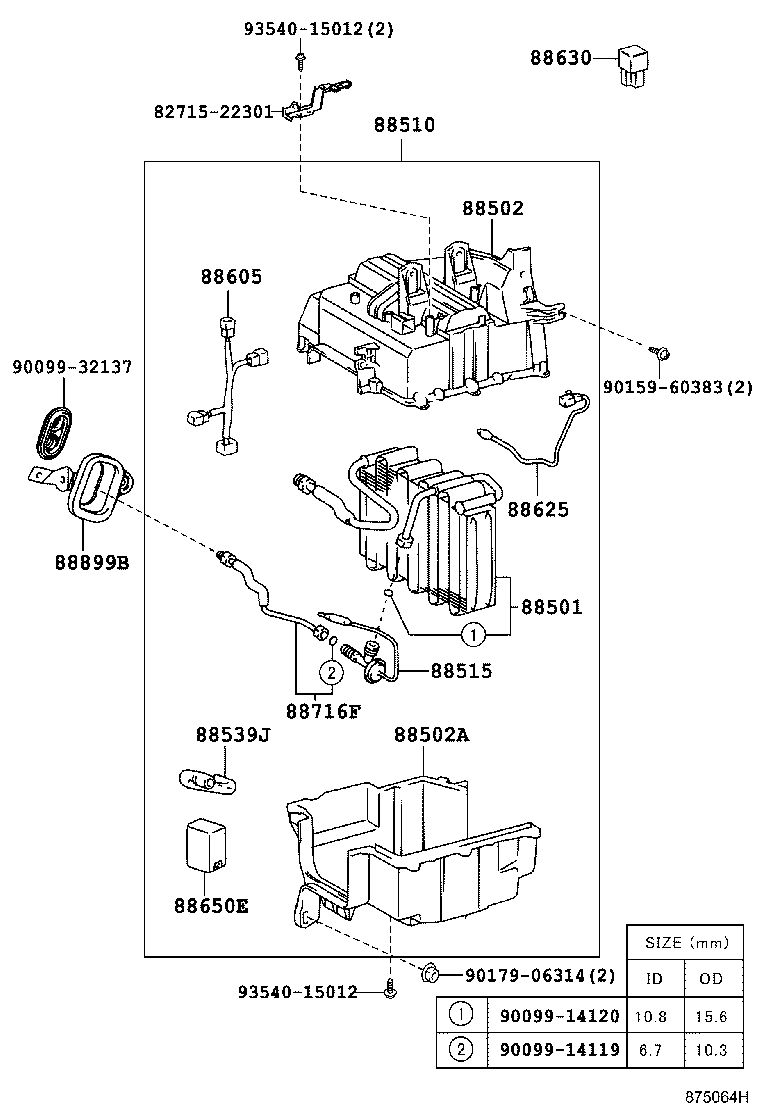

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-43030 |
SXS13 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-22180 |
SXS13 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-22170 |
SXS13 |
1 | ||
| 88539-22171 |
SXS13 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-20460 |
SXS13 |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-43030 |
SXS13 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-43060 |
SXS13 |
1 | ||
| 88899B - COVER, COOLER CONTROL | ||||
| 88899-43020 |
SXS13 ﾒ-ｶ- ｵﾌﾟｼﾖﾝ |
1 | ||
| Common parts | ||||
| 82715-22301 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-32137 | ||||
| 90159-60383 | ||||
| 90179-06314 | ||||
| 93540-15012 | ||||
