SXS13Y-BEPDK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Jul 2007
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108-0707)3SFE

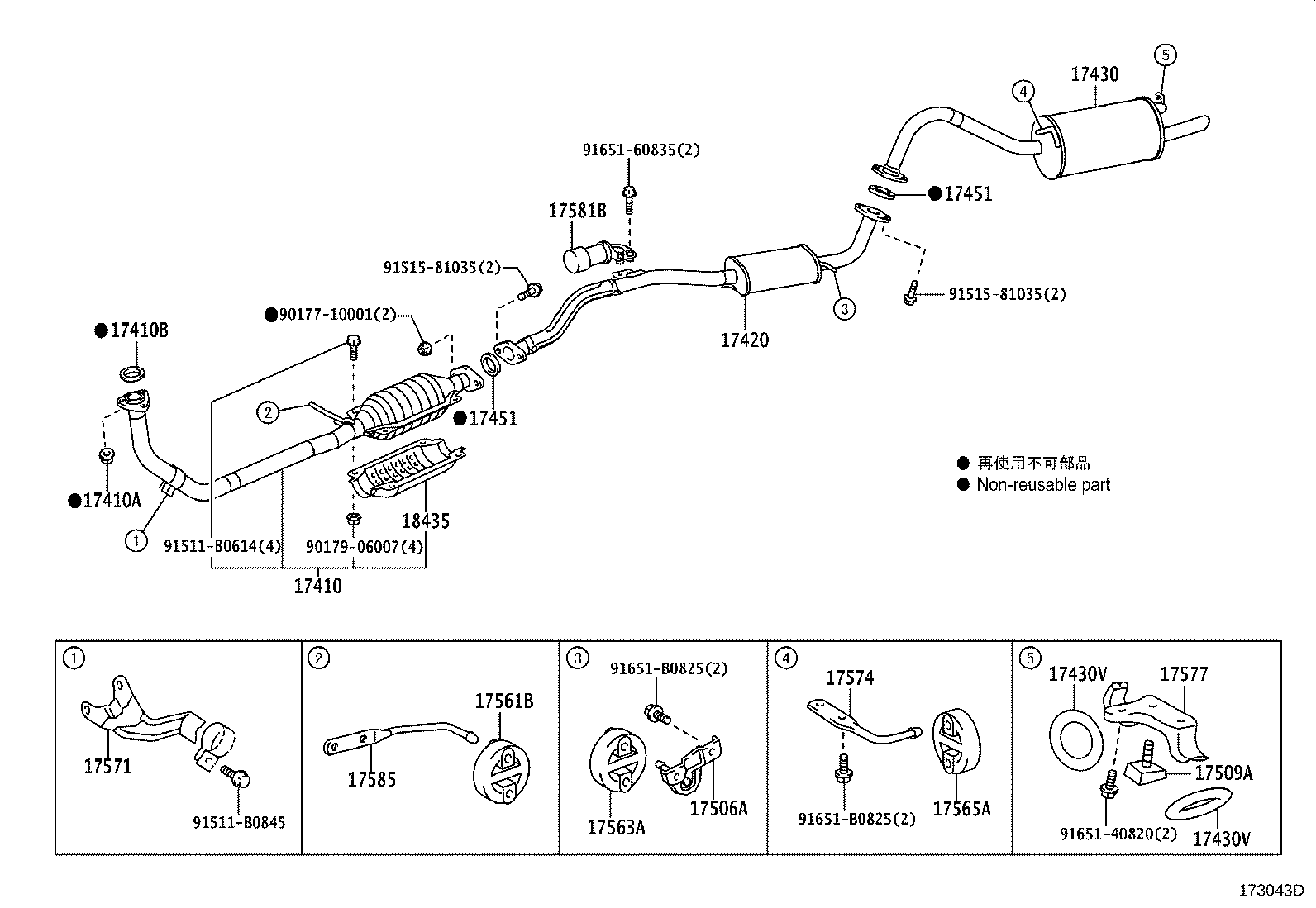

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17420 17430 17430V 17430V 17451 17451 17506A 17509A 17561B 17563A 17565A 17571 17574 17577 17581B 17585 18435 9017710001 9017906007 91511B0614 91511B0845 9151581035 9151581035 9165140820 9165160835 91651B0825 91651B0825
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-7B080

3SFE..SXS13

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3SFE..SXS13

 3
17410B - GASKET, EXHAUST PIPE
90917-06065

3SFE..SXS13

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-7A310

3SFE..SXS13

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-7B340

3SFE..SXS13

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-73010

3SFE..SXS13

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17565-73010

3SFE..SXS13

 2
17451 - GASKET, EXHAUST PIPE
90917-06057

3SFE..SXS13

ﾌﾛﾝﾄ

 1
90917-06039

3SFE..SXS13

ﾘﾔ

 1
17451 - GASKET, EXHAUST PIPE
90917-06057

3SFE..SXS13

ﾌﾛﾝﾄ

 1
90917-06039

3SFE..SXS13

ﾘﾔ

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-74040

3SFE..SXS13

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-73020

3SFE..SXS13

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-16020

3SFE..SXS13

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

3SFE..SXS13

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

3SFE..SXS13

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-74520

3SFE..SXS13

 1
17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574-73050

3SFE..SXS13

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-70060

3SFE..SXS13

 1
17581B - DAMPER, EXHAUST PIPE, NO.2
17581-74090

3SFE..SXS13

 1
17585 - HANGER, EXHAUST PIPE
17585-74020

3SFE..SXS13

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18435-20020

3SFE..SXS13

 1
Common parts
90177-10001
90179-06007
91511-B0614
91511-B0845
91515-81035
91651-40820
91651-60835
91651-B0825
