SXS13Y-BEMDK (2001)
Toyota Crown Comfort/Sed
Production
Aug 2001
-
Jul 2007
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0108- )SXS13

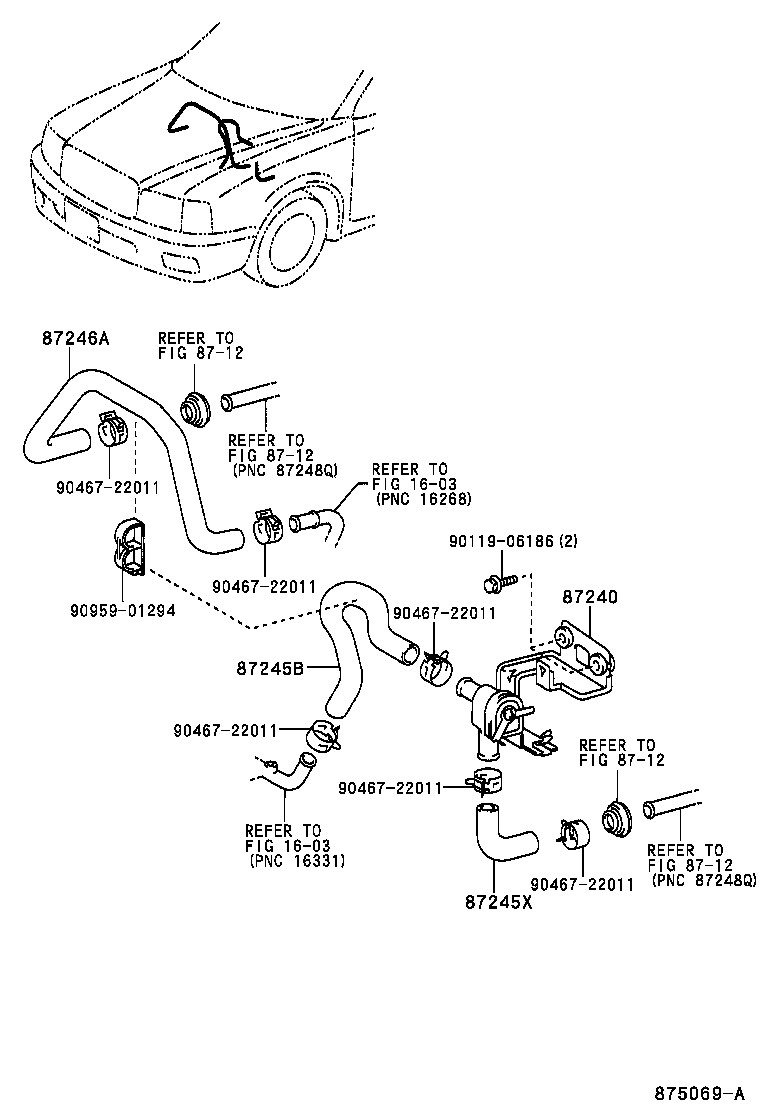

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-43010 |
SXS13,YXS1# |
1 | ||
| 87240-43011 |
SXS13 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-43130 |
SXS13 |
1 | ||
| 87245X - HOSE, HEATER WATER | ||||
| 87245-43070 |
SXS13,YXS1# |
1 | ||
| 87245-43070 |
SXS13 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-43120 |
SXS13 |
1 | ||
| Common parts | ||||
| 90119-06186 | ||||
| 90467-22011 | ||||
| 90959-01294 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8712 | ||||
