SXS13Y-BEMDK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Jul 2007
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

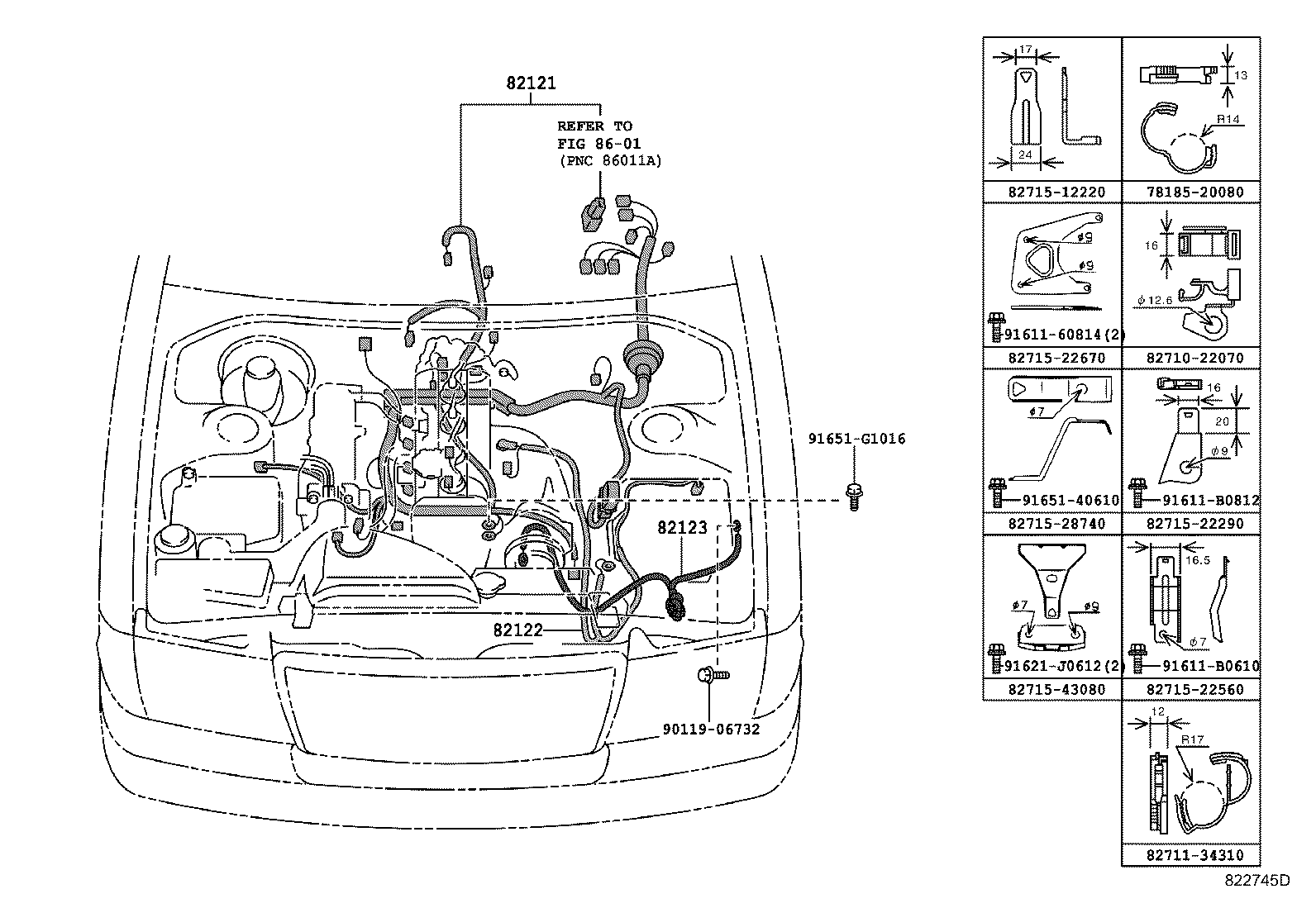

ILLUST NO. 2 OF10(0108- )SXS13

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ

diagram 7818520080 82121 82122 82123 8271022070 8271134310 8271512220 8271522290 8271522560 8271522670 8271528740 8271543080 8601 9011906732 9161160814 91611B0610 91611B0812 91621J0612 9165140610 91651G1016
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-43140

SXS13..5F

 1
82122 - WIRE, ENGINE, NO.2
82122-43051

SXS13

 1
82123 - WIRE, ENGINE, NO.3
82123-43030

SXS13

 1
Common parts
78185-20080
82710-22070
82711-34310
82715-12220
82715-22290
82715-22560
82715-22670
82715-28740
82715-43080
90119-06732
91611-60814
91611-B0610
91611-B0812
91621-J0612
91651-40610
91651-G1016
Linked diagrams
8601
