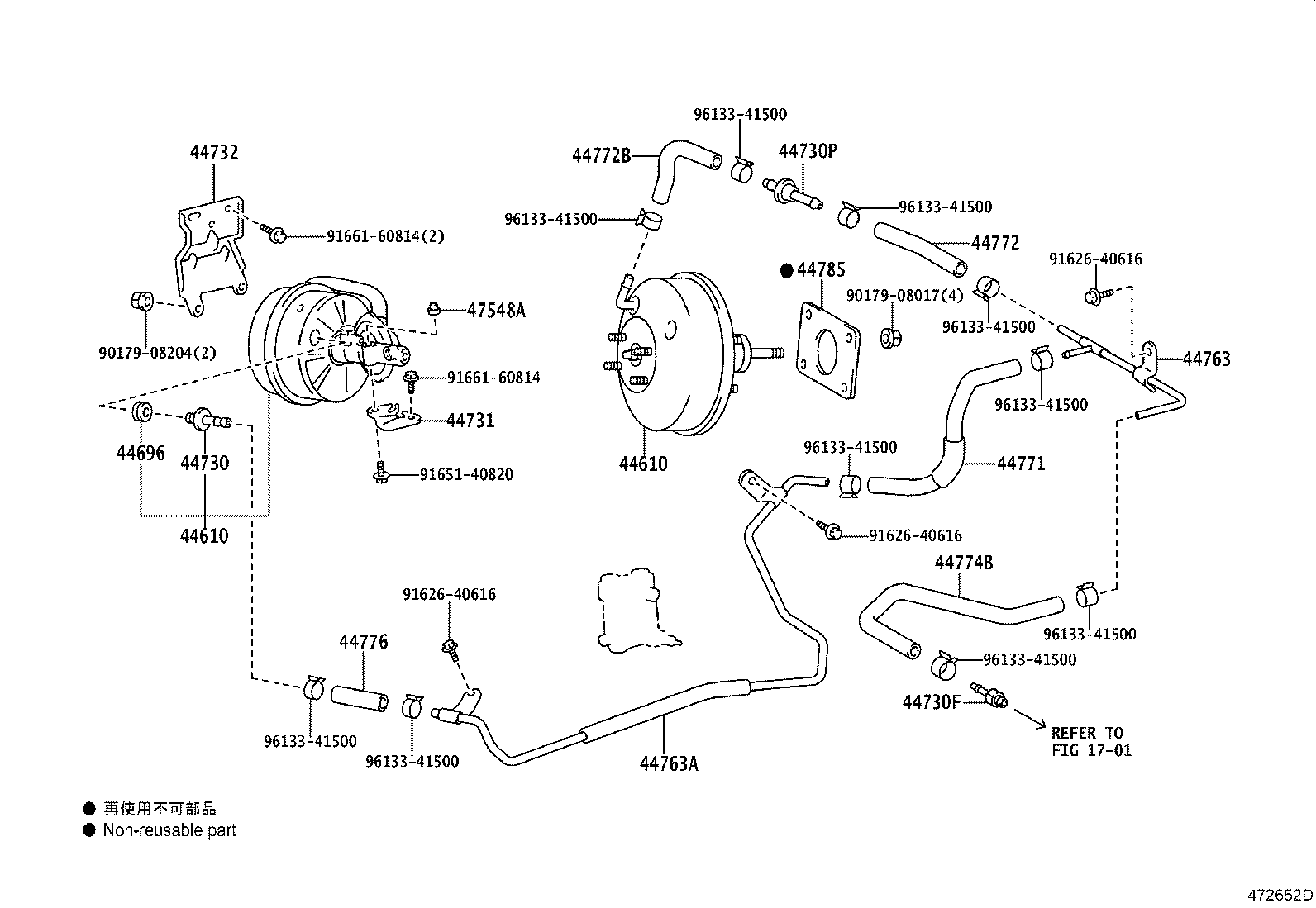

Toyota Crown comfort/sed SXS13 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-43051	SXS13 ｱﾘ(ABS),*41	08/2001 - 07/2007	1
44610-22611	SXS13 *42	06/2002 - 07/2007	1
44610-43120	SXS13,YXS11..DLX *41	08/2001 - 01/2004	1
44610-22611	SXS13,YXS11..DLX *42	08/2001 - 06/2002	1
44610 - BOOSTER ASSY, BRAKE
44610-43051	SXS13 ｱﾘ(ABS),*41	08/2001 - 07/2007	1
44610-22611	SXS13 *42	06/2002 - 07/2007	1
44610-43120	SXS13,YXS11..DLX *41	08/2001 - 01/2004	1
44610-22611	SXS13,YXS11..DLX *42	08/2001 - 06/2002	1
44696 - GROMMET, CHECK VALVE
90480-24439	SXS13	08/2001 - 07/2007	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22130	SXS13	08/2001 - 07/2007	1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319	SXS13	08/2001 - 07/2007	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-10010	SXS13	08/2001 - 07/2007	1
44731 - BRACKET, BRAKE BOOSTER, FRONT
44731-22080	SXS13	08/2001 - 07/2007	1
44732 - BRACKET, BRAKE BOOSTER, REAR
44732-22040	SXS13	08/2001 - 07/2007	1
44763 - TUBE, BOOSTER VACUUM
44763-43060	SXS13	08/2001 - 07/2007	1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-43030	SXS13	08/2001 - 07/2007	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-43010	SXS13,YXS11..DLX	08/2001 - 01/2004	1
44771-43030	SXS13 ｱﾘ(ABS)	08/2001 - 07/2007	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-22300	SXS13	08/2001 - 07/2007	1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-43040	SXS13 ｱﾘ(ABS)	08/2001 - 07/2007	1
44772-43020	SXS13,YXS11..DLX	08/2001 - 01/2004	1
44774B - HOSE, UNION TO CONNECTOR TUBE
44774-43080	SXS13	08/2001 - 07/2007	1
44776 - HOSE, BRAKE BOOSTER
90445-17058	SXS13,YXS11..DLX	08/2001 - 12/2999	1
44785 - GASKET, BRAKE BOOSTER
44785-32010	SXS13	08/2001 - 07/2007	1
47548A - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER)
31478-30010	SXS13	08/2001 - 07/2007	1
Common parts
90179-08017
90179-08204
91626-40616
91651-40820
91661-60814
96133-41500
Linked diagrams
1701

SXS13Y-BEMDK (2001)

(0108-0707)SXS13
