SXS11Y-BEPDK (1996)
Toyota Crown Comfort/Sed
Production
Apr 1996
-
Aug 2001
Engine
4SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

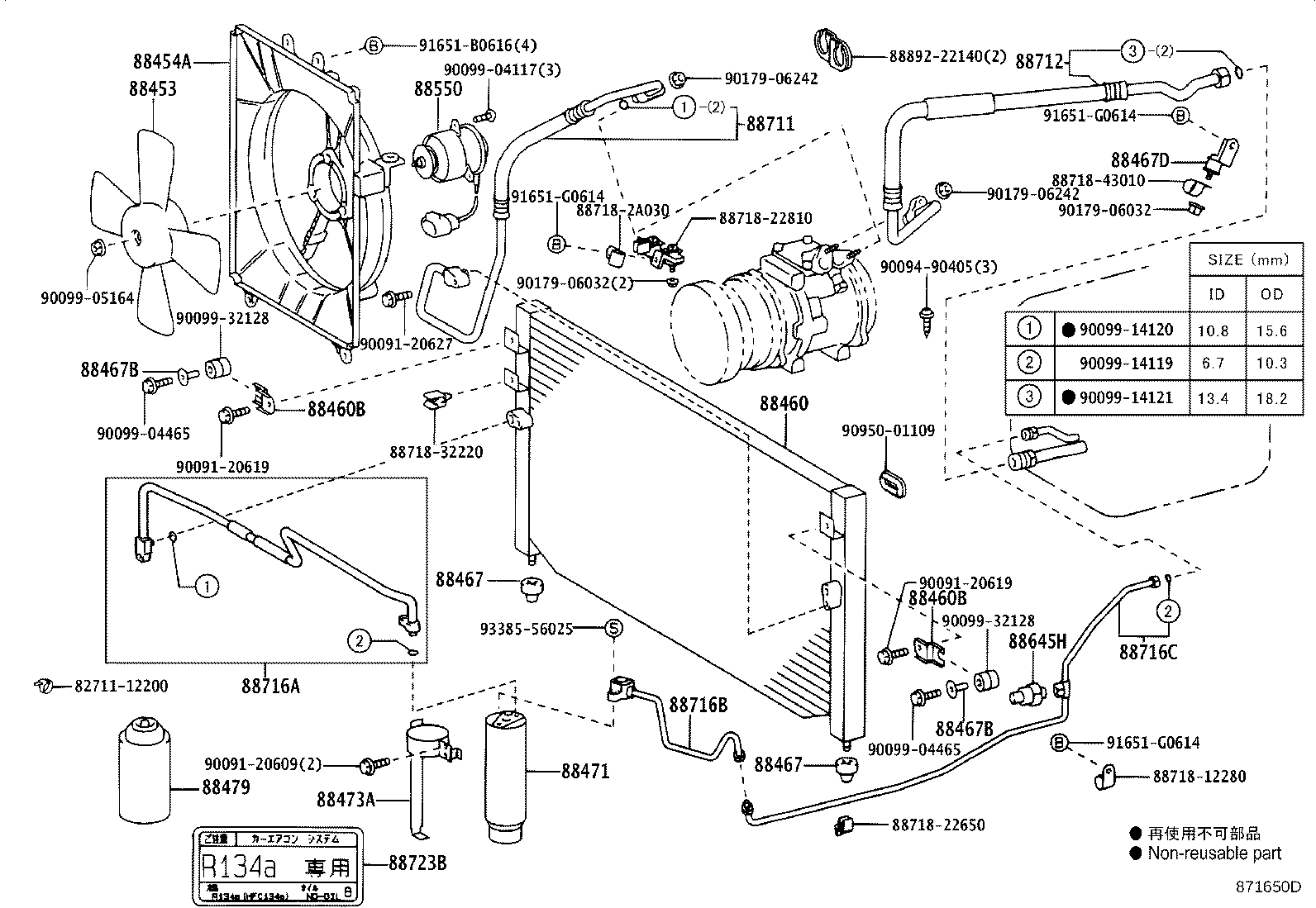

ILLUST NO. 1 OF 2(9604-0108)SXS11
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 16361-63040 |
SXS11 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-43010 |
SXS11 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-43010 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-43010 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-32020 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-32020 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14050 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-14050 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP | ||||
| 88467-30320 |
SXS11 |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-22030 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 88473A - HOLDER, RECEIVER | ||||
| 88473-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02008 |
GXS10,LXS11,SXS11,YXS1# 200G |
1 | ||
| 90986-02007 |
GXS10,LXS11,SXS11,YXS1# 250G |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-15120 |
SXS11 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
SXS11 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-43040 |
SXS11 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-43070 |
SXS11 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-43020 |
GXS10,SXS11 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-43050 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20030 |
SXS11 A/C SYSTEM(HFC134A) |
1 | ||
| 88723-20030 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 88723-20080 |
SXS11 CAUTION(FAN WARNING) |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88718-12280 | ||||
| 88718-22650 | ||||
| 88718-22810 | ||||
| 88718-2A030 | ||||
| 88718-32220 | ||||
| 88718-43010 | ||||
| 88892-22140 | ||||
| 90091-20609 | ||||
| 90091-20619 | ||||
| 90091-20627 | ||||
| 90094-90405 | ||||
| 90099-04117 | ||||
| 90099-04465 | ||||
| 90099-05164 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-32128 | ||||
| 90179-06032 | ||||
| 90179-06242 | ||||
| 90950-01109 | ||||
| 91651-B0616 | ||||
| 91651-G0614 | ||||
| 93385-56025 | ||||
