SXS11Y-BEPDK (1996)

Toyota Crown Comfort/Sed

Production Apr 1996 - Aug 2001
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-0108)SXS11

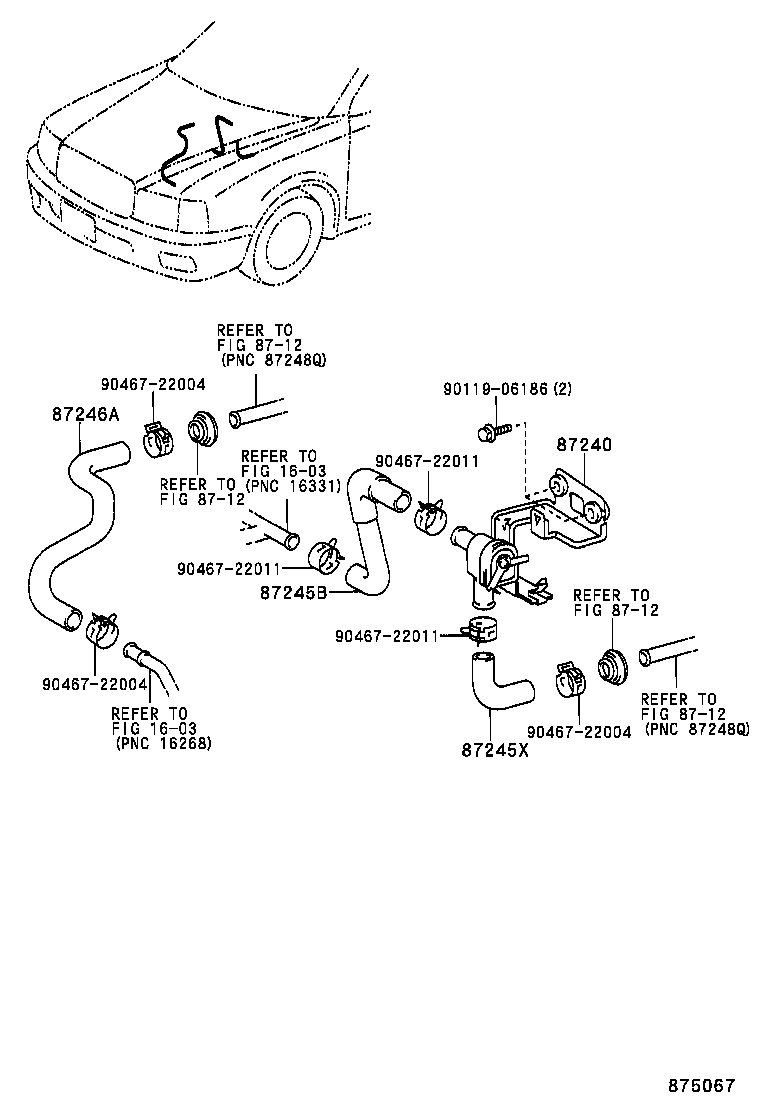

Click highlighted areas on diagram

diagram 1603 1603 8712 8712 8712 8712 87240 87245B 87245X 87246A 9011906186 9046722004 9046722004 9046722004 9046722011 9046722011 9046722011
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-43010

GXS10,SXS11,YXS1#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-43090

SXS11

 1
87245X - HOSE, HEATER WATER
87245-43070

GXS10,SXS11,YXS1#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-43060

SXS11

 1
Common parts
90119-06186
90467-22004
90467-22011
Linked diagrams
1603
8712
