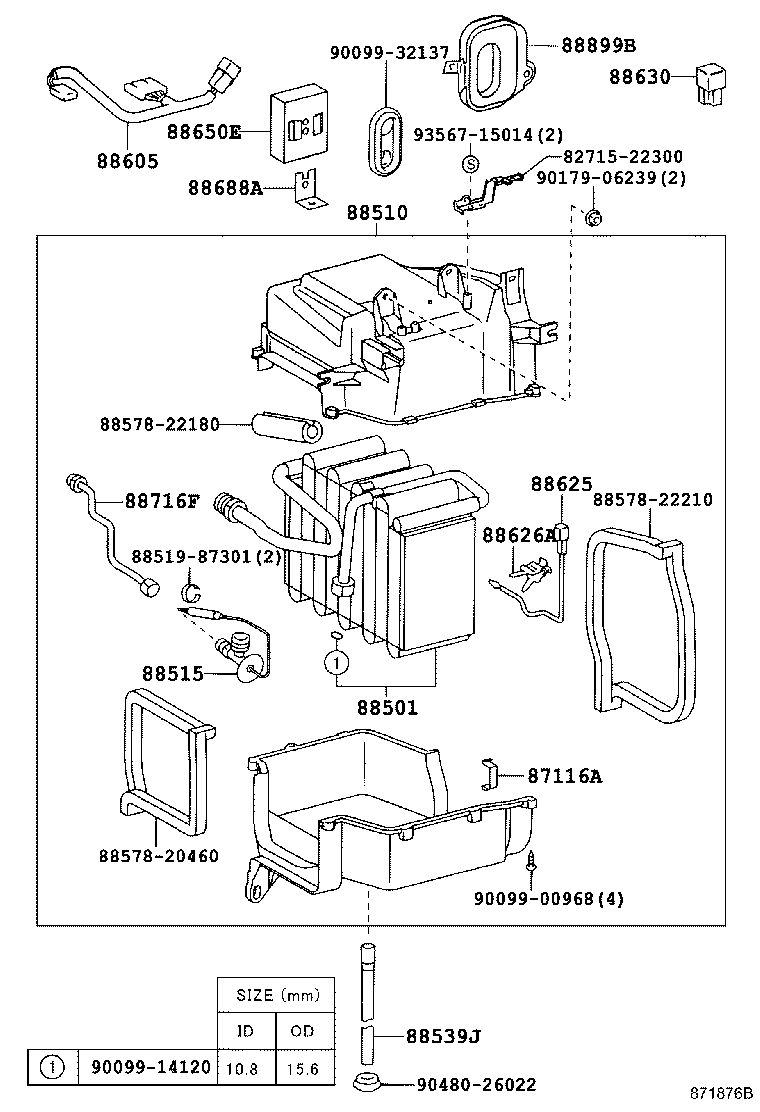

Toyota Crown comfort/sed SXS11 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010	LXS11,SXS11,YXS11..DLX	04/1996 - 08/2001	4
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-43010	LXS11,SXS11,YXS11..DLX	04/1996 - 08/2001	1
88510 - UNIT ASSY, COOLER
88510-43030	LXS11,SXS11,YXS11..DLX	04/1996 - 08/2001	1
88515 - VALVE, COOLER EXPANSION
88515-22180	LXS11,SXS11,YXS11..DLX	04/1996 - 08/2001	1
88539J - HOSE, DRAIN COOLER
88539-22170	SXS11	04/1996 - 08/2001	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-43020	SXS11	04/1996 - 07/2001	1
88625 - THERMISTOR, COOLER, NO.1
88625-20460	LXS11,SXS11,YXS11..DLX	04/1996 - 08/2001	1
88626A - HOLDER, THERMISTOR
88626-40050	LXS11,SXS11,YXS11..DLX	04/1996 - 08/2001	1
88630 - RELAY ASSY, COOLER
90987-02009	SXS11 ﾏｸﾞﾈｯﾄｸﾗｯﾁ,NO.2	04/1996 - 08/2001	2
90987-04003	SXS11 NO.3	04/1996 - 08/2001	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-43030	SXS11	04/1996 - 08/2001	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-43050	LXS11,SXS11,YXS11..DLX	04/1996 - 08/2001	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-43060	LXS11,SXS11,YXS11..DLX	04/1996 - 08/2001	1
88899B - COVER, COOLER CONTROL
88899-22220	GXS10,LXS11,SXS11,YXS1#	12/1995 - 08/2001	1
Common parts
82715-22300
88519-87301
88578-20460
88578-22180
88578-22210
90099-00968
90099-14120
90099-32137
90179-06239
90480-26022
93567-15014

SXS11Y-BEPDK (1996)
