SXS11Y-BEPDK (1996)
Toyota Crown Comfort/Sed
ILLUST NO. 1 OF 4(9512-0108)
ﾅｼ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A820 |
GXS10,SXS11,YXS11..DLX,SDX,SG DENSO |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3A740 |
SXS11;YXS11..5F..DLX |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30410 |
GXS10,SXS11,YXS11..DLX,SDX,SG |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-3A851 |
SXS11 |
1 | ||
| 83861-43181 |
SXS11..4FC |
1 | ||
| 83861-43180 |
SXS11 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-43180 |
SXS11 |
1 | ||
| 83243-3A611 |
SXS11 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
GXS10,LXS11,SXS11,YXS1#..ATM |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 86650-12030 |
GXS10,SXS11,YXS1# |
1 | ||
| Common parts | ||||
| 83133-28250 | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90159-40027 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 4(9512-0108)
ｱﾘ(ﾀｺﾒ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-3A820 |
GXS10,SXS11,YXS11..DLX,SDX,SG DENSO |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-3A740 |
SXS11;YXS11..5F..DLX |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-30410 |
GXS10,SXS11,YXS11..DLX,SDX,SG |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83149-3A851 |
SXS11 |
1 | ||
| 83861-43181 |
SXS11..4FC |
1 | ||
| 83861-43180 |
SXS11 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-43060 |
SXS11..4FC |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-43180 |
SXS11 |
1 | ||
| 83243-3A611 |
SXS11 |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-3A091 |
GXS10,LXS11,SXS11,YXS11..DLX,SDX,SG |
1 | ||
| 83883-43130 |
GXS10,LXS11,SXS11,YXS11..DLX,SDX,SG |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-20010 |
GXS10,LXS11,SXS11,YXS1#..ATM |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 86650-12030 |
GXS10,SXS11,YXS1# |
1 | ||
| Common parts | ||||
| 83133-28250 | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00917 | ||||
| 90099-00952 | ||||
| 90159-40027 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||

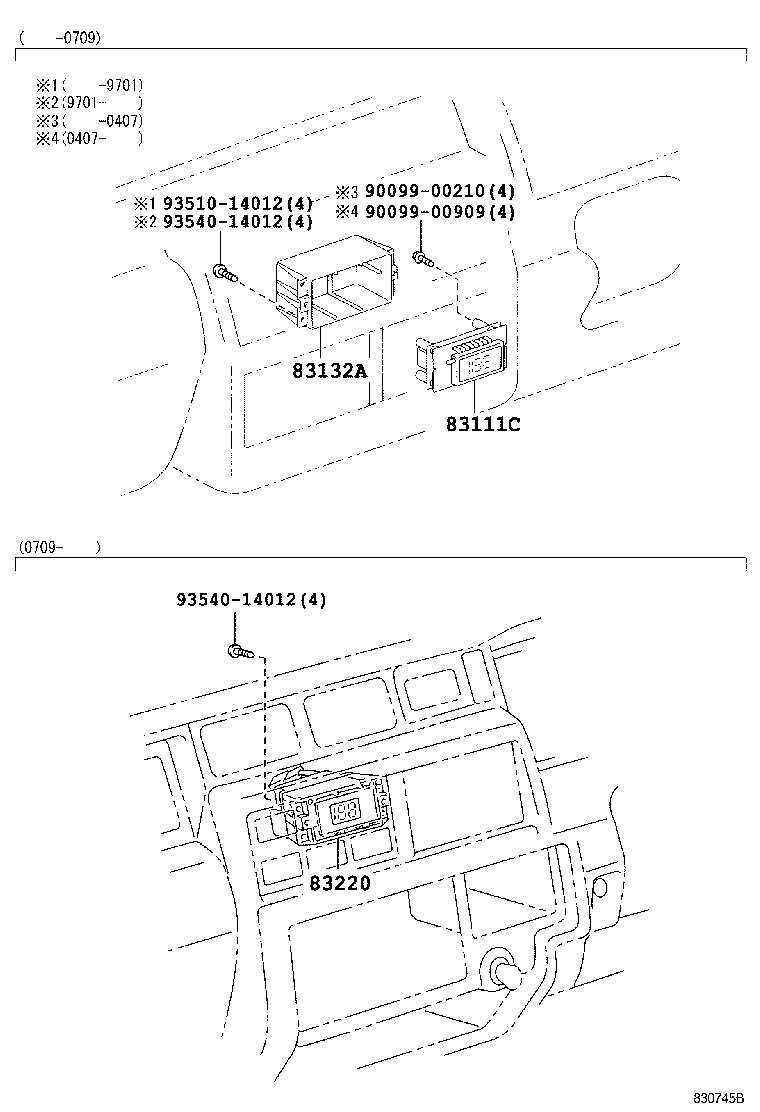

ILLUST NO. 3 OF 4(9604- )LXS11,SXS1#,TSS11,13,YXS11..DLX
ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83111C - BODY ASSY, SPEEDOMETER | ||||
| 83111-22210 |
LXS11,SXS11,YXS11..DLX |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-2A350 |
LXS11,SXS11,YXS11..DLX |
1 | ||
| Common parts | ||||
| 90099-00210 | ||||
| 90099-00909 | ||||
| 93510-14012 | ||||
| 93540-14012 | ||||
ILLUST NO. 2 OF 4(9512-0108)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ:ﾅｼ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 83101-14030 |
GXS10,LXS11,SXS11,YXS1# ｼｮｳﾒｲ & ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ ﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 83101-14030 |
GXS10,LXS11,SXS11,YXS1# ｼｮｳﾒｲ & ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ ﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 83101-14030 |
GXS10,LXS11,SXS11,YXS1# ｼｮｳﾒｲ & ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ ﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 83101-14030 |
GXS10,LXS11,SXS11,YXS1# ｼｮｳﾒｲ & ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ ﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 83101-14030 |
GXS10,LXS11,SXS11,YXS1# ｼｮｳﾒｲ & ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ ﾖｳ |
1 | ||
ILLUST NO. 2 OF 4(9512-0108)
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ:ｱﾘ(ﾀｺﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
SXS11;LXS11,YXS11..5F..DLX 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き |
1 | ||
| 83109-30070 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 99132-12034 |
GXS10,LXS11,SXS11,YXS1# 12V 3.4W |
1 | ||
| 83119-24130 |
GXS10,LXS11,SXS11,YXS11..ATM..(DLX,SDX,SG) 12V 1.4W ﾎﾜｲﾄ ｿｹｯﾄ付き |
1 | ||
| 90981-11018 |
GXS10,LXS11,SXS11,YXS1# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 83101-14030 |
GXS10,LXS11,SXS11,YXS1# ｼｮｳﾒｲ & ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ ﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 83101-14030 |
GXS10,LXS11,SXS11,YXS1# ｼｮｳﾒｲ & ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ ﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 83101-14030 |
GXS10,LXS11,SXS11,YXS1# ｼｮｳﾒｲ & ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ ﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 83101-14030 |
GXS10,LXS11,SXS11,YXS1# ｼｮｳﾒｲ & ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ ﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 83101-14030 |
GXS10,LXS11,SXS11,YXS1# ｼｮｳﾒｲ & ﾌｭｰｴﾙｳｫｰﾆﾝｸﾞ ﾖｳ |
1 | ||
