SXS11Y-BEPDK (1996)

Toyota Crown Comfort/Sed

Production Apr 1996 - Aug 2001
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

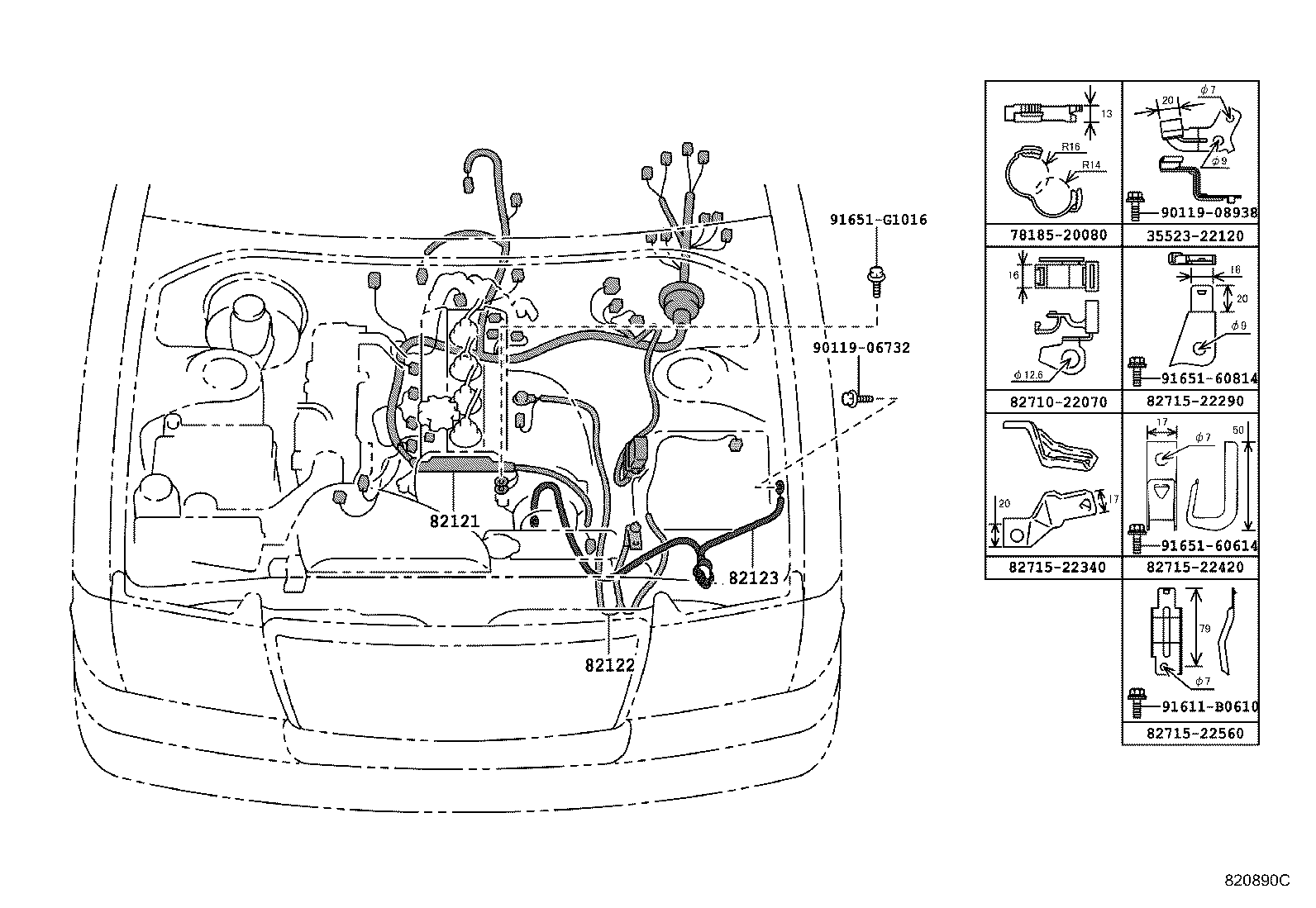

ILLUST NO. 2 OF10(9604-0108)SXS11

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ

diagram 3552322120 7818520080 82121 82122 82123 8271022070 8271522290 8271522340 8271522420 8271522560 9011906732 9011908938 91611B0610 9165160614 9165160814 91651G1016
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-43080

SXS11..4FC

 1
82121-43082

SXS11..4FC

 1
82121-43081

SXS11..4FC

 1
82122 - WIRE, ENGINE, NO.2
82122-43050

SXS11

 1
82123 - WIRE, ENGINE, NO.3
82123-43030

SXS11

 1
Common parts
35523-22120
78185-20080
82710-22070
82715-22290
82715-22340
82715-22420
82715-22560
90119-06732
90119-08938
91611-B0610
91651-60614
91651-60814
91651-G1016

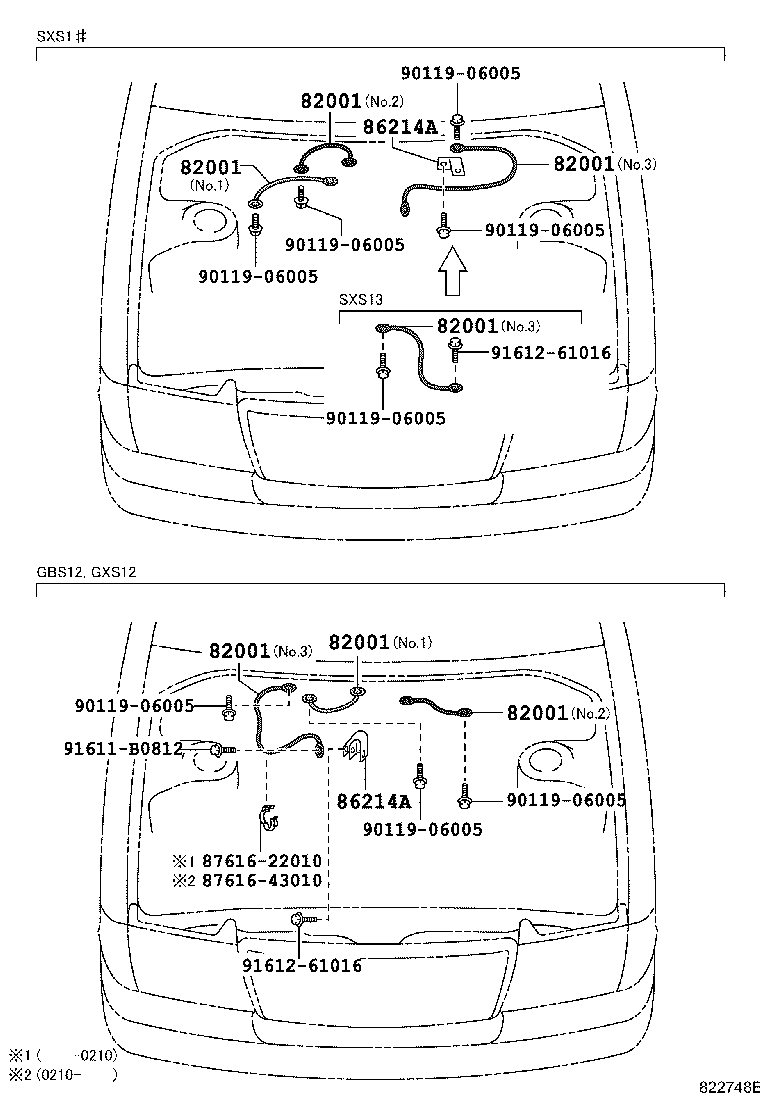

ILLUST NO. 8 OF10(9604- )GBS12,GXS12,SXS1#

Click highlighted areas on diagram

ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ

diagram 82001 82001 82001 82001 82001 82001 82001 86214A 86214A 8761622010 8761643010 9011906005 9011906005 9011906005 9011906005 9011906005 9011906005 9011906005 9011906005 91611B0812 9161261016 9161261016
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07062

SXS11

NO.3

 1
90980-07156

GXS10,SXS11,YXS1#

NO.1,NO.2

 2
82001 - CABLE, BOND, NO.1
90980-07062

SXS11

NO.3

 1
90980-07156

GXS10,SXS11,YXS1#

NO.1,NO.2

 2
82001 - CABLE, BOND, NO.1
90980-07062

SXS11

NO.3

 1
90980-07156

GXS10,SXS11,YXS1#

NO.1,NO.2

 2
82001 - CABLE, BOND, NO.1
90980-07062

SXS11

NO.3

 1
90980-07156

GXS10,SXS11,YXS1#

NO.1,NO.2

 2
82001 - CABLE, BOND, NO.1
90980-07062

SXS11

NO.3

 1
90980-07156

GXS10,SXS11,YXS1#

NO.1,NO.2

 2
82001 - CABLE, BOND, NO.1
90980-07062

SXS11

NO.3

 1
90980-07156

GXS10,SXS11,YXS1#

NO.1,NO.2

 2
82001 - CABLE, BOND, NO.1
90980-07062

SXS11

NO.3

 1
90980-07156

GXS10,SXS11,YXS1#

NO.1,NO.2

 2
86214A - BRACKET, RADIO EARTH
82046-30040

SXS11

 1
86214A - BRACKET, RADIO EARTH
82046-30040

SXS11

 1
Common parts
87616-22010
87616-43010
90119-06005
91611-B0812
91612-61016
