SXS11Y-BEPDK (1996)
Toyota Crown Comfort/Sed
Production
Apr 1996
-
Aug 2001
Engine
4SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

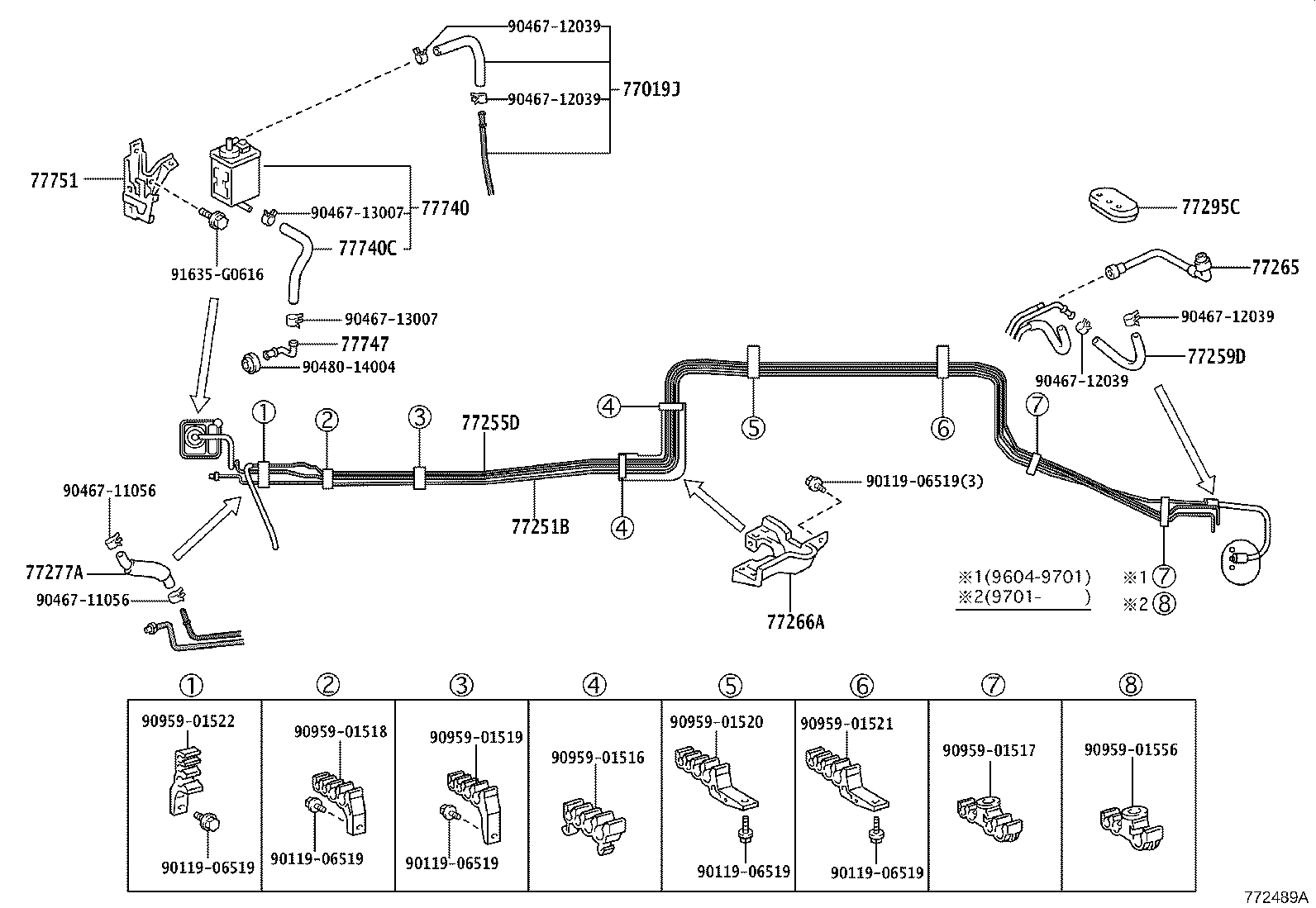

ILLUST NO. 2 OF 2(9512-0108)SXS11
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-43010 |
SXS11 |
1 | ||
| 77019-43011 |
SXS11 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-43060 |
SXS11 |
1 | ||
| 77251-43061 |
SXS11 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-43030 |
SXS11 |
1 | ||
| 77255-43031 |
SXS11 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-43020 |
SXS11 |
1 | ||
| 77259-43021 |
SXS11 |
1 | ||
| 77265 - CONNECTOR, FUEL MAIN TUBE | ||||
| 77265-43011 |
SXS11 |
1 | ||
| 77265-43010 |
SXS11 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-43010 |
SXS11,YXS1# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23239-74020 |
SXS11 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-43010 |
LXS11,SXS11 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-43010 |
SXS11 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 77754-43010 |
SXS11 |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-43010 |
SXS11 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-43010 |
SXS11 |
1 | ||
| Common parts | ||||
| 90119-06519 | ||||
| 90467-11056 | ||||
| 90467-12039 | ||||
| 90467-13007 | ||||
| 90480-14004 | ||||
| 90959-01516 | ||||
| 90959-01517 | ||||
| 90959-01518 | ||||
| 90959-01519 | ||||
| 90959-01520 | ||||
| 90959-01521 | ||||
| 90959-01522 | ||||
| 90959-01556 | ||||
| 91635-G0616 | ||||
