SXS11Y-BEPDK (1996)

Toyota Crown Comfort/Sed

Production Apr 1996 - Aug 2001
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9701-0108) ; (0108- )SXS13,TSS11,13,YXS11..DLX

Click highlighted areas on diagram

ｱﾘ(ABS)

diagram 44510 44545D 44545D 44546A 44546A 44590 9009905277 9009905277 9017908249 9017908249 91651B0814
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-43010

GXS10,LXS11,SXS11,YXS1#

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

GXS10,LXS11,SXS11,YXS1#

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42020

GXS10,LXS11,SXS11,YXS1#

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

GXS10,LXS11,SXS11,YXS1#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42020

GXS10,LXS11,SXS11,YXS1#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-43010

GXS10,LXS11,SXS11,YXS1#

 1
Common parts
90099-05277
90179-08249
91651-B0814

(9604- )SXS1#

Click highlighted areas on diagram

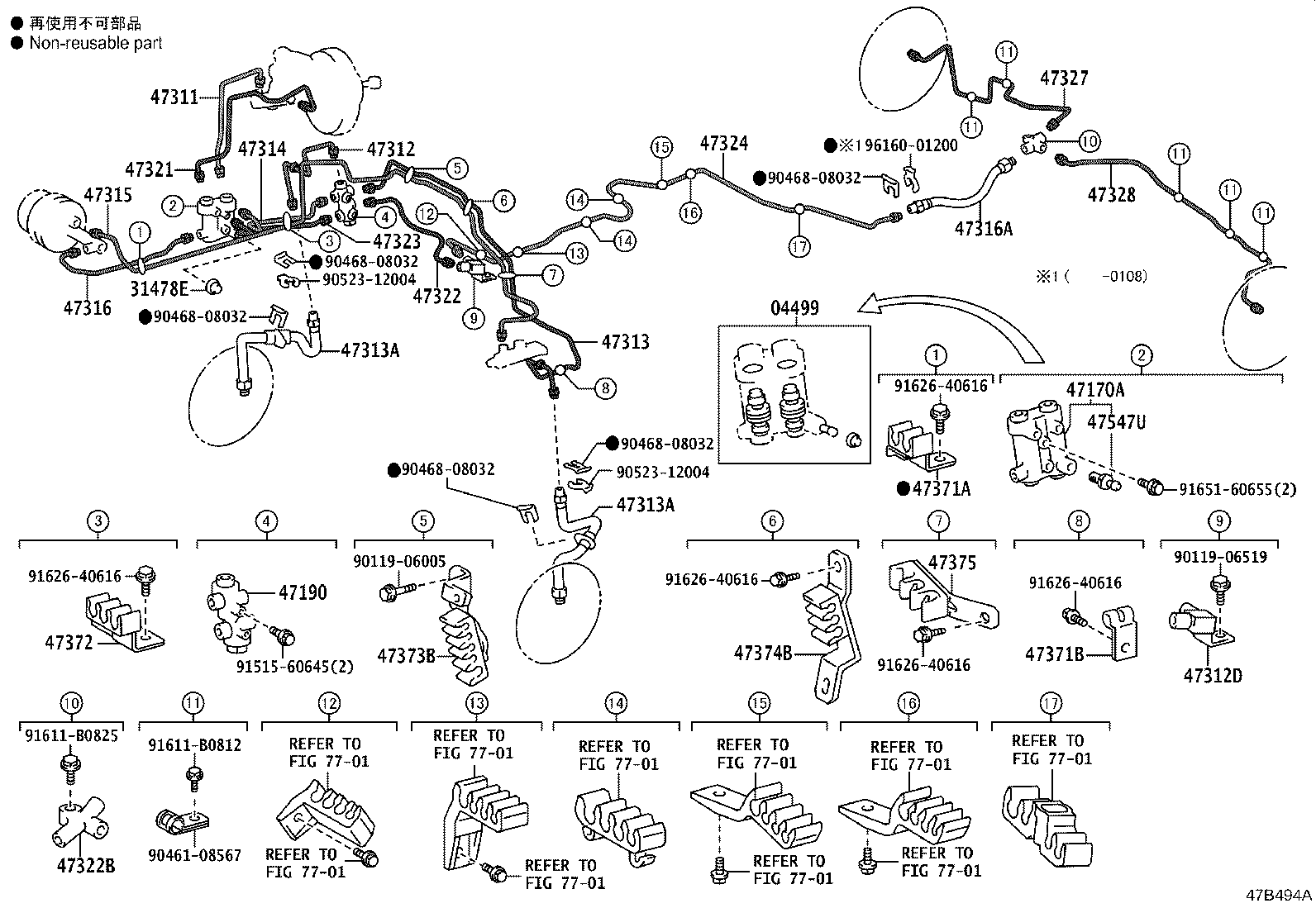

diagram 04499 31478E 47170A 47190 47311 47312 47312D 47313 47313A 47313A 47314 47315 47316 47316A 47321 47322 47322B 47323 47324 47327 47328 47371A 47371B 47372 47373B 47374B 47375 47547U 7701 7701 7701 7701 7701 7701 7701 7701 7701 7701 9011906005 9011906519 9046108567 9046808032 9046808032 9046808032 9046808032 9046808032 9052312004 9052312004 9151560645 91611B0812 91611B0825 9162640616 9162640616 9162640616 9162640616 9162640616 9165160655 9616001200
Part # Description Qty Price
04499 - PISTON KIT, BRAKE CHANGE VALVE
04499-22040

SXS11,YXS11..DLX

 1
04499-43010

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
04499-43010

SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
04499-22040

LXS11,SXS11,YXS11..DLX

 1
31478E - CAP, BLEEDER PLUG(FOR BRAKE CHANGE VALVE)
31478-30010

LXS11,SXS11,YXS11..DLX

 1
47170A - VALVE ASSY, BRAKE CHANGE
47170-43010

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47170-22060

LXS11,SXS11,YXS11..DLX

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-22030

GXS10,SXS11,YXS1#

 1
47190-43020

SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47190-22030

SXS11,YXS11..DLX

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-43040

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47311-43020

LXS11,SXS11,YXS11..DLX

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-43010

GXS10,LXS11,SXS11,YXS1#

 1
47312-43030

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47312D - WAY, 2(FOR REAR BRAKE TUBE)
90412-10119

SXS11,YXS1#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-43010

SXS11,YXS1#

 1
47313-43030

GXS10,LXS11,SXS11,YXS1#

ｱﾘ(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

GXS10,LXS11,SXS11,YXS1#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

GXS10,LXS11,SXS11,YXS1#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-22141

LXS11,SXS11,YXS11..DLX

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-43010

SXS11,YXS11..DLX

 1
47315-43030

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-22220

LXS11,SXS11,YXS11..DLX

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02619

GXS10,LXS11,SXS11,YXS1#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-43020

LXS11,SXS11,YXS11..DLX

 1
47321-43040

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-22220

SXS11,YXS1#

 1
47322-43040

SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

GXS10,LXS11,SXS11,YXS1#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-22101

LXS11,SXS11,YXS11..DLX

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-43060

SXS11

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-22110

LXS11,SXS11,YXS11..DLX

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-22110

LXS11,SXS11,YXS11..DLX

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-22180

SXS11,YXS11..DLX

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90461-06055

GXS10,LXS11,SXS11,YXS1#

 1
90461-06055

YXS11;GXS10,LXS11,SXS11,YXS10..CRW,KYO

 1
47371-43070

GXS10,LXS11,SXS11,YXS1#

ｱﾘ(ABS)

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-22160

LXS11,SXS11,YXS11..DLX

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-43050

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47371-43010

SXS11,YXS11..DLX

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-43040

SXS11,YXS11..DLX

 1
47371-43060

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-22130

SXS11,YXS11..DLX

 1
47547U - PLUG, BLEEDER(FOR BRAKE CHANGE VALVE)
47547-12010

LXS11,SXS11,YXS11..DLX

 1
90029-33601

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
Common parts
90119-06005
90119-06519
90461-08567
90468-08032
90523-12004
91515-60645
91611-B0812
91611-B0825
91626-40616
91651-60655
96160-01200
Linked diagrams
7701

ILLUST NO. 1 OF 2(9701- )SXS1#

Click highlighted areas on diagram

ｱﾘ(ABS)

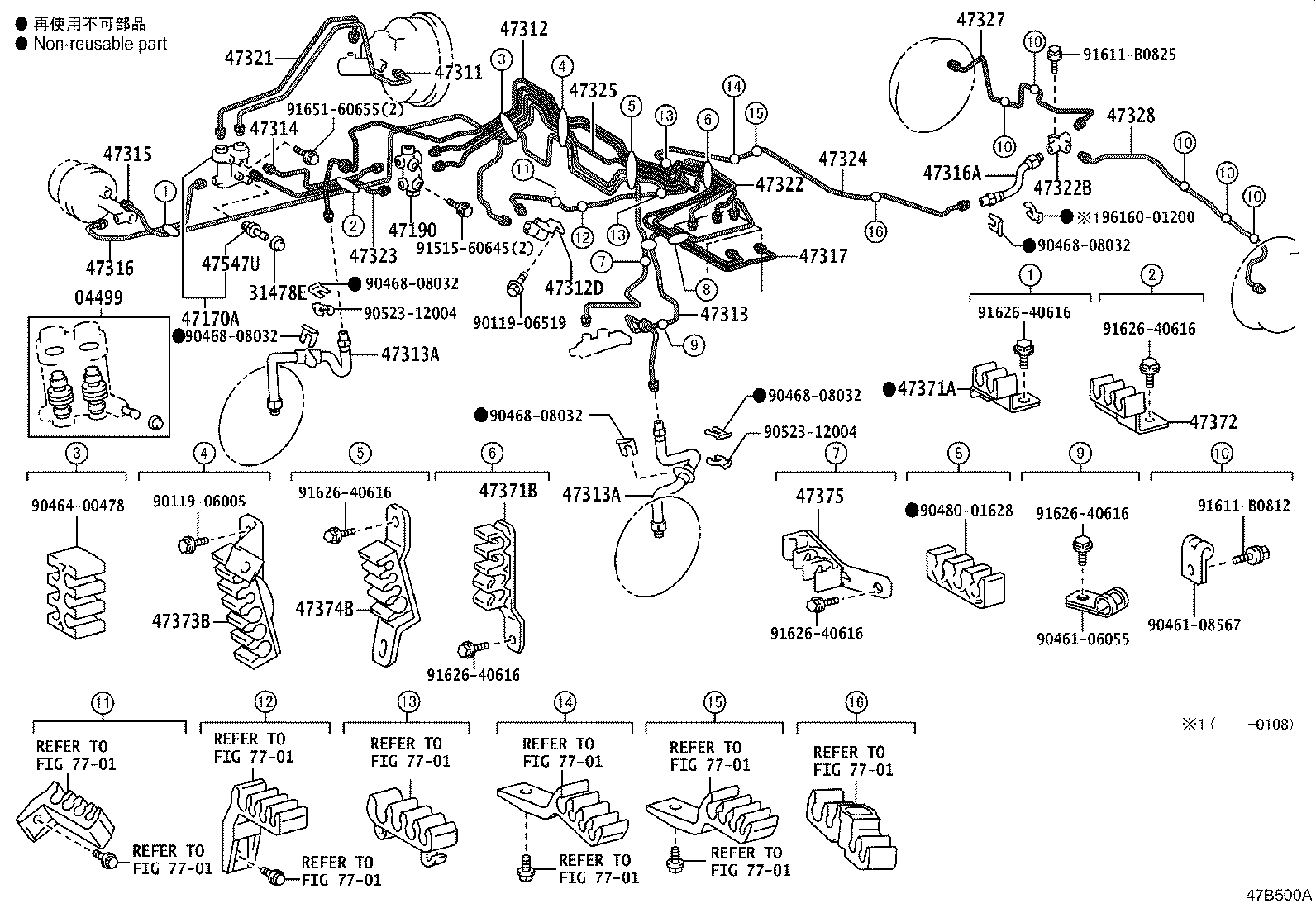

diagram 04499 31478E 47170A 47190 47311 47312 47312D 47313 47313A 47313A 47314 47315 47316 47316A 47317 47321 47322 47322B 47323 47324 47325 47327 47328 47371A 47371B 47372 47373B 47374B 47375 47547U 7701 7701 7701 7701 7701 7701 7701 7701 7701 7701 9011906005 9011906519 9046106055 9046108567 9046400478 9046808032 9046808032 9046808032 9046808032 9046808032 9048001628 9052312004 9052312004 9151560645 91611B0812 91611B0825 9162640616 9162640616 9162640616 9162640616 9162640616 9162640616 9165160655 9616001200
Part # Description Qty Price
04499 - PISTON KIT, BRAKE CHANGE VALVE
04499-22040

SXS11,YXS11..DLX

 1
04499-43010

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
04499-43010

SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
04499-22040

LXS11,SXS11,YXS11..DLX

 1
31478E - CAP, BLEEDER PLUG(FOR BRAKE CHANGE VALVE)
31478-30010

LXS11,SXS11,YXS11..DLX

 1
47170A - VALVE ASSY, BRAKE CHANGE
47170-43010

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47170-22060

LXS11,SXS11,YXS11..DLX

 1
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-22030

GXS10,SXS11,YXS1#

 1
47190-43020

SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47190-22030

SXS11,YXS11..DLX

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-43040

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47311-43020

LXS11,SXS11,YXS11..DLX

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-43010

GXS10,LXS11,SXS11,YXS1#

 1
47312-43030

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47312D - WAY, 2(FOR REAR BRAKE TUBE)
90412-10119

SXS11,YXS1#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-43010

SXS11,YXS1#

 1
47313-43030

GXS10,LXS11,SXS11,YXS1#

ｱﾘ(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

GXS10,LXS11,SXS11,YXS1#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02570

GXS10,LXS11,SXS11,YXS1#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-22141

LXS11,SXS11,YXS11..DLX

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-43010

SXS11,YXS11..DLX

 1
47315-43030

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-22220

LXS11,SXS11,YXS11..DLX

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02619

GXS10,LXS11,SXS11,YXS1#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-43010

LXS11,SXS11,YXS11..DLX

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-43020

LXS11,SXS11,YXS11..DLX

 1
47321-43040

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-22220

SXS11,YXS1#

 1
47322-43040

SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

GXS10,LXS11,SXS11,YXS1#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-22101

LXS11,SXS11,YXS11..DLX

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-43060

SXS11

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-43010

LXS11,SXS11,YXS11..DLX

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-22110

LXS11,SXS11,YXS11..DLX

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-22110

LXS11,SXS11,YXS11..DLX

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-22180

SXS11,YXS11..DLX

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90461-06055

GXS10,LXS11,SXS11,YXS1#

 1
90461-06055

YXS11;GXS10,LXS11,SXS11,YXS10..CRW,KYO

 1
47371-43070

GXS10,LXS11,SXS11,YXS1#

ｱﾘ(ABS)

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-22160

LXS11,SXS11,YXS11..DLX

 1
47373B - CLAMP, BRAKE TUBE, NO.3
47371-43050

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47371-43010

SXS11,YXS11..DLX

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47371-43040

SXS11,YXS11..DLX

 1
47371-43060

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47371-22130

SXS11,YXS11..DLX

 1
47547U - PLUG, BLEEDER(FOR BRAKE CHANGE VALVE)
47547-12010

LXS11,SXS11,YXS11..DLX

 1
90029-33601

LXS11,SXS11,YXS11..DLX

ｱﾘ(ABS)

 1
Common parts
90119-06005
90119-06519
90461-06055
90461-08567
90464-00478
90468-08032
90480-01628
90523-12004
91515-60645
91611-B0812
91611-B0825
91626-40616
91651-60655
96160-01200
Linked diagrams
7701
