SXS11Y-BEPDK (1996)
Toyota Crown Comfort/Sed
(9604- )LXS11,SXS1#,YXS11..DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-43020 |
LXS11,SXS11,YXS11..4FC..DLX *41 |
1 | ||
| 47101-43030 |
LXS11,SXS11,YXS11..DLX *42 |
1 | ||
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-43020 |
LXS11,SXS11,YXS11..4FC..DLX *41 |
1 | ||
| 47101-43030 |
LXS11,SXS11,YXS11..DLX *42 |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-13004 |
LXS11,SXS11,YXS11..DLX *41 |
1 | ||
| 90506-09059 |
LXS11,SXS11,YXS11..DLX *42 |
1 | ||
| 90507-14018 |
LXS11,SXS11,YXS11..DLX *42 |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-13004 |
LXS11,SXS11,YXS11..DLX *41 |
1 | ||
| 90506-09059 |
LXS11,SXS11,YXS11..DLX *42 |
1 | ||
| 90507-14018 |
LXS11,SXS11,YXS11..DLX *42 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
LXS11,SXS11,YXS11..DLX *41,*42 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
LXS11,SXS11,YXS11..DLX *41,*42 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
LXS11,SXS11,YXS11..DLX *41,*42 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
LXS11,SXS11,YXS11..DLX *41,*42 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-14010 |
LXS11,SXS11,YXS11..4FC..DLX |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-14010 |
LXS11,SXS11,YXS11..4FC..DLX |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90101-10380 |
LXS11,SXS11,YXS11..DLX *42 |
1 | ||
| 90101-10039 |
LXS11,SXS11,YXS11..DLX *41 |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90101-10380 |
LXS11,SXS11,YXS11..DLX *42 |
1 | ||
| 90101-10039 |
LXS11,SXS11,YXS11..DLX *41 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
LXS11,SXS11,YXS11..DLX *41 |
1 | ||
| 90387-10044 |
LXS11,SXS11,YXS11..DLX *42 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
LXS11,SXS11,YXS11..DLX *41 |
1 | ||
| 90387-10044 |
LXS11,SXS11,YXS11..DLX *42 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
LXS11,SXS11,YXS11..DLX *41,*42 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
LXS11,SXS11,YXS11..DLX *41,*42 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-10064 |
LXS11,SXS11,YXS11..DLX *41 |
1 | ||
| 90249-10017 |
LXS11,SXS11,YXS11..DLX *42 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90249-10064 |
LXS11,SXS11,YXS11..DLX *41 |
1 | ||
| 90249-10017 |
LXS11,SXS11,YXS11..DLX *42 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-43020 |
GXS10,SXS11,YXS1# |
1 | ||
| 55106-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 55108 - BRACKET SUB-ASSY, BRAKE PEDAL, NO.3 | ||||
| 55108-43011 |
LXS11,SXS11,YXS11..DLX |
1 | ||
| 55108-43010 |
LXS11,SXS11,YXS11..DLX |
1 | ||
| 55179 - REINFORCEMENT, BRAKE PEDAL SUPPORT | ||||
| 55179-43020 |
LXS11,SXS11,YXS11..DLX |
1 | ||
| 55179-22070 |
LXS11,SXS11,YXS11..DLX |
1 | ||
| 55218A - SEAL, DASH PANEL INSULATOR | ||||
| 55218-22010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| Common parts | ||||
| 90119-06848 | ||||
| 90468-16142 | ||||
| 91651-60625 | ||||
| 91651-B0825 | ||||
| 94110-51000 | ||||
| 94512-01000 | ||||

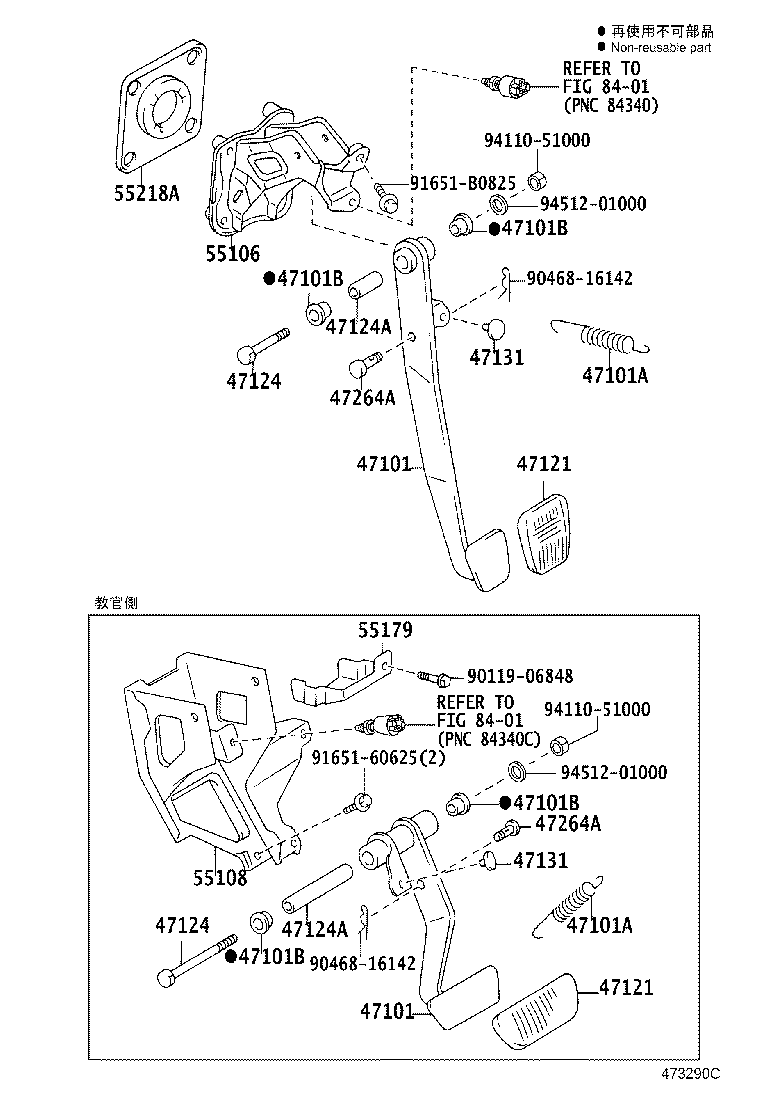

| Linked diagrams | ||||
| 8401 | ||||
