SXS11Y-BEPDK (1996)

Toyota Crown Comfort/Sed

Production Apr 1996 - Aug 2001
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-0108)SXS11

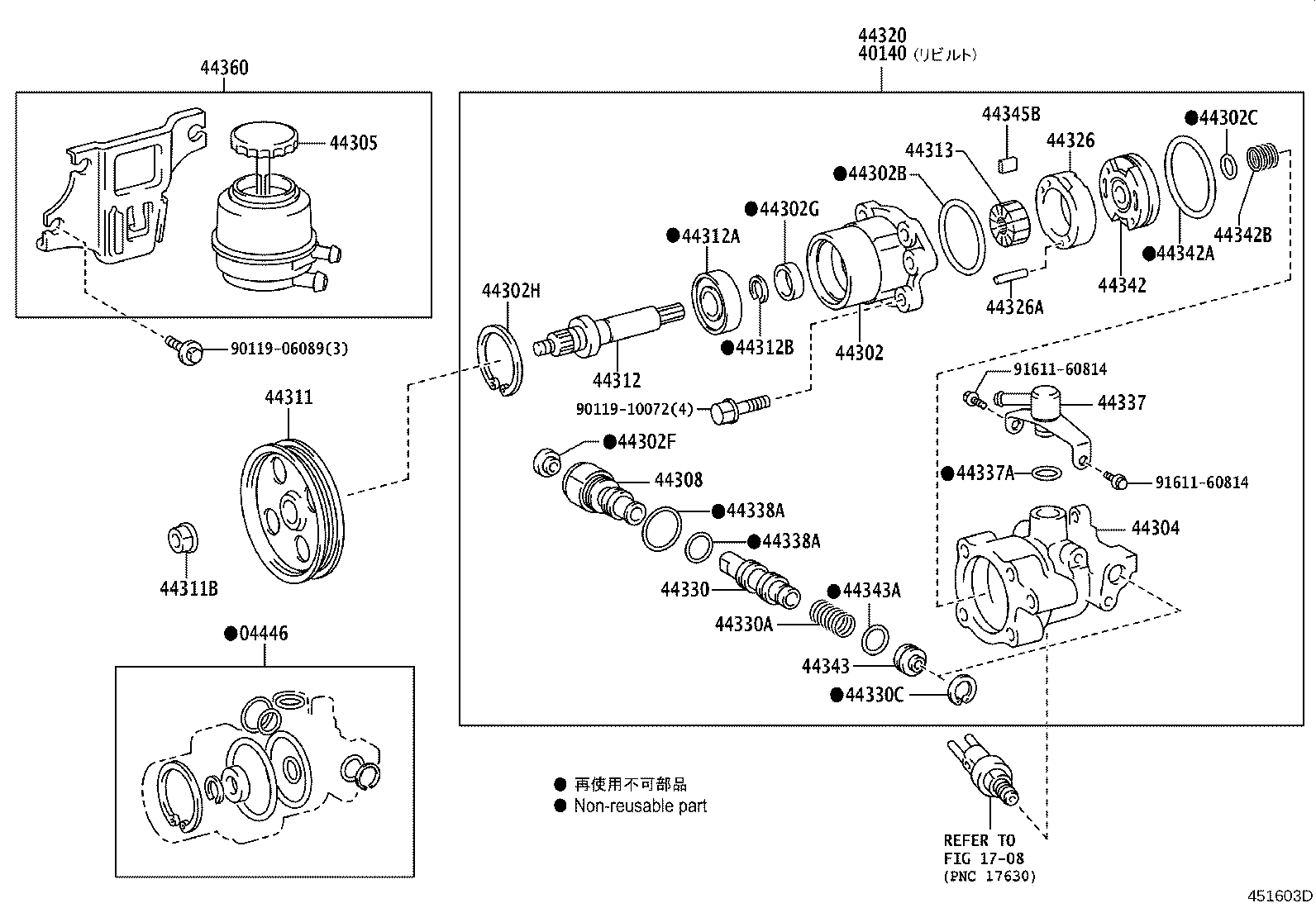

Click highlighted areas on diagram

diagram 04446 1708 40140 44302 44302B 44302C 44302F 44302G 44302H 44304 44305 44308 44311 44311B 44312 44312A 44312B 44313 44320 44326 44326A 44330 44330A 44330C 44337 44337A 44338A 44338A 44342 44342A 44342B 44343 44343A 44345B 44360 9011906089 9011910072 9161160814 9161160814
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-30141

SXS11,YXS1#

 1
40140 - PUMP ASSY,VANE REBUILT
40140-22460

SXS11

TOYODA KOKI

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-30110

LXS11,SXS11

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-60001

LXS11,SXS11,YXS1#

 1
90301-60001

GXS10,LXS11,SXS11,YXS1#

 1
44302C - RING, O, NO.2(FOR VANE PUMP HOUSING)
96711-19016

LXS11,SXS11,YXS1#

 1
96711-19016

GXS10,LXS11,SXS11,YXS1#

 1
44302F - SEAT, UNION(FOR VANE PUMP HOUSING)
90410-06006

SXS11

 1
90410-05035

GXS10,SXS11,YXS1#

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-17004

GXS10,LXS11,SXS11,YXS1#

 1
90311-17004

LXS11,SXS11,YXS1#

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-51003

GXS10,SXS11

 1
90521-51003

SXS11

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-22012

SXS11

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28020

GXS10,LXS11,SXS11

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-14041

GXS10,LXS11,SXS11,YXS1#

 1
44311 - PULLEY, VANE PUMP
44311-22100

SXS11

 1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003

GXS10,LXS11,SXS11,YXS1#

 1
90179-12022

GXS10,LXS11,SXS11,YXS1#

 1
44312 - SHAFT, VANE PUMP
44312-28010

LXS11,SXS11,YXS1#

 1
44312-28010

GXS10,LXS11,SXS11,YXS1#

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17011

GXS10,LXS11,SXS11,YXS1#

 1
90363-17011

LXS11,SXS11,YXS1#

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15005

LXS11,SXS11,YXS1#

 1
90520-15005

GXS10,LXS11,SXS11,YXS1#

 1
44313 - ROTOR, VANE PUMP
44313-22060

GXS10,LXS11,SXS11,YXS1#

ﾏｰｸ 2

 1
44313-22040

GXS10,LXS11,SXS11,YXS1#

ﾏｰｸ無し

 1
44313-22080

GXS10,LXS11,SXS11,YXS1#

ﾏｰｸ 4

 1
44313-22050

GXS10,LXS11,SXS11,YXS1#

ﾏｰｸ 1

 1
44313-22070

GXS10,LXS11,SXS11,YXS1#

ﾏｰｸ 3

 1
44320 - PUMP ASSY, VANE
44320-22460

SXS11

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-12050

LXS11,SXS11,YXS1#

ﾏｰｸ 4

 1
44325-12010

GXS10,LXS11,SXS11,YXS1#

ﾏｰｸ無し

 1
44325-12030

GXS10,LXS11,SXS11,YXS1#

ﾏｰｸ 2

 1
44325-12010

LXS11,SXS11,YXS1#

ﾏｰｸ無し

 1
44325-12020

LXS11,SXS11,YXS1#

ﾏｰｸ 1

 1
44325-12040

GXS10,LXS11,SXS11,YXS1#

ﾏｰｸ 3

 1
44325-12050

GXS10,LXS11,SXS11,YXS1#

ﾏｰｸ 4

 1
44325-12020

GXS10,LXS11,SXS11,YXS1#

ﾏｰｸ 1

 1
44325-12040

LXS11,SXS11,YXS1#

ﾏｰｸ 3

 1
44325-12030

LXS11,SXS11,YXS1#

ﾏｰｸ 2

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008

LXS11,SXS11,YXS1#

長さ=25,外径=5.0

 2
44330 - VALVE ASSY, FLOW CONTROL
44330-16111

SXS11

ﾏｰｸ E

 1
44330-16071

SXS11

ﾏｰｸ A

 1
44330-16091

SXS11

ﾏｰｸ C

 1
44330-16081

SXS11

ﾏｰｸ B

 1
44330-16101

SXS11

ﾏｰｸ D

 1
44330-16121

SXS11

ﾏｰｸ F

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103

GXS10,LXS11,SXS11,YXS1#

 1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700

LXS11,SXS11,YXS1#

 1
96151-01700

GXS10,LXS11,SXS11,YXS1#

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-22080

SXS11

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
96711-19013

GXS10,LXS11,SXS11,YXS1#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

GXS10,LXS11,SXS11,YXS1#

外径=25.5,内径=22.5

 1
96711-19014

GXS10,LXS11,SXS11,YXS1#

外径=17.0,内径=13.0

 1
96711-19014

LXS11,SXS11,YXS1#

外径=17.0,内径=13.0

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

GXS10,LXS11,SXS11,YXS1#

外径=25.5,内径=22.5

 1
96711-19014

GXS10,LXS11,SXS11,YXS1#

外径=17.0,内径=13.0

 1
96711-19014

LXS11,SXS11,YXS1#

外径=17.0,内径=13.0

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44341-12010

LXS11,SXS11,YXS1#

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53002

LXS11,SXS11,YXS1#

 1
90301-53002

GXS10,LXS11,SXS11,YXS1#

 1
44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
90501-23014

LXS11,SXS11,YXS1#

 1
90501-23014

GXS10,LXS11,SXS11,YXS1#

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-12040

LXS11,SXS11,YXS1#

 1
44343-12040

GXS10,LXS11,SXS11,YXS1#

 1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014

LXS11,SXS11,YXS1#

 1
44345B - PLATE, VANE PUMP
44345-12050

GXS10,LXS11,SXS11,YXS1#

長さ=14.989

 10
44345-12020

GXS10,LXS11,SXS11,YXS1#

長さ=14.995

 10
44345-12040

GXS10,LXS11,SXS11,YXS1#

長さ=14.991

 10
44345-12030

GXS10,LXS11,SXS11,YXS1#

長さ=14.993

 10
44345-12010

GXS10,LXS11,SXS11,YXS1#

長さ=14.997

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-22140

GXS10,SXS11

 1
Common parts
90119-06089
90119-10072
91611-60814
Linked diagrams
1708
