SXS11Y-BEPDK (1996)
Toyota Crown Comfort/Sed
(9604- )LXS11..4FC..DLX ; (9604- )SXS1#,YXS11..DLX

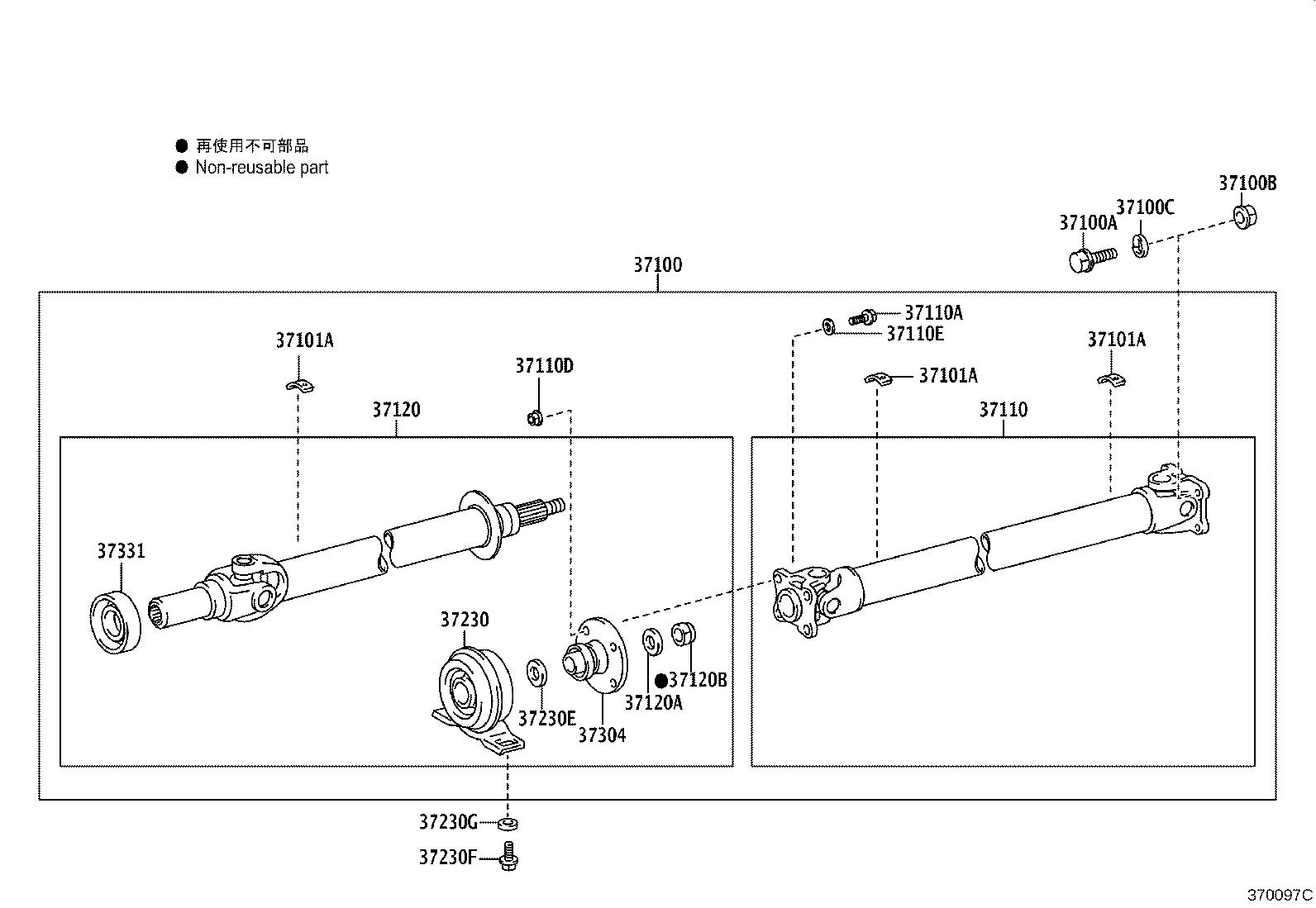

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-43070 |
SXS11..4FC;YXS11..5F..DLX |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90101-08082 |
LXS11..4FC..DLX;SXS11,YXS11..DLX |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90170-08015 |
LXS11..4FC..DLX;SXS11,YXS11..DLX |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 94512-00800 |
LXS11..4FC..DLX;SXS11,YXS11..DLX |
4 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01132 |
GXS10,LXS11,SXS11,YXS1# 10G,長さ=20.7 |
1 | ||
| 90937-01148 |
GXS10,LXS11,SXS11,YXS1# 4G,厚さ=2.0 |
1 | ||
| 90937-01136 |
GXS10,LXS11,SXS11,YXS1# 20G,長さ=41.4 |
1 | ||
| 90937-01150 |
GXS10,LXS11,SXS11,YXS1# 8G,長さ=16.6 |
1 | ||
| 90937-01154 |
GXS10,LXS11,SXS11,YXS1# 18G,長さ=37.3 |
1 | ||
| 90937-01312 |
GXS10,LXS11,SXS11,YXS1# 5G |
1 | ||
| 90937-01147 |
GXS10,LXS11,SXS11,YXS1# 2G,厚さ=2.0 |
1 | ||
| 90937-01156 |
GXS10,LXS11,SXS11,YXS1# 24G,長さ=49.7 |
1 | ||
| 90937-01311 |
GXS10,LXS11,SXS11,YXS1# 3G |
1 | ||
| 90937-01152 |
GXS10,LXS11,SXS11,YXS1# 14G,長さ=29.0 |
1 | ||
| 90937-01313 |
GXS10,LXS11,SXS11,YXS1# 7G,長さ=14.4 |
1 | ||
| 90937-01149 |
GXS10,LXS11,SXS11,YXS1# 6G,長さ=12.4 |
1 | ||
| 90937-01157 |
GXS10,LXS11,SXS11,YXS1# 26G,長さ=53.9 |
1 | ||
| 90937-01151 |
GXS10,LXS11,SXS11,YXS1# 12G,長さ=24.9 |
1 | ||
| 90937-01153 |
GXS10,LXS11,SXS11,YXS1# 16G,長さ=33.2 |
1 | ||
| 90937-01140 |
GXS10,LXS11,SXS11,YXS1# 30G,長さ=62.2 |
1 | ||
| 90937-01158 |
GXS10,LXS11,SXS11,YXS1# 28G,長さ=58.1 |
1 | ||
| 90937-01155 |
GXS10,LXS11,SXS11,YXS1# 22G,長さ=45.6 |
1 | ||
| 90937-01314 |
GXS10,LXS11,SXS11,YXS1# 9G,長さ=18.5 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01132 |
GXS10,LXS11,SXS11,YXS1# 10G,長さ=20.7 |
1 | ||
| 90937-01148 |
GXS10,LXS11,SXS11,YXS1# 4G,厚さ=2.0 |
1 | ||
| 90937-01136 |
GXS10,LXS11,SXS11,YXS1# 20G,長さ=41.4 |
1 | ||
| 90937-01150 |
GXS10,LXS11,SXS11,YXS1# 8G,長さ=16.6 |
1 | ||
| 90937-01154 |
GXS10,LXS11,SXS11,YXS1# 18G,長さ=37.3 |
1 | ||
| 90937-01312 |
GXS10,LXS11,SXS11,YXS1# 5G |
1 | ||
| 90937-01147 |
GXS10,LXS11,SXS11,YXS1# 2G,厚さ=2.0 |
1 | ||
| 90937-01156 |
GXS10,LXS11,SXS11,YXS1# 24G,長さ=49.7 |
1 | ||
| 90937-01311 |
GXS10,LXS11,SXS11,YXS1# 3G |
1 | ||
| 90937-01152 |
GXS10,LXS11,SXS11,YXS1# 14G,長さ=29.0 |
1 | ||
| 90937-01313 |
GXS10,LXS11,SXS11,YXS1# 7G,長さ=14.4 |
1 | ||
| 90937-01149 |
GXS10,LXS11,SXS11,YXS1# 6G,長さ=12.4 |
1 | ||
| 90937-01157 |
GXS10,LXS11,SXS11,YXS1# 26G,長さ=53.9 |
1 | ||
| 90937-01151 |
GXS10,LXS11,SXS11,YXS1# 12G,長さ=24.9 |
1 | ||
| 90937-01153 |
GXS10,LXS11,SXS11,YXS1# 16G,長さ=33.2 |
1 | ||
| 90937-01140 |
GXS10,LXS11,SXS11,YXS1# 30G,長さ=62.2 |
1 | ||
| 90937-01158 |
GXS10,LXS11,SXS11,YXS1# 28G,長さ=58.1 |
1 | ||
| 90937-01155 |
GXS10,LXS11,SXS11,YXS1# 22G,長さ=45.6 |
1 | ||
| 90937-01314 |
GXS10,LXS11,SXS11,YXS1# 9G,長さ=18.5 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01132 |
GXS10,LXS11,SXS11,YXS1# 10G,長さ=20.7 |
1 | ||
| 90937-01148 |
GXS10,LXS11,SXS11,YXS1# 4G,厚さ=2.0 |
1 | ||
| 90937-01136 |
GXS10,LXS11,SXS11,YXS1# 20G,長さ=41.4 |
1 | ||
| 90937-01150 |
GXS10,LXS11,SXS11,YXS1# 8G,長さ=16.6 |
1 | ||
| 90937-01154 |
GXS10,LXS11,SXS11,YXS1# 18G,長さ=37.3 |
1 | ||
| 90937-01312 |
GXS10,LXS11,SXS11,YXS1# 5G |
1 | ||
| 90937-01147 |
GXS10,LXS11,SXS11,YXS1# 2G,厚さ=2.0 |
1 | ||
| 90937-01156 |
GXS10,LXS11,SXS11,YXS1# 24G,長さ=49.7 |
1 | ||
| 90937-01311 |
GXS10,LXS11,SXS11,YXS1# 3G |
1 | ||
| 90937-01152 |
GXS10,LXS11,SXS11,YXS1# 14G,長さ=29.0 |
1 | ||
| 90937-01313 |
GXS10,LXS11,SXS11,YXS1# 7G,長さ=14.4 |
1 | ||
| 90937-01149 |
GXS10,LXS11,SXS11,YXS1# 6G,長さ=12.4 |
1 | ||
| 90937-01157 |
GXS10,LXS11,SXS11,YXS1# 26G,長さ=53.9 |
1 | ||
| 90937-01151 |
GXS10,LXS11,SXS11,YXS1# 12G,長さ=24.9 |
1 | ||
| 90937-01153 |
GXS10,LXS11,SXS11,YXS1# 16G,長さ=33.2 |
1 | ||
| 90937-01140 |
GXS10,LXS11,SXS11,YXS1# 30G,長さ=62.2 |
1 | ||
| 90937-01158 |
GXS10,LXS11,SXS11,YXS1# 28G,長さ=58.1 |
1 | ||
| 90937-01155 |
GXS10,LXS11,SXS11,YXS1# 22G,長さ=45.6 |
1 | ||
| 90937-01314 |
GXS10,LXS11,SXS11,YXS1# 9G,長さ=18.5 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-22300 |
LXS11..4FC..DLX;SXS11,YXS11..DLX |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90101-08082 |
LXS11..4FC..DLX;SXS11,YXS11..DLX *8−1.25PX25−12 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-08015 |
LXS11..4FC..DLX;SXS11,YXS11..DLX |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-00800 |
LXS11..4FC..DLX;SXS11,YXS11..DLX |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-43050 |
SXS11..4FC;YXS11..5F..DLX |
1 | ||
| 37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET) | ||||
| 90201-18182 |
GXS10,LXS11,SXS11,YXS1# 外径=33.5,厚さ=4.0 |
1 | ||
| 37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING) | ||||
| 90179-18009 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 37230E - WASHER, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-26005 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 90201-26005 |
SXS11,YXS11..DLX |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10046 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10008 |
GXS10,LXS11,SXS11,YXS1# 厚さ=4.5 |
1 | ||
| 90201-10017 |
GXS10,LXS11,SXS11,YXS1# 厚さ=9.0 |
1 | ||
| 90201-10106 |
GXS10,LXS11,SXS11,YXS1# 厚さ=2.0 |
1 | ||
| 90201-10033 |
GXS10,LXS11,SXS11,YXS1# 厚さ=6.5 |
1 | ||
| 90201-10034 |
GXS10,LXS11,SXS11,YXS1# 厚さ=11.0 |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-22013 |
LXS11..4FC..DLX;SXS11,YXS11..DLX |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
