SXS11Y-BEPDK (1996)

Toyota Crown Comfort/Sed

Production Apr 1996 - Aug 2001
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

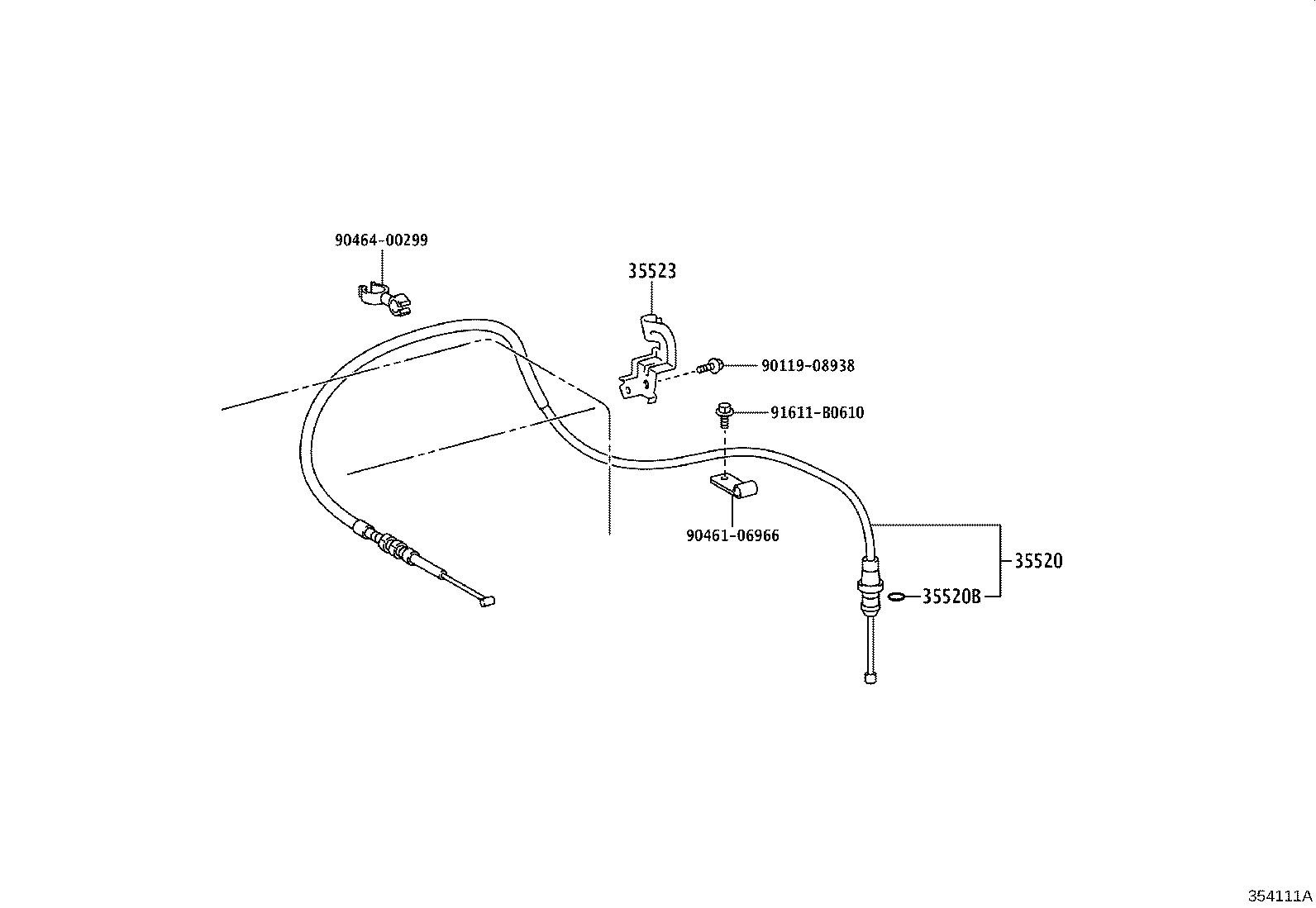

ILLUST NO. 2 OF 2(9604-0108)SXS11..4FC

Click highlighted areas on diagram

A42D

diagram 35520 35520B 35523 9011908938 9046106966 9046400299 91611B0610
Part # Description Qty Price
35520 - CABLE ASSY, THROTTLE
35520-22240

SXS11..4FC

 1
35520B - RING, O(FOR THROTTLE CABLE)
90301-09012

GXS10,LXS11,SXS11,YXS1#..ATM

 1
35523 - CLAMP, THROTTLE CABLE
35523-22120

SXS11..4FC

 1
Common parts
90119-08938
90461-06966
90464-00299
91611-B0610
