SXS11Y-BEPDK (1996)

Toyota Crown Comfort/Sed

Production Apr 1996 - Aug 2001
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-0108)4SFE

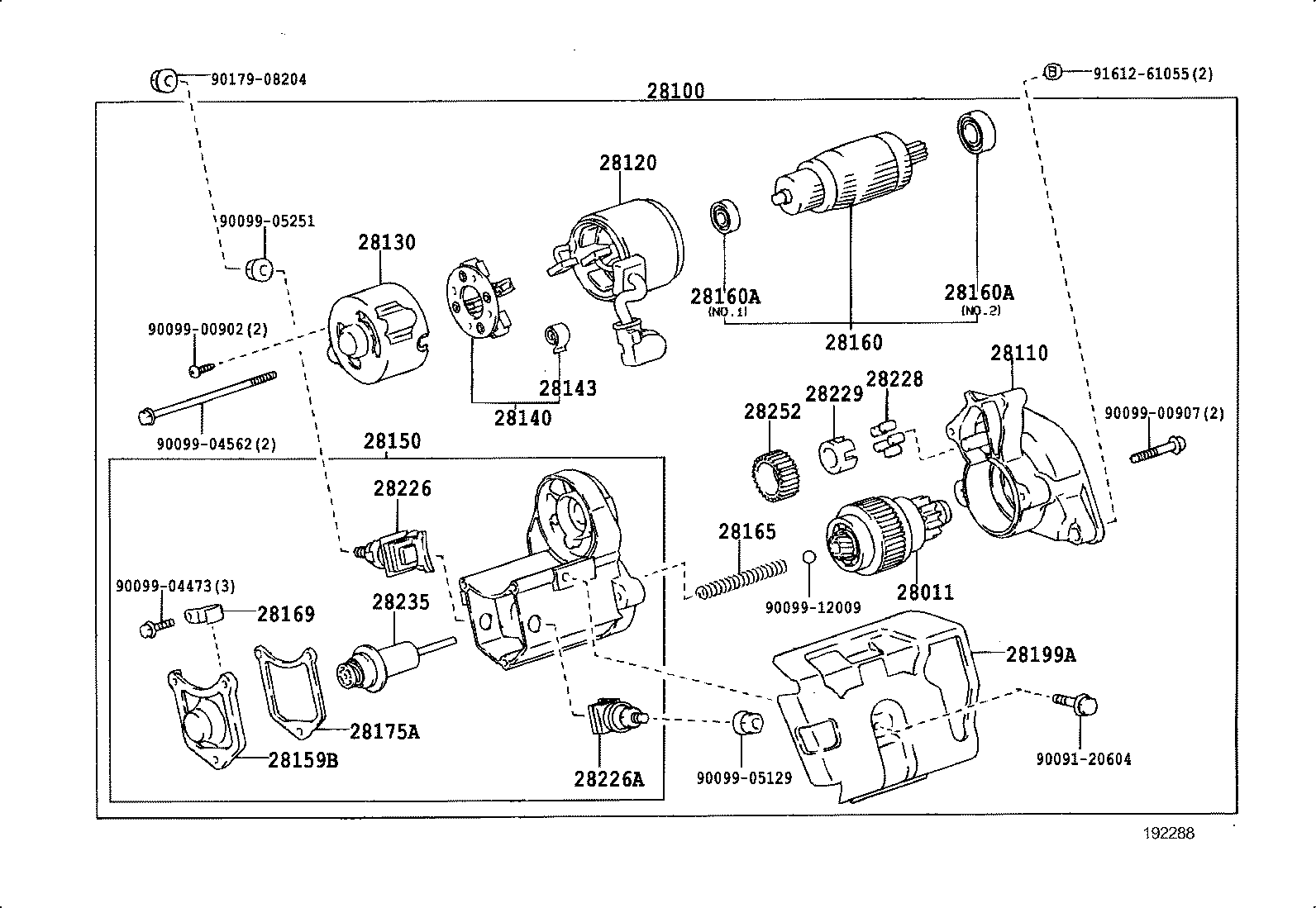

Click highlighted areas on diagram

12V 1.0KW

diagram 28011 28100 28110 28120 28130 28140 28143 28150 28159B 28160 28160A 28160A 28165 28169 28175A 28199A 28226 28226A 28228 28229 28235 28252 9009120604 9009900902 9009900907 9009904473 9009904562 9009905129 9009905251 9009912009 9017908204 9161261055
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

 1
28100 - STARTER ASSY
28100-74190

4SFE..SXS11

12V 1.0KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-63050

4SFE..SXS11

 1
28120 - YOKE ASSY, STARTER
28120-26071

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

12V 1.0KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-74040

4SFE..SXS11

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070

4SFE..SXS11

 2
28143 - SPRING, STARTER BRUSH
90099-17112

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-74190

4SFE..SXS11

 1
28159B - COVER, MAGNET SWITCH
28159-10040

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

 1
28160 - ARMATURE ASSY, STARTER
28160-26071

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

12V 1.0KW

 1
28160A - BEARING, STARTER ARMATURE
90099-10113

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

NO.2

 1
28253-45020

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

NO.1

 1
28160A - BEARING, STARTER ARMATURE
90099-10113

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

NO.2

 1
28253-45020

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

NO.1

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

 1
28169 - CLAMP, STARTER MOTOR LEAD WIRE
28169-10040

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

 1
28175A - GASKET, MAGNET SWITCH COVER
28175-10040

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

 1
28199A - PROTECTOR, DUST STARTER
28199-63050

4SFE..SXS11

 1
28226 - STARTER KIT, BATTERY TERMINAL
28226-74190

4SFE..SXS11

 1
28226-72050

4SFE..SXS11

 1
28226-64100

4SFE..SXS11

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-72010

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

 1
28235 - PLUNGER, MAGNET SWITCH
28235-35080

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

12V 1.0KW

 1
28252 - GEAR, STARTER IDLE
28254-45020

1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#

 1
Common parts
90091-20604
90099-00902
90099-00907
90099-04473
90099-04562
90099-05129
90099-05251
90099-12009
90179-08204
91612-61055
