Toyota Crown comfort/sed SXS11 ALTERNATOR

SXS11Y-BEPDK (1996)

Toyota Crown Comfort/Sed

Production Apr 1996 - Aug 2001

Engine 4SFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9604-0108)4SFE

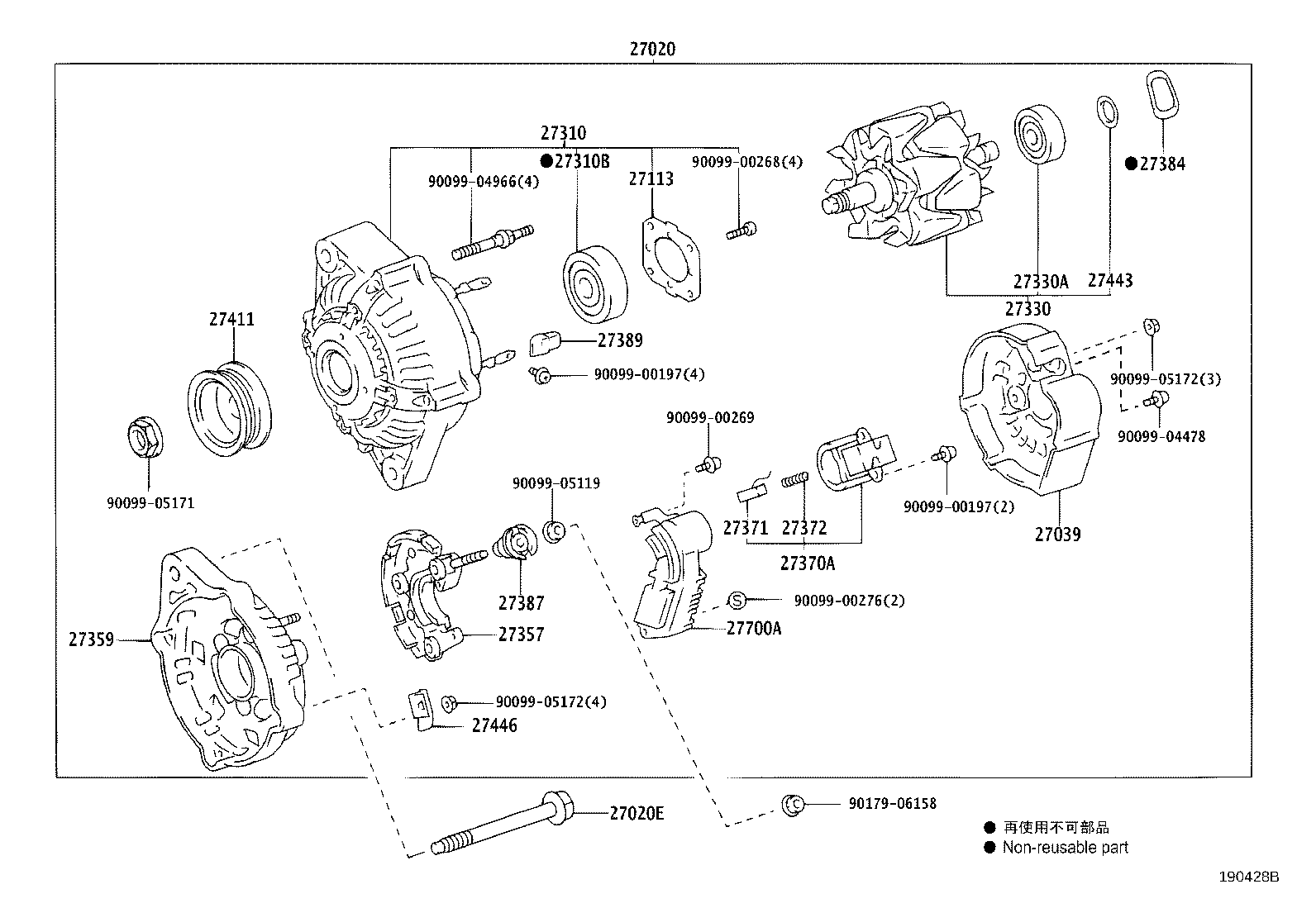

Click highlighted areas on diagram

12V 70A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-74590	4SFE..SXS11..4FC 12V 80A	04/1996 - 08/2001	1
27020E - BOLT(FOR ALTERNATOR)
90105-10249	4SFE..SXS11	04/1996 - 08/2001	1
27039 - COVER, ALTERNATOR REAR END
27039-55080	3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11	12/1995 - 01/1997	1
27039-70470	4SFE,3YPE..SXS11,YXS1#..ATM	04/2001 - 08/2001	1
27039-55080	4SFE,3YPE..SXS11,YXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS10..4FC,4HC,5F	01/1997 - 04/2001	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-42010	3YPE..YXS11..SG;1GGPE,4SFE..GXS10,SXS11..ATM	12/1995 - 01/1997	1
27312-42010	1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#..ATM	01/1997 - 08/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-74120	4SFE..SXS11..4FC	04/1996 - 08/2001	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192	4SFE..SXS11..4FC	04/1996 - 08/2001	1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030	4SFE..SXS11..4FC	04/1996 - 07/2000	1
27330-16390	4SFE..SXS11..4FC	07/2000 - 08/2001	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#	12/1995 - 08/2001	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080	4SFE,3YPE..SXS11,YXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS10..4FC,4HC,5F	01/1997 - 08/2001	1
27357-55080	3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11	12/1995 - 01/1997	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-74330	4SFE..SXS11..4FC	04/1996 - 08/2001	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	2LTE..LXS11;4SFE..SXS11..4FC	12/1995 - 08/2001	1
27384 - WASHER
27384-50030	3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11	12/1995 - 01/1997	1
27384-50030	4SFE,3YPE..SXS11,YXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS10..4FC,4HC,5F	01/1997 - 08/2001	1
27387 - INSULATOR, TERMINAL
27387-42020	3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11	12/1995 - 01/1997	1
27387-42020	4SFE,3YPE..SXS11,YXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS10..4FC,4HC,5F	01/1997 - 05/1997	1
27387-42020	1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#..ATM	05/1997 - 08/1997	1
27387-42021	4SFE..SXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS1# ｵﾙﾀﾈ-ﾀ 12V 70A OR 12V 80A	08/1997 - 08/2001	1
27389 - INSULATOR, TERMINAL
27389-42010	3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11	12/1995 - 01/1997	4
27389-42010	4SFE,3YPE..SXS11,YXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS10..4FC,4HC,5F	01/1997 - 08/2001	4
27411 - PULLEY, ALTERNATOR
27411-42030	4SFE..SXS11..4FC	04/1996 - 08/2001	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#	12/1995 - 08/2001	1
27446 - CLIP, ALTERNATOR CORD
27446-74370	4SFE..SXS11	04/1996 - 08/2001	1
27700A - REGULATOR ASSY, GENERATOR
27700-74040	4SFE..SXS11	04/1996 - 08/2001	1
Common parts
90099-00197
90099-00268
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
90179-06158

(9604-0108)4SFE

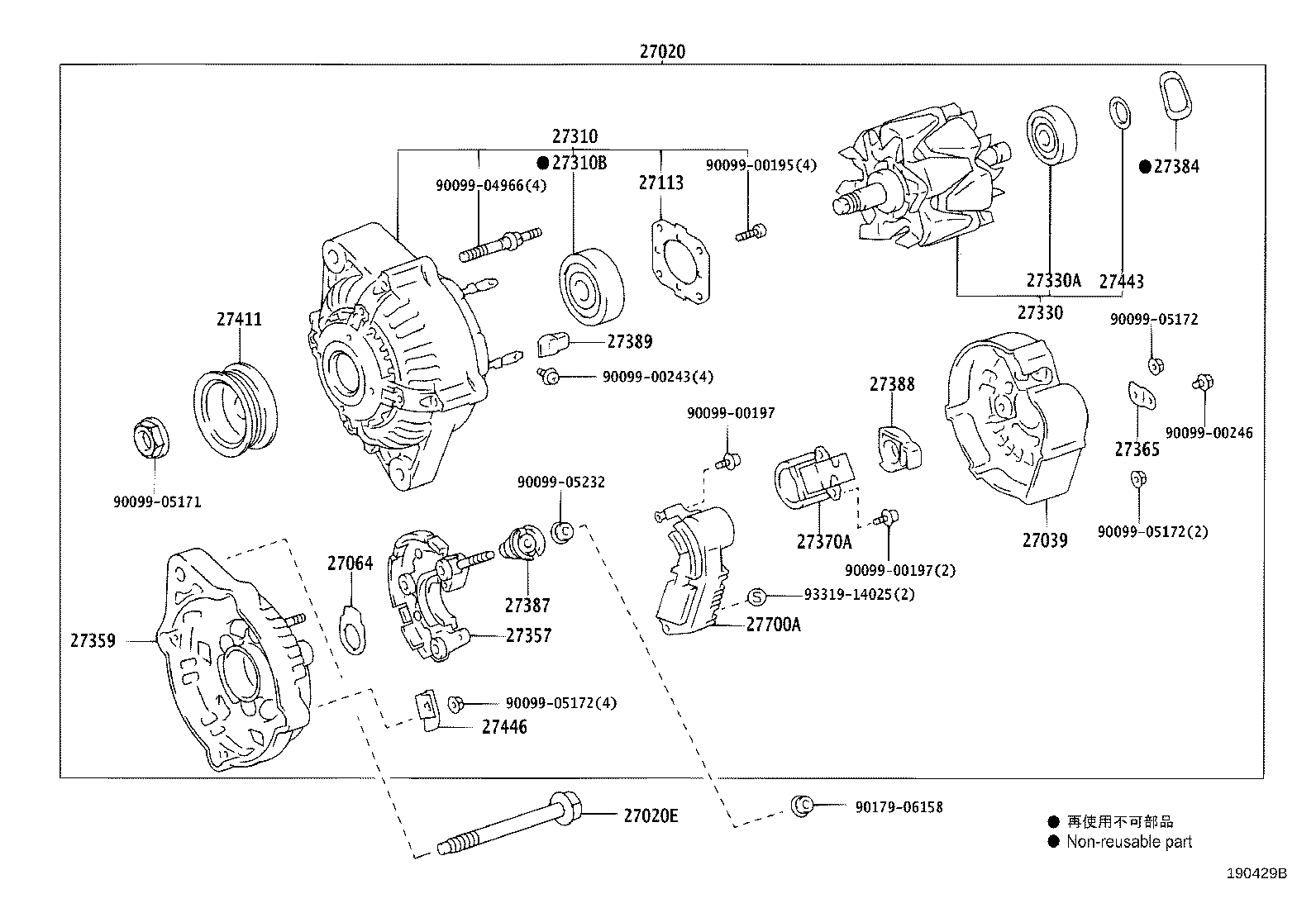

Click highlighted areas on diagram

12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-74590	4SFE..SXS11..4FC 12V 80A	04/1996 - 08/2001	1
27020E - BOLT(FOR ALTERNATOR)
90105-10249	4SFE..SXS11	04/1996 - 08/2001	1
27039 - COVER, ALTERNATOR REAR END
27039-55080	3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11	12/1995 - 01/1997	1
27039-70470	4SFE,3YPE..SXS11,YXS1#..ATM	04/2001 - 08/2001	1
27039-55080	4SFE,3YPE..SXS11,YXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS10..4FC,4HC,5F	01/1997 - 04/2001	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	4SFE..SXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS1#	12/1995 - 08/2001	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-42010	3YPE..YXS11..SG;1GGPE,4SFE..GXS10,SXS11..ATM	12/1995 - 01/1997	1
27312-42010	1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#..ATM	01/1997 - 08/2001	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-74120	4SFE..SXS11..4FC	04/1996 - 08/2001	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192	4SFE..SXS11..4FC	04/1996 - 08/2001	1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030	4SFE..SXS11..4FC	04/1996 - 07/2000	1
27330-16390	4SFE..SXS11..4FC	07/2000 - 08/2001	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#	12/1995 - 08/2001	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080	4SFE,3YPE..SXS11,YXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS10..4FC,4HC,5F	01/1997 - 08/2001	1
27357-55080	3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11	12/1995 - 01/1997	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-74330	4SFE..SXS11..4FC	04/1996 - 08/2001	1
27365 - PLATE, TERMINAL
27365-55080	4SFE..SXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS1#	12/1995 - 08/2001	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	2LTE..LXS11;4SFE..SXS11..4FC	12/1995 - 08/2001	1
27384 - WASHER
27384-50030	3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11	12/1995 - 01/1997	1
27384-50030	4SFE,3YPE..SXS11,YXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS10..4FC,4HC,5F	01/1997 - 08/2001	1
27387 - INSULATOR, TERMINAL
27387-42020	3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11	12/1995 - 01/1997	1
27387-42020	4SFE,3YPE..SXS11,YXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS10..4FC,4HC,5F	01/1997 - 05/1997	1
27387-42020	1GGPE,4SFE,3YPE..GXS10,SXS11,YXS1#..ATM	05/1997 - 08/1997	1
27387-42021	4SFE..SXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS1# ｵﾙﾀﾈ-ﾀ 12V 70A OR 12V 80A	08/1997 - 08/2001	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	4SFE..SXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS1#	12/1995 - 08/2001	1
27389 - INSULATOR, TERMINAL
27389-42010	3YPE..YXS11..SG;4SFE..SXS11..4FC;1GGPE,2LTE..GXS10,LXS11	12/1995 - 01/1997	4
27389-42010	4SFE,3YPE..SXS11,YXS11..4FC;1GGPE,2LTE,3YPE..GXS10,LXS11,YXS10..4FC,4HC,5F	01/1997 - 08/2001	4
27411 - PULLEY, ALTERNATOR
27411-42030	4SFE..SXS11..4FC	04/1996 - 08/2001	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1GGPE,2LTE,4SFE,3YPE..GXS10,LXS11,SXS11,YXS1#	12/1995 - 08/2001	1
27446 - CLIP, ALTERNATOR CORD
27446-74370	4SFE..SXS11	04/1996 - 08/2001	1
27700A - REGULATOR ASSY, GENERATOR
27700-74040	4SFE..SXS11	04/1996 - 08/2001	1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05171
90099-05172
90099-05232
90179-06158
93319-14025

SXS11Y-BEPDK (1996)

(9604-0108)4SFE

(9604-0108)4SFE
