SXS11Y-BEPDK (1996)

Toyota Crown Comfort/Sed

Production Apr 1996 - Aug 2001
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-0108)4SFE

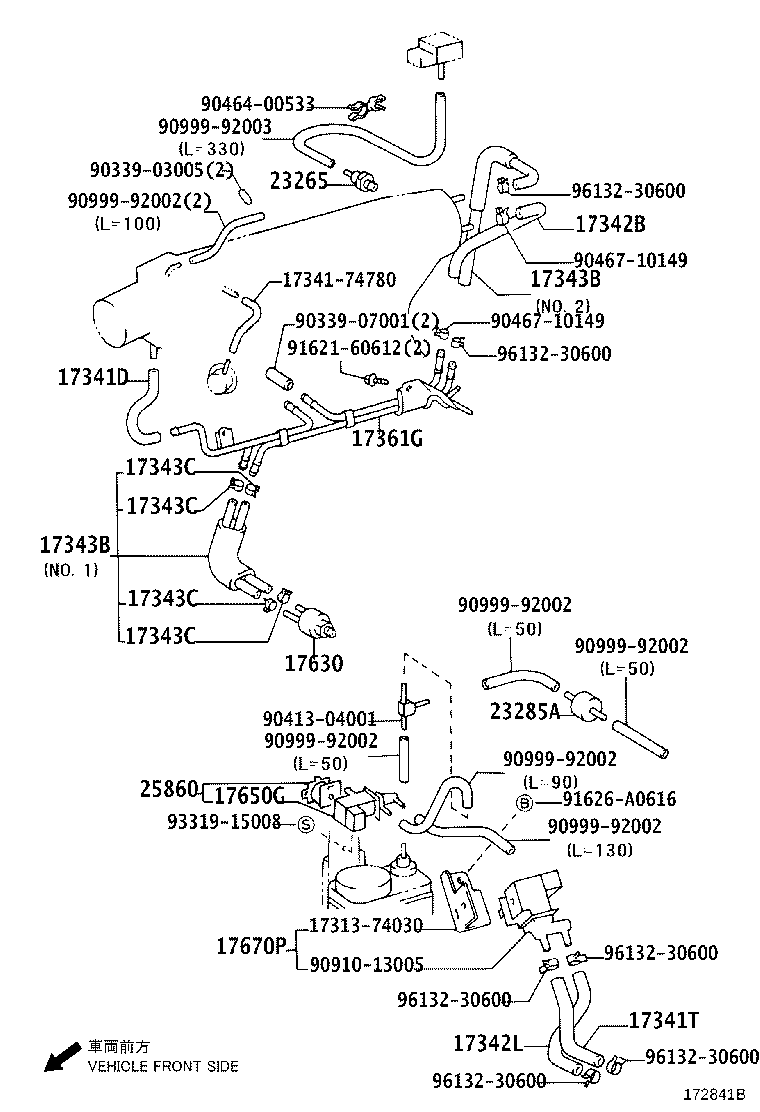

Click highlighted areas on diagram

diagram 1731374030 1734174780 17341D 17341T 17342B 17342L 17343B 17343B 17343C 17343C 17343C 17343C 17361G 17630 17650G 17670P 23265 23285A 25860 9033903005 9033907001 9041304001 9046400533 9046710149 9046710149 9091013005 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9162160612 91626A0616 9331915008 9613230600 9613230600 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74270

4SFE..SXS11

 1
17341T - HOSE, AIR, NO.1
17341-74700

4SFE..SXS11

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-74080

4SFE..SXS11

 1
17342L - HOSE, AIR, NO.2
17342-74220

4SFE..SXS11

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74080

4SFE..SXS11

NO.1

 1
17343-74150

4SFE..SXS11

NO.2

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74080

4SFE..SXS11

NO.1

 1
17343-74150

4SFE..SXS11

NO.2

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099

4SFE..SXS11

 4
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099

4SFE..SXS11

 4
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099

4SFE..SXS11

 4
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10099

4SFE..SXS11

 4
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74120

4SFE..SXS11

 1
17630 - VALVE ASSY, AIR CONTROL
17630-70020

4SFE..SXS11

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12122

4SFE..SXS11

 1
17670P - VALVE ASSY, AIR BY-PASS
17670-74030

4SFE..SXS11

 1
23265 - FILTER, GAS, NO.1
90917-11037

4SFE..SXS11

 1
90917-11022

4SFE..SXS11

 1
23285A - VALVE, CHECK, NO.1
90917-10080

4SFE..SXS11

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-74240

4SFE..SXS11

 1
Common parts
17313-74030
17341-74780
90339-03005
90339-07001
90413-04001
90464-00533
90467-10149
90910-13005
90999-92002
90999-92003
91621-60612
91626-A0616
93319-15008
96132-30600
