SXS11Y-BEPDK (1996)

Toyota Crown Comfort/Sed

Production Apr 1996 - Aug 2001
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )3SFE,4SFE

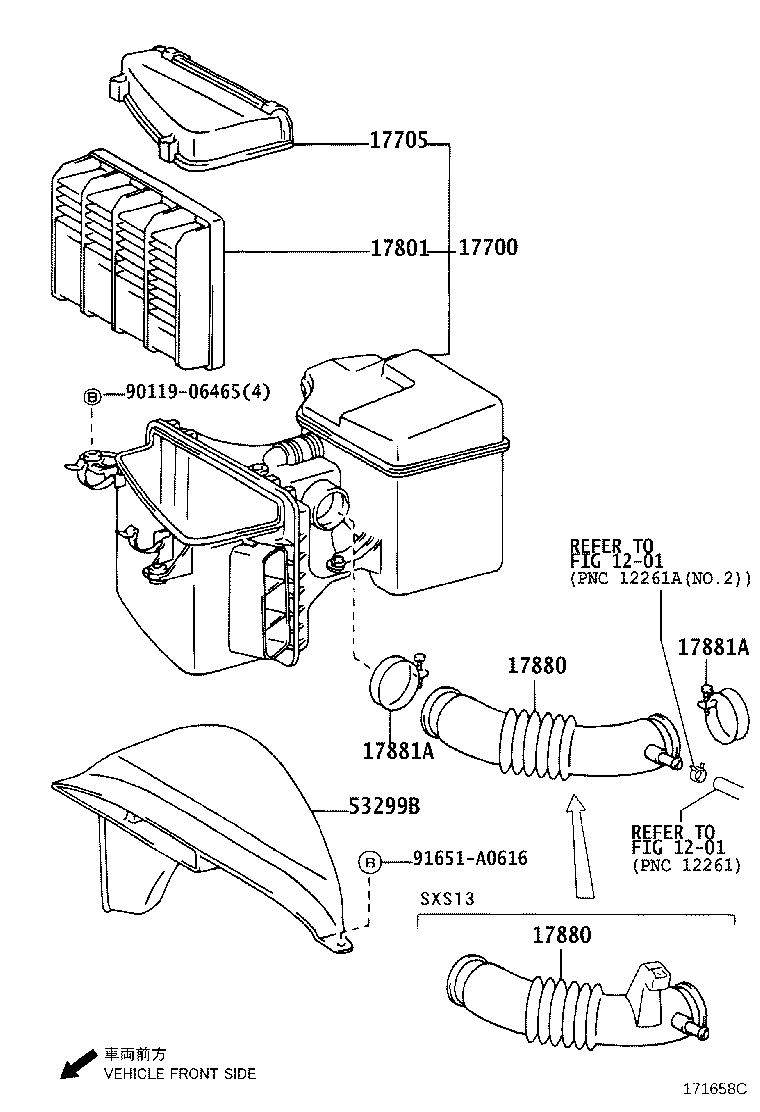

Click highlighted areas on diagram

diagram 1201 1201 17700 17705 17801 17880 17880 17881A 17881A 53299B 9011906465 91651A0616
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-74570

4SFE..SXS11

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-73150

4SFE..SXS11

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46060

4SFE..SXS11

 1
17880 - HOSE ASSY, AIR CLEANER
17880-74610

4SFE..SXS11

 1
17880 - HOSE ASSY, AIR CLEANER
17880-74610

4SFE..SXS11

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

4SFE..SXS11

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10710

4SFE..SXS11

 2
53299B - DUCT, COOL AIR INTAKE
53299-43010

SXS11

 1
Common parts
90119-06465
91651-A0616
Linked diagrams
1201
