SXS11Y-BEPDK (1996)

Toyota Crown Comfort/Sed

Production Apr 1996 - Aug 2001
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-0108)4SFE

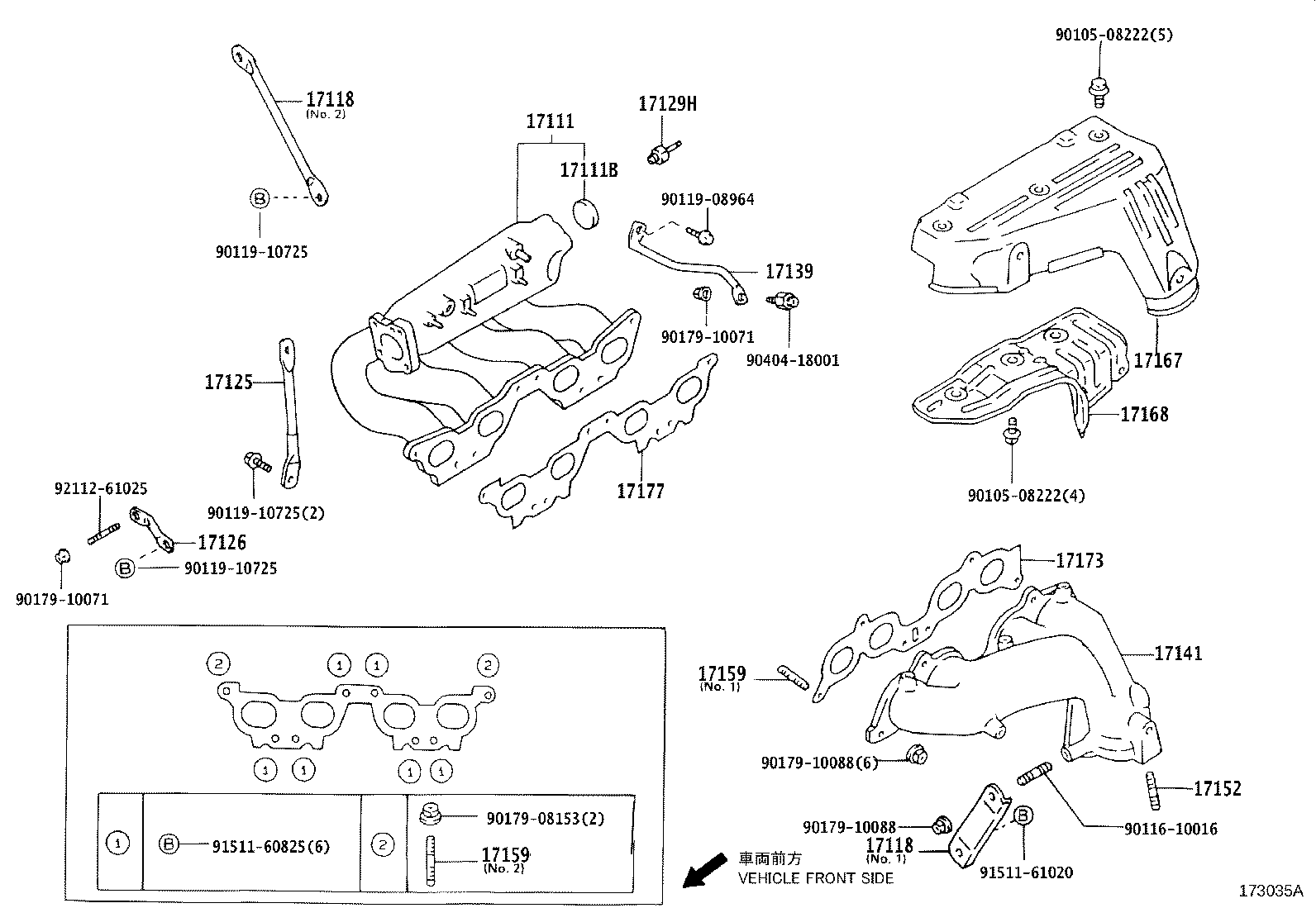

Click highlighted areas on diagram

diagram 17111 17111B 17118 17118 17125 17126 17129H 17139 17141 17152 17159 17159 17167 17168 17173 17177 9010508222 9010508222 9011610016 9011908964 9011910725 9011910725 9011910725 9017908153 9017910071 9017910071 9017910088 9017910088 9040418001 9151160825 9151161020 9211261025
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-74250

4SFE..SXS11

 1
17111B - PLUG, NO.2
96411-44000

4SFE..SXS11

 1
17118 - STAY, MANIFOLD
17118-74120

4SFE..SXS11

NO.1

 1
17118-74210

4SFE..SXS11

NO.2

 1
17118 - STAY, MANIFOLD
17118-74120

4SFE..SXS11

NO.1

 1
17118-74210

4SFE..SXS11

NO.2

 1
17125 - STAY, SURGE TANK, NO.1
17125-74130

4SFE..SXS11

 1
17126 - STAY, SURGE TANK, NO.2
17126-74050

4SFE..SXS11

 1
17129H - UNION, NO.4
90404-51026

4SFE..SXS11

 1
17139 - STAY, MANIFOLD, NO.2
17139-74170

4SFE..SXS11

 1
17141 - MANIFOLD, EXHAUST
17141-74220

4SFE..SXS11

 1
17141-74101

4SFE..SXS11

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

4SFE..SXS11

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08375

4SFE..SXS11

NO.2

 2
90116-10063

4SFE..SXS11

NO.1

 6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08375

4SFE..SXS11

NO.2

 2
90116-10063

4SFE..SXS11

NO.1

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-74121

4SFE..SXS11

 1
17167-74260

4SFE..SXS11

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-74050

4SFE..SXS11

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-74040

4SFE..SXS11

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-74070

4SFE..SXS11

 1
Common parts
90105-08222
90116-10016
90119-08964
90119-10725
90179-08153
90179-10071
90179-10088
90404-18001
91511-60825
91511-61020
92112-61025
