SXS11Y-BEPDK (1996)
Toyota Crown Comfort/Sed

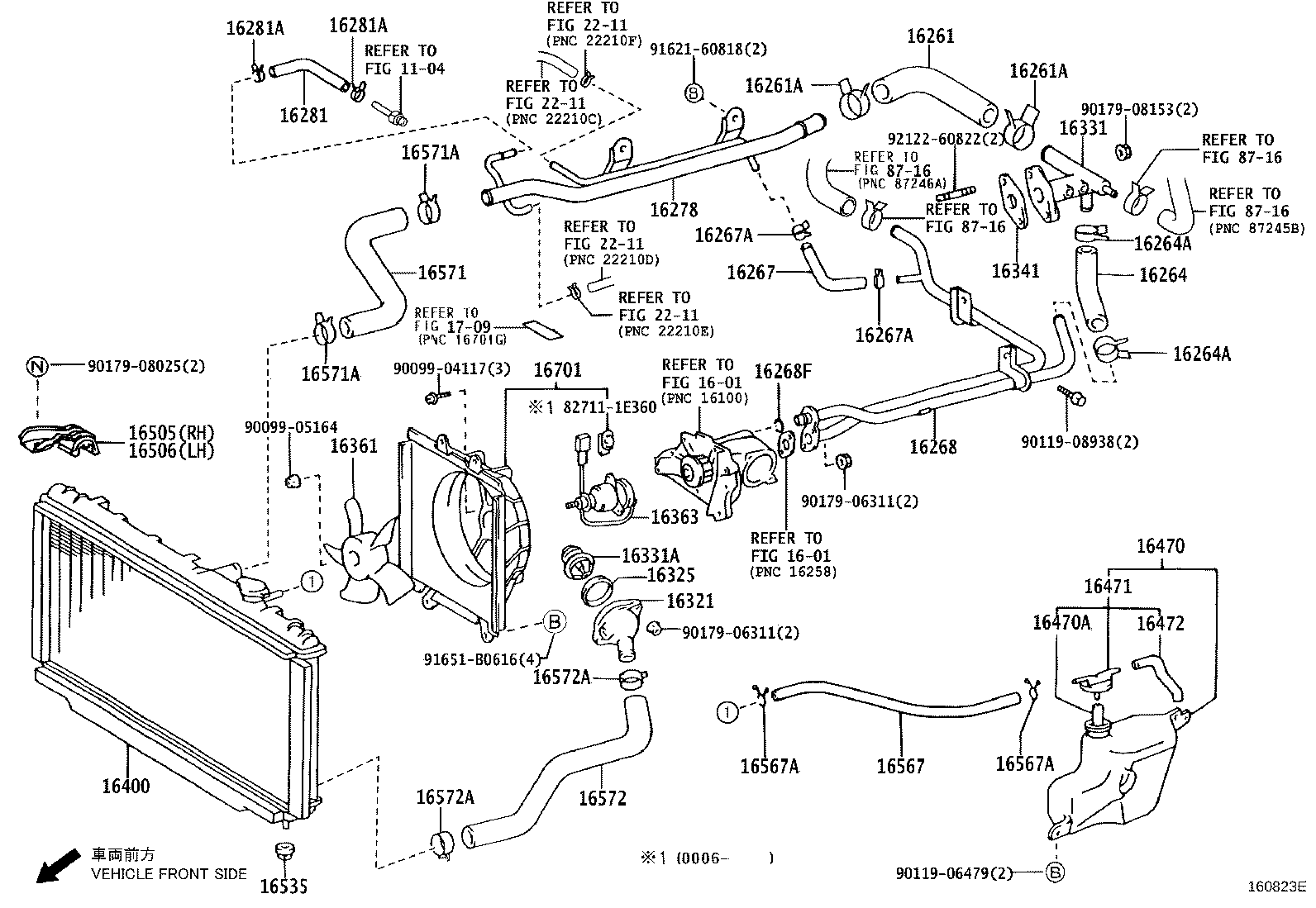

ILLUST NO. 1 OF 2(9604-0108)4SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-74030 |
4SFE..SXS11 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-34004 |
4SFE..SXS11 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-34004 |
4SFE..SXS11 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-74090 |
4SFE..SXS11 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22003 |
4SFE..SXS11 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-22003 |
4SFE..SXS11 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-74070 |
4SFE..SXS11 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13050 |
4SFE..SXS11 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-13050 |
4SFE..SXS11 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-74130 |
4SFE..SXS11 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
4SFE..SXS11 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-74030 |
4SFE..SXS11 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-74030 |
4SFE..SXS11 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13050 |
4SFE..SXS11 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-13050 |
4SFE..SXS11 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-74030 |
4SFE..SXS11 |
1 | ||
| 16321-74050 |
4SFE..SXS11 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
4SFE..SXS11 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-74160 |
4SFE..SXS11 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03090 |
4SFE..SXS11 *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-74020 |
4SFE..SXS11 |
1 | ||
| 16361 - FAN | ||||
| 16361-11020 |
4SFE..SXS11 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-16040 |
4SFE..SXS11 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-7A230 |
4SFE..SXS11..4FC |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54320 |
4SFE..SXS11 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4SFE..SXS11 *H,L=230 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54290 |
4SFE..SXS11 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-95A01 |
4SFE..SXS11 |
1 | ||
| 16505 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 16505-74010 |
4SFE..SXS11 |
1 | ||
| 16506 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 16506-74010 |
4SFE..SXS11 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40010 |
4SFE..SXS11 |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4SFE..SXS11 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4SFE..SXS11 |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
4SFE..SXS11 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74350 |
4SFE..SXS11 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
4SFE..SXS11 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34004 |
4SFE..SXS11 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74280 |
4SFE..SXS11 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
4SFE..SXS11 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34004 |
4SFE..SXS11 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74530 |
4SFE..SXS11 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90119-06479 | ||||
| 90119-08938 | ||||
| 90179-06311 | ||||
| 90179-08025 | ||||
| 90179-08153 | ||||
| 91621-60818 | ||||
| 91651-B0616 | ||||
| 92122-60822 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1601 | ||||
| 1709 | ||||
| 2211 | ||||
| 8716 | ||||

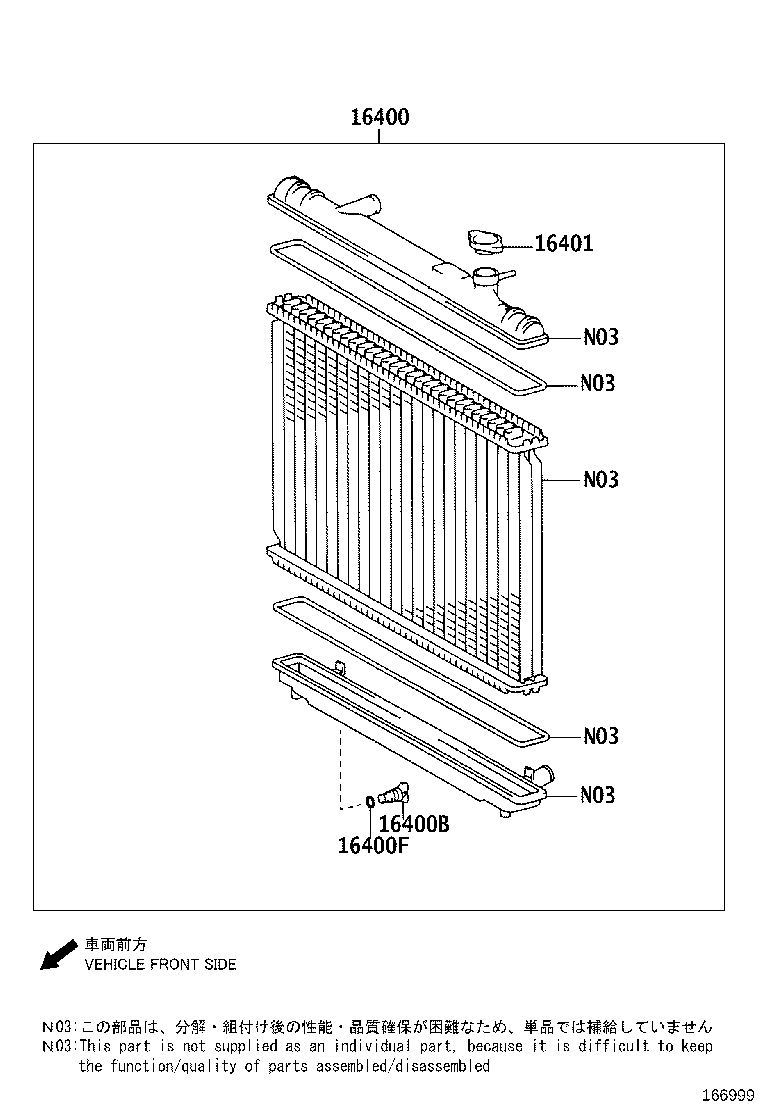

ILLUST NO. 2 OF 2(9604-0108)4SFE ; (0108- )3SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-7A230 |
4SFE..SXS11..4FC |
1 | ||
| 16400-7A230 |
4SFE..SXS11..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
4SFE..SXS11 |
1 | ||
| 23322-54010 |
4SFE..SXS11 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
4SFE..SXS11 |
1 | ||
| 96711-19007 |
4SFE..SXS11 |
1 | ||
| 16492-21050 |
4SFE..SXS11 |
1 | ||
| 16492-21050 |
4SFE..SXS11 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-72090 |
4SFE..SXS11 |
1 | ||
| 16401-72090 |
4SFE..SXS11 |
1 | ||
