SXS11Y-BEPDK (1996)

Toyota Crown Comfort/Sed

Production Apr 1996 - Aug 2001
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-9609)4SFE

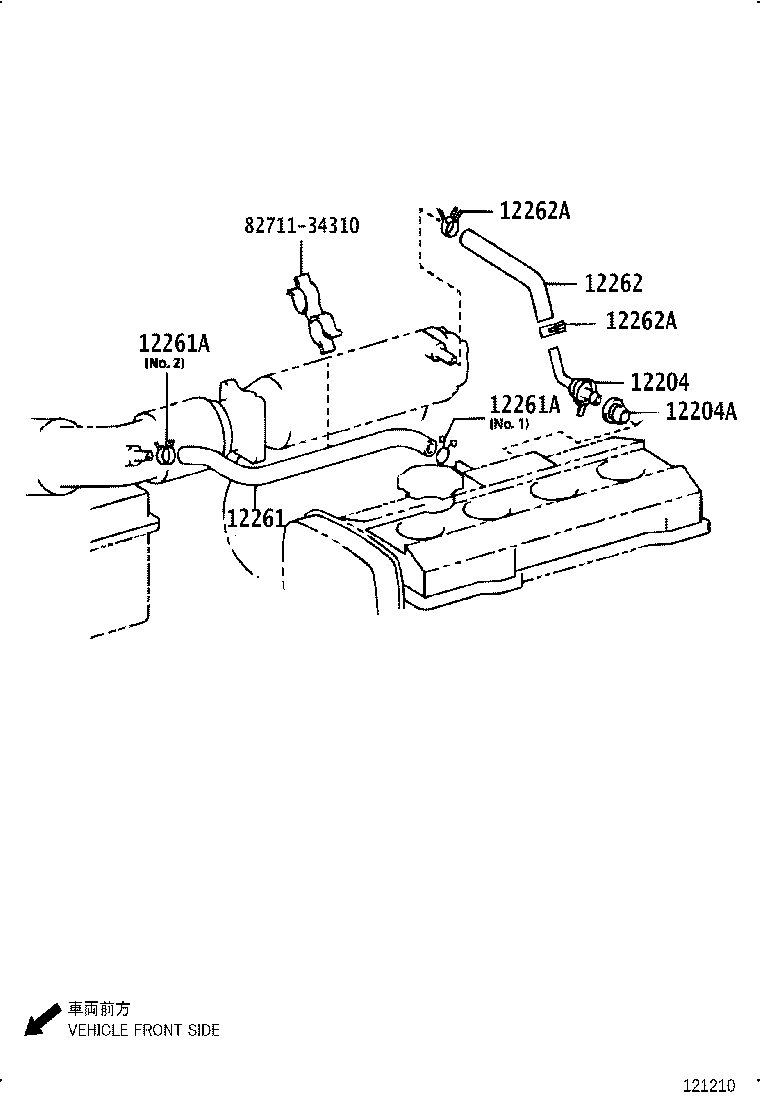

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262 12262A 12262A 8271134310
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-74030

4SFE..SXS11

 1
12204-74020

4SFE..SXS11

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

4SFE..SXS11

 1
12261 - HOSE, VENTILATION
12261-74100

4SFE..SXS11

 1
12261-74200

4SFE..SXS11

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

4SFE..SXS11

NO.1

 1
90467-15016

4SFE..SXS11

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

4SFE..SXS11

NO.1

 1
90467-15016

4SFE..SXS11

NO.2

 1
12262 - HOSE, VENTILATION, NO.2
12262-74120

4SFE..SXS11

 1
12262-74140

4SFE..SXS11

 1
12262-74070

4SFE..SXS11

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14043

4SFE..SXS11

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14043

4SFE..SXS11

 2
Common parts
82711-34310

(9609- )3SFE,4SFE

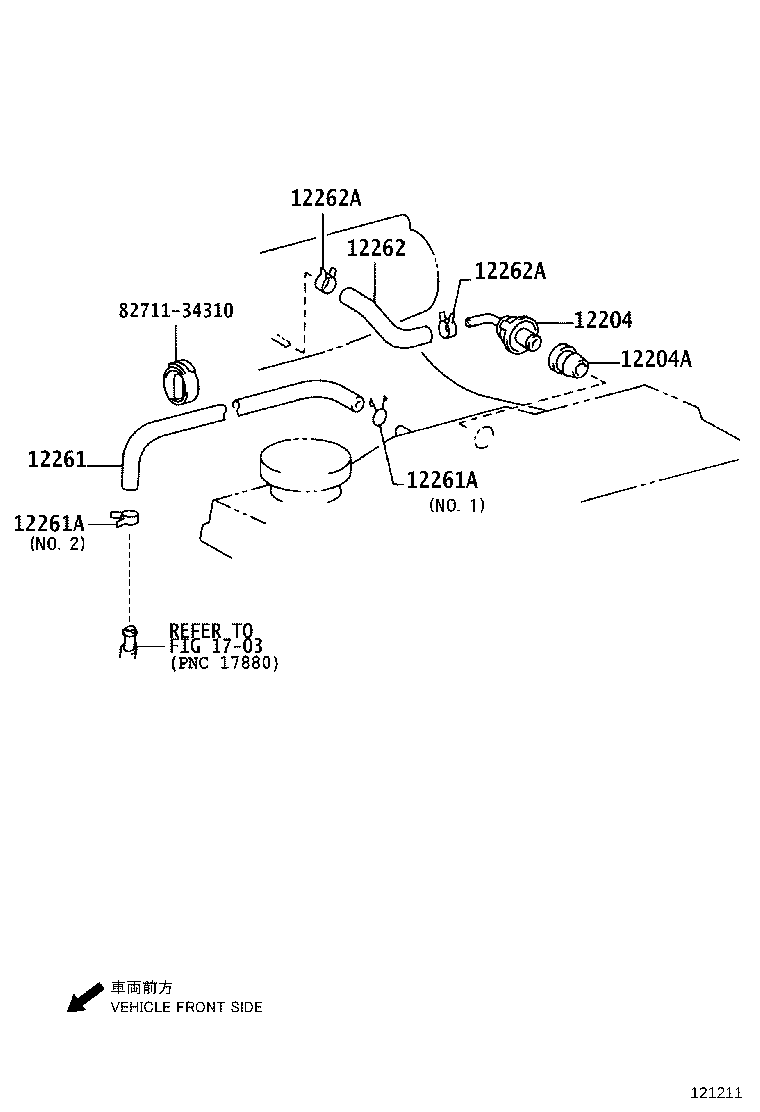

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262 12262A 12262A 1703 8271134310
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-74030

4SFE..SXS11

 1
12204-74020

4SFE..SXS11

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

4SFE..SXS11

 1
12261 - HOSE, VENTILATION
12261-74100

4SFE..SXS11

 1
12261-74200

4SFE..SXS11

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

4SFE..SXS11

NO.1

 1
90467-15016

4SFE..SXS11

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

4SFE..SXS11

NO.1

 1
90467-15016

4SFE..SXS11

NO.2

 1
12262 - HOSE, VENTILATION, NO.2
12262-74120

4SFE..SXS11

 1
12262-74140

4SFE..SXS11

 1
12262-74070

4SFE..SXS11

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14043

4SFE..SXS11

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14043

4SFE..SXS11

 2
Common parts
82711-34310
Linked diagrams
1703
