SXS11Y-BEPDK (1996)

Toyota Crown Comfort/Sed

Production Apr 1996 - Aug 2001
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-0108)4SFE

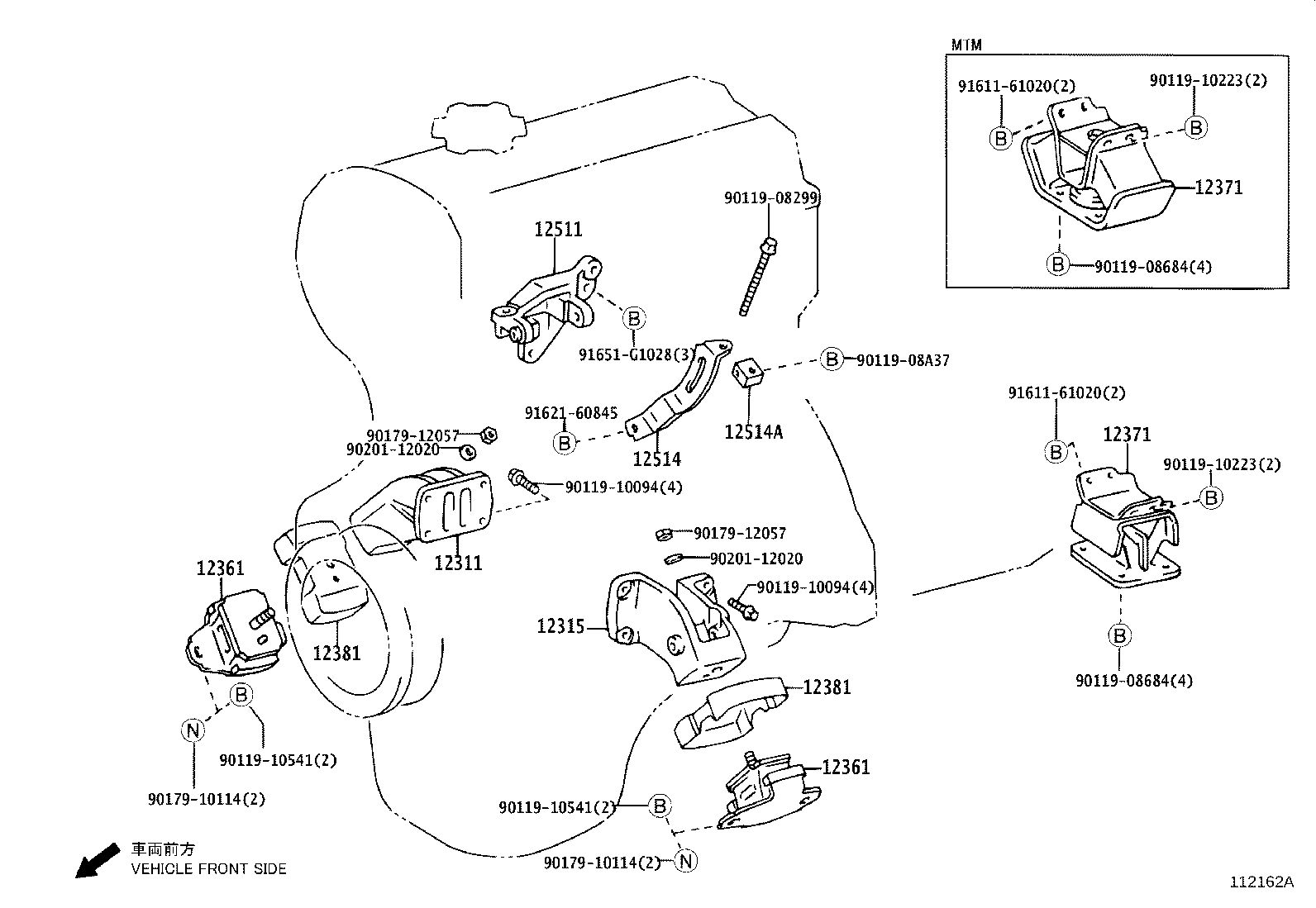

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12381 12381 12511 12514 12514A 9011908299 9011908684 9011908684 9011908A37 9011910094 9011910094 9011910223 9011910223 9011910541 9011910541 9017910114 9017910114 9017912057 9017912057 9020112020 9020112020 9161161020 9161161020 9162160845 91651G1028
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-74070

4SFE..SXS11

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-74050

4SFE..SXS11

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-74090

4SFE..SXS11

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-74090

4SFE..SXS11

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54040

4SFE..SXS11..4FC

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54040

4SFE..SXS11..4FC

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

4SFE..SXS11

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

4SFE..SXS11

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-74051

4SFE..SXS11

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-74011

4SFE..SXS11

 1
12514-74012

4SFE..SXS11

 1
12514A - SLIDER, FAN BELT ADJUSTING
16385-64011

4SFE..SXS11

 1
Common parts
90119-08299
90119-08684
90119-08A37
90119-10094
90119-10223
90119-10541
90179-10114
90179-12057
90201-12020
91611-61020
91621-60845
91651-G1028
