LXS11Y-BEPDT (1996)
Toyota Crown Comfort/Sed
Production
Apr 1996
-
Aug 1999
Engine
2LTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

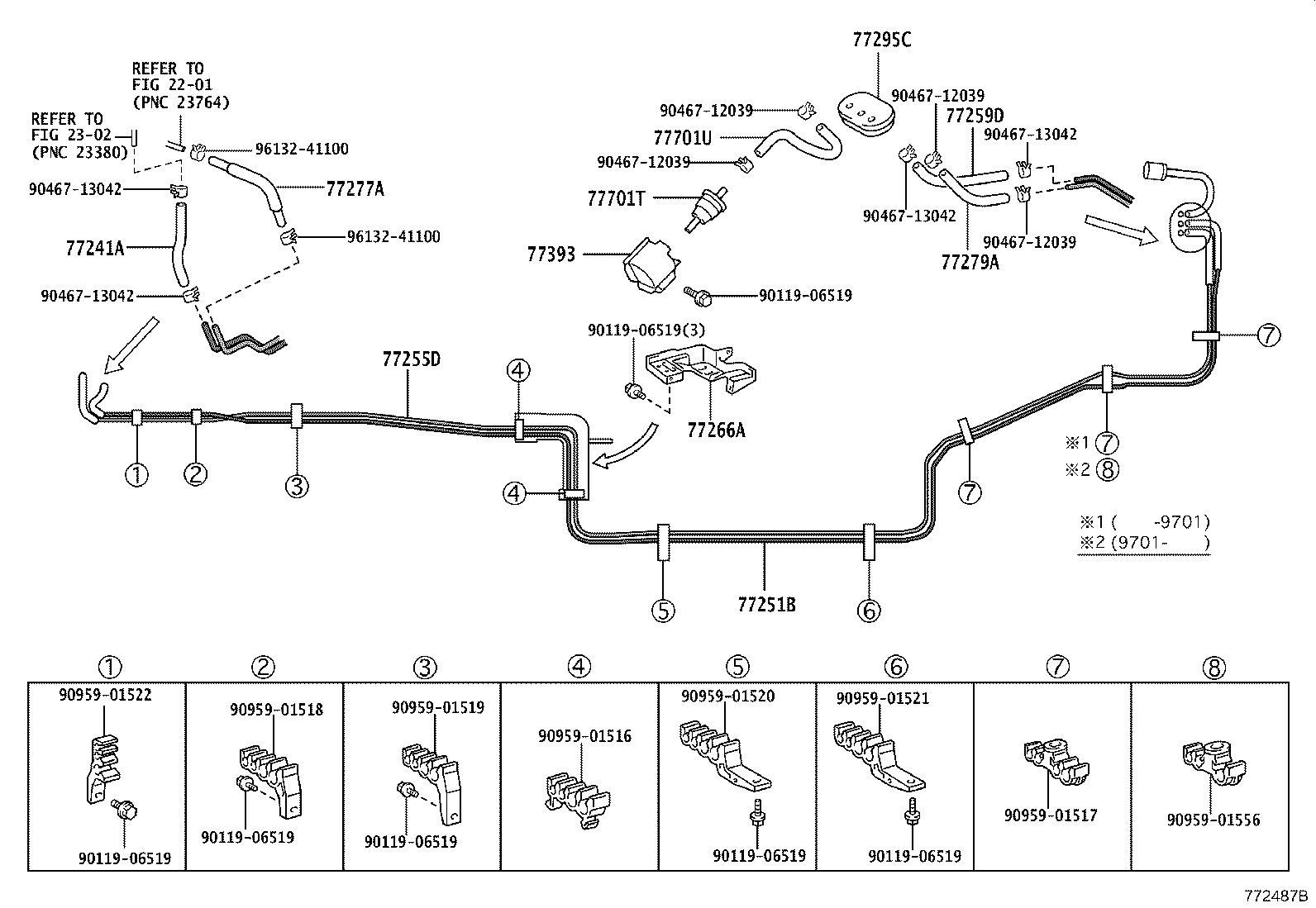

ILLUST NO. 2 OF 2(9512-9908)LXS11
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08030 |
LXS11 *H,L=220,内径=7.6 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-43050 |
LXS11 |
1 | ||
| 77251-43051 |
LXS11 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-43020 |
LXS11 |
1 | ||
| 77255-43021 |
LXS11 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-43010 |
LXS11 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-43020 |
GXS10,LXS11 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12100 |
LXS11 長さ=290 |
1 | ||
| 77279A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.3) | ||||
| 77279-43010 |
LXS11 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-43010 |
LXS11,SXS11 |
1 | ||
| 77393 - PROTECTOR, CHECK VALVE | ||||
| 77393-22010 |
LXS11 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
LXS11 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
LXS11 *H,L=260 |
1 | ||
| Common parts | ||||
| 90119-06519 | ||||
| 90467-12039 | ||||
| 90467-13042 | ||||
| 90959-01516 | ||||
| 90959-01517 | ||||
| 90959-01518 | ||||
| 90959-01519 | ||||
| 90959-01520 | ||||
| 90959-01521 | ||||
| 90959-01522 | ||||
| 90959-01556 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2302 | ||||

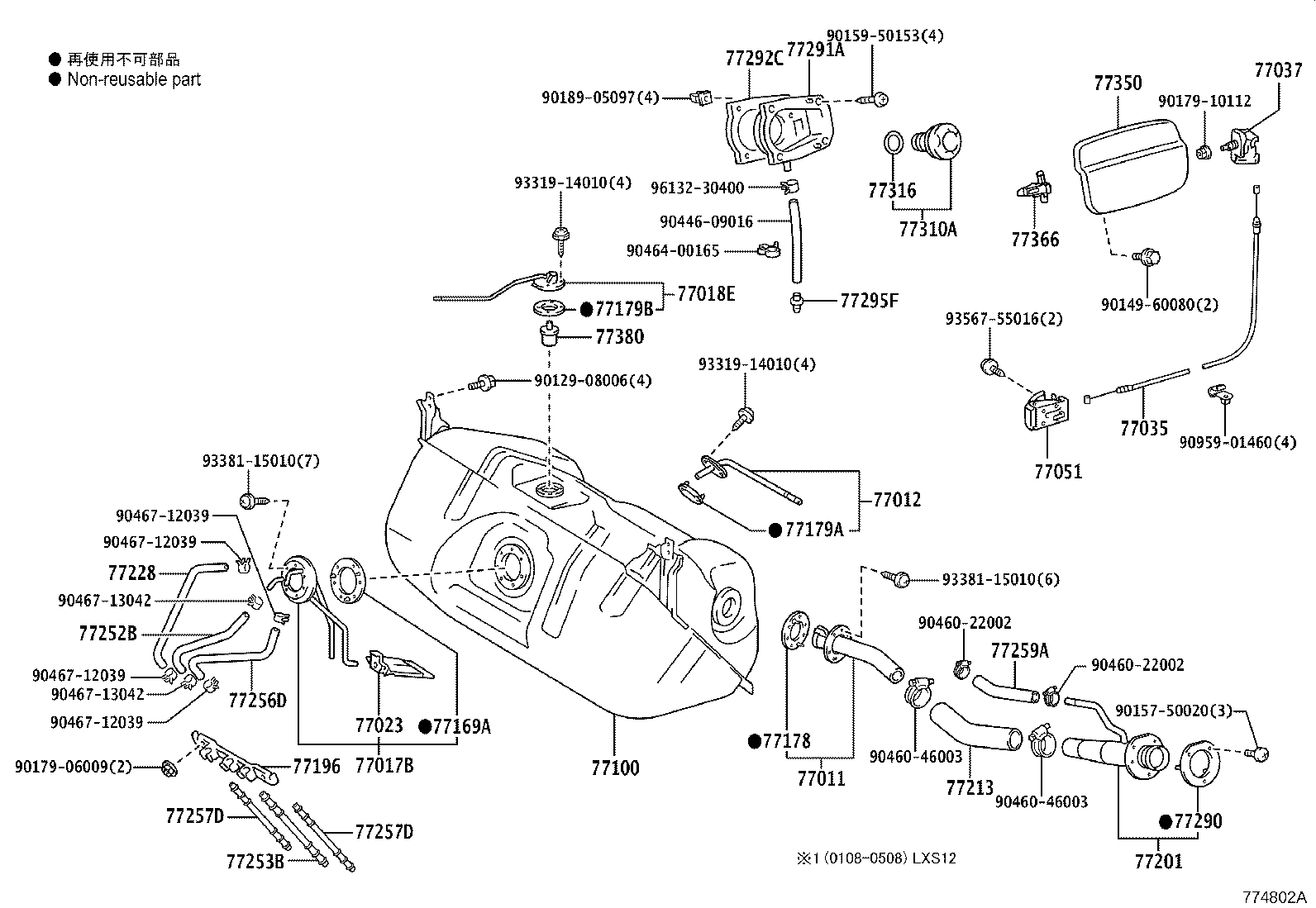

ILLUST NO. 1 OF 2(9512-9908)LXS11
Click highlighted areas on diagram
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-43010 |
LXS11,SXS11 |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-43010 |
LXS11,SXS11 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-43010 |
LXS11 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-43010 |
LXS11,SXS11 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-31020 |
LXS11 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-43020 |
LXS11,SXS11 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-90K00 |
LXS11,SXS11 |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060C0 |
LXS11,SXS11 BLACK,TRIM1# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-43020 |
LXS11,SXS11 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
LXS11,SXS11 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
LXS11,SXS11 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
LXS11,SXS11 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
LXS11,SXS11 |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-43010 |
LXS11,SXS11 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-43020 |
LXS11,SXS11 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-43010 |
LXS11 |
1 | ||
| 77228 - TUBE, FUEL TANK EVAPORATION VENT, NO.2 | ||||
| 77228-43010 |
LXS11,SXS11 |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 77252-43010 |
LXS11 |
1 | ||
| 77253B - HOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE) | ||||
| 77253-43010 |
LXS11 |
1 | ||
| 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) | ||||
| 77256-43010 |
LXS11 |
1 | ||
| 77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE) | ||||
| 77257-43010 |
LXS11,SXS11 |
2 | ||
| 77257D - HOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE) | ||||
| 77257-43010 |
LXS11,SXS11 |
2 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 95311-13019 |
LXS11,SXS11 長さ=190 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-30050 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-30040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77292-30030 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 77295-43020 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-32011 |
LXS11 |
1 | ||
| 77310-12150 |
LXS11 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
LXS11,SXS11 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-12030 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
LXS11,SXS11 |
1 | ||
| Common parts | ||||
| 90129-08006 | ||||
| 90149-60080 | ||||
| 90157-50020 | ||||
| 90159-50153 | ||||
| 90179-06009 | ||||
| 90179-10112 | ||||
| 90189-05097 | ||||
| 90446-09016 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00165 | ||||
| 90467-12039 | ||||
| 90467-13042 | ||||
| 90959-01460 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93567-55016 | ||||
| 96132-30400 | ||||
