LXS11Y-BEPDT (1996)
Toyota Crown Comfort/Sed
Production
Apr 1996
-
Aug 1999
Engine
2LTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9512-9908)2LTE

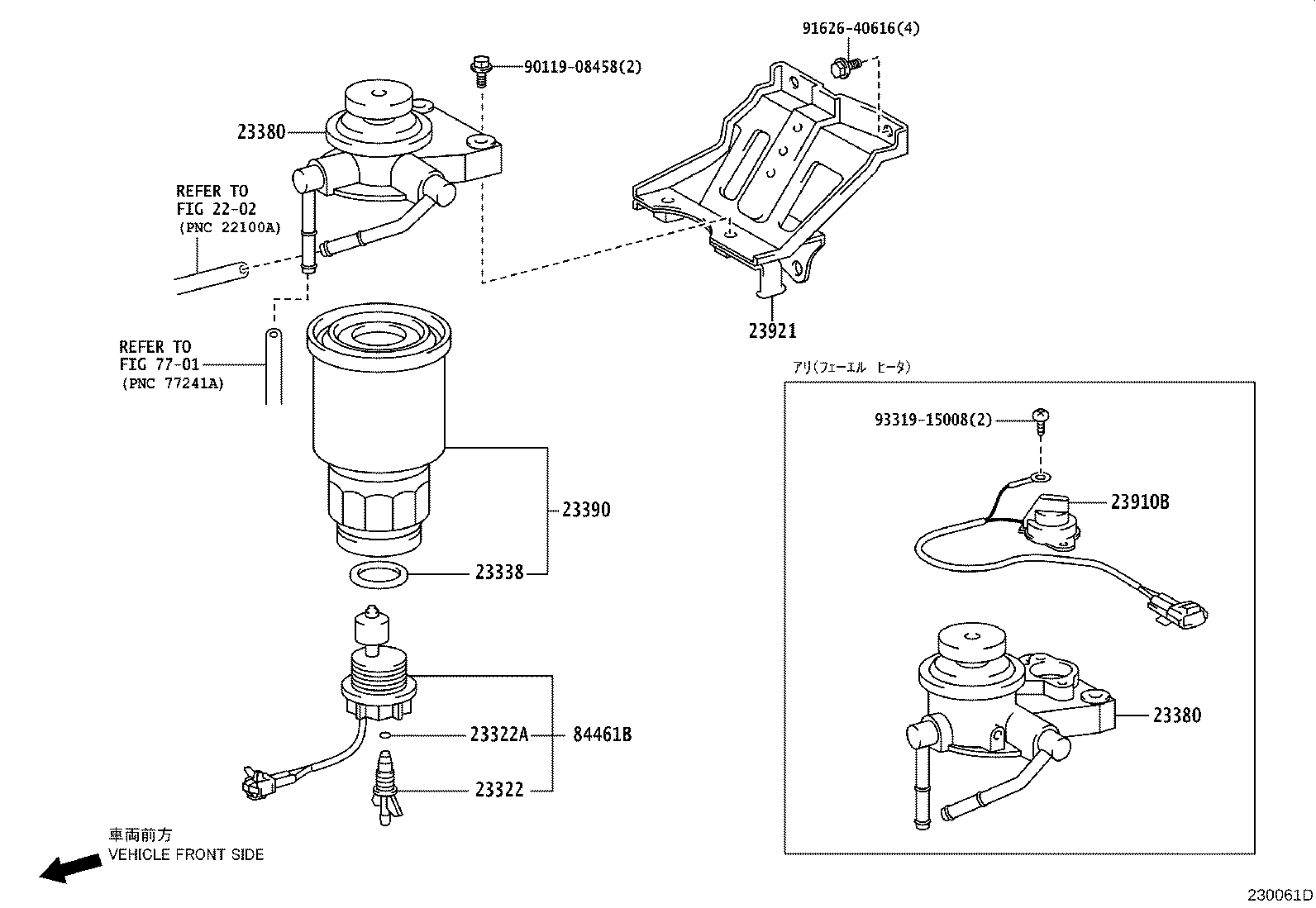

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64010 |
2LTE..LXS11 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
2LTE..LXS11 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
2LTE..LXS11 |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-54861 |
2LTE..LXS11 ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ) |
1 | ||
| 23380-54880 |
2LTE..LXS11 |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-54861 |
2LTE..LXS11 ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ) |
1 | ||
| 23380-54880 |
2LTE..LXS11 |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23390-64450 |
2LTE..LXS11 |
1 | ||
| 23910B - HEATER ASSY, FUEL | ||||
| 23910-54090 |
2LTE..LXS11 ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ) |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54390 |
2LTE..LXS11 |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-35060 |
LXS11 |
1 | ||
| Common parts | ||||
| 90119-08458 | ||||
| 91626-40616 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 7701 | ||||
