LXS11Y-BEMDT (1996)
Toyota Crown Comfort/Sed
ILLUST NO. 2 OF 6(9512-0108)
ｴﾝｼﾞﾝ ﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
2LTE..LXS11 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
2LTE..LXS11 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54360 |
2LTE..LXS11 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GXS10,LXS11,SXS11,YXS1# 10A |
1 | ||
| 90982-09007 |
GXS10,LXS11,SXS11,YXS1# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09004 |
GXS10,LXS11,SXS11,YXS1# 20A,黄 |
1 | ||
| 90982-09005 |
GXS10,LXS11,SXS11,YXS1# 7.5A |
1 | ||
| 90982-09009 |
GXS10,LXS11,SXS11,YXS1# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
GXS10,LXS11,SXS11,YXS1# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09010 |
GXS10,LXS11,SXS11,YXS1# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82720-43030 |
LXS11 |
1 | ||
| 82720-43032 |
LXS11 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-43030 |
LXS11 |
1 | ||
| 82672-43032 |
LXS11 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 82674 - COVER, JUNCTION BLOCK LOWER | ||||
| 82674-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30100 |
LXS11 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 90987-04002 |
LXS11 |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-30290 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06171 | ||||
| 90179-06128 | ||||
| 90179-06208 | ||||
| 91515-G0616 | ||||
| 91635-60620 | ||||
| Linked diagrams | ||||
| 1901 | ||||
| 8202 | ||||
| 8404 | ||||
| 8714 | ||||
ILLUST NO. 4 OF 6(9604- )DLX
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82285A - WIRE, ILLUMINATION | ||||
| 82285-43010 |
GXS10,LXS11,SXS11,YXS11..DLX,SDX,SG |
1 | ||
| 82285A - WIRE, ILLUMINATION | ||||
| 82285-43010 |
GXS10,LXS11,SXS11,YXS11..DLX,SDX,SG |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95J03 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10320 |
GXS10,LXS11,SXS11,YXS1# 14V 0.84W |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-26010 |
LXS11 |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-43020 |
GXS10,LXS11,SXS11,YXS1# ｱﾘ(ﾌﾛﾝﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 84732-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-43020 |
GXS10,LXS11,SXS11,YXS1# ｱﾘ(ﾌﾛﾝﾄ ﾏﾆﾕｱﾙ ｴｱｺﾝ) |
1 | ||
| 84732-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10440 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W |
2 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10440 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W |
2 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10440 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W |
2 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10440 |
GXS10,LXS11,SXS11,YXS1# 14V 2.0W |
2 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
GXS10,LXS11,SXS11,YXS1# |
2 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-43010 |
GXS10,LXS11,SXS11,YXS1# NO.1 |
1 | ||
| 84731-43020 |
GXS10,LXS11,SXS11,YXS1# NO.2 |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-43010 |
GXS10,LXS11,SXS11,YXS1# NO.1 |
1 | ||
| 84731-43020 |
GXS10,LXS11,SXS11,YXS1# NO.2 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-43010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10310 |
GXS10,LXS11,SXS11,YXS1# 14V 0.91W |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-26010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-26010 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-17040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 85500-28050 |
GXS10,LXS11,SXS11,YXS11..DLX,SDX,SG |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-17040 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 85500-28050 |
GXS10,LXS11,SXS11,YXS11..DLX,SDX,SG |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
GXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
GXS10,LXS11,SXS11,YXS11..DLX,SDX,SG |
1 | ||
| 85520-20080 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
GXS10,LXS11,SXS11,YXS11..DLX,SDX,SG |
1 | ||
| 85520-20080 |
GXS10,LXS11,SXS11,YXS1# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30050 |
GXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG ｱﾘ(ｲﾙﾐﾈ-ｼﾖﾝ),NO.2 |
1 | ||
| 85533-30020 |
GXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG ｱﾘ(ｲﾙﾐﾈ-ｼﾖﾝ),NO.1 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30050 |
GXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG ｱﾘ(ｲﾙﾐﾈ-ｼﾖﾝ),NO.2 |
1 | ||
| 85533-30020 |
GXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG ｱﾘ(ｲﾙﾐﾈ-ｼﾖﾝ),NO.1 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30050 |
GXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG ｱﾘ(ｲﾙﾐﾈ-ｼﾖﾝ),NO.2 |
1 | ||
| 85533-30020 |
GXS10,LXS11,SXS11,YXS1#..DLX,SDX,SG ｱﾘ(ｲﾙﾐﾈ-ｼﾖﾝ),NO.1 |
1 | ||

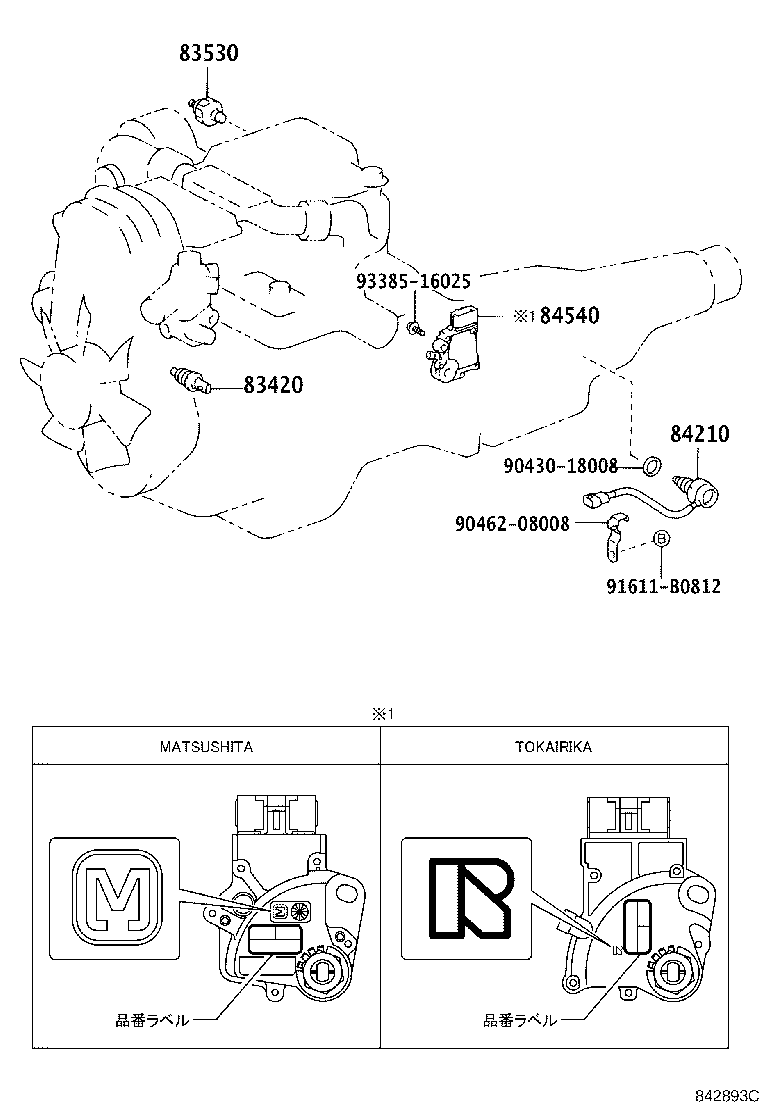

ILLUST NO. 1 OF 6(9512-9908)LXS11
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
LXS11,YXS1# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30060 |
LXS11 |
1 | ||
| 83530-60030 |
LXS11 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-30060 |
LXS11,SXS11,YXS1#..MTM |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||
| 90462-08008 | ||||
| 91611-B0812 | ||||
| 93385-16025 | ||||
