LXS11-BEPFT (1995)

Toyota Crown Comfort/Sed

Production Dec 1995 - Aug 1999
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512-9908)LXS11

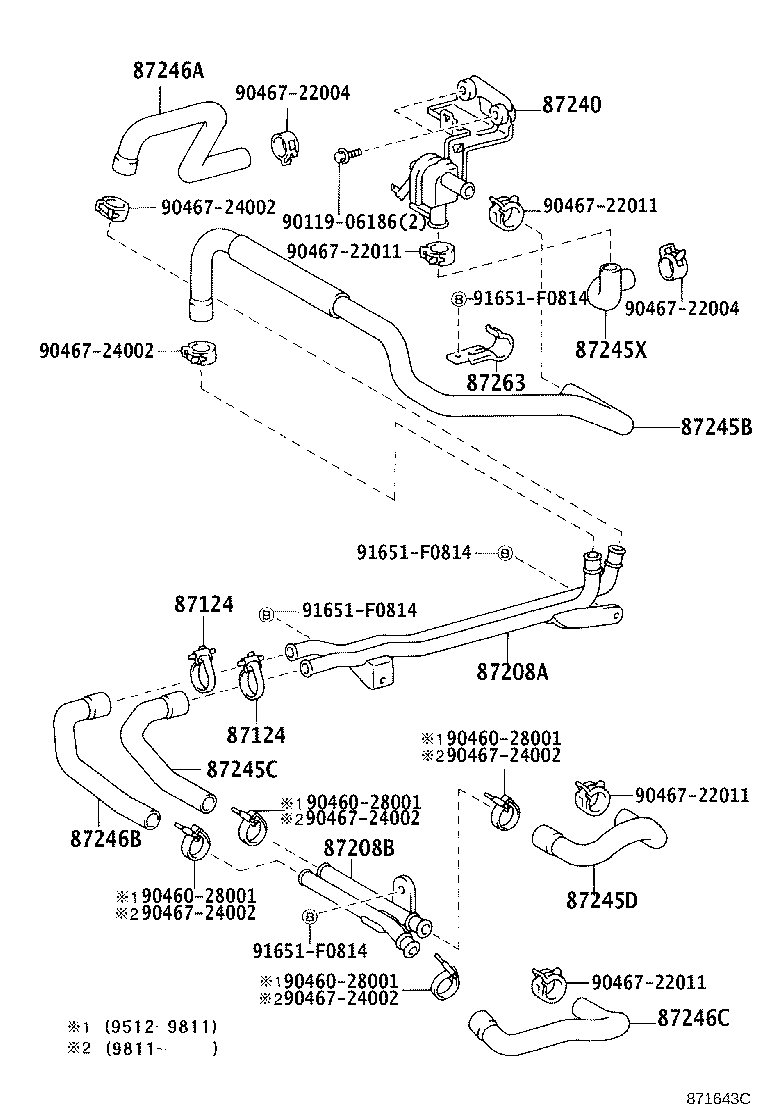

Click highlighted areas on diagram

diagram 87124 87124 87208A 87208B 87240 87245B 87245C 87245D 87245X 87246A 87246B 87246C 87263 9011906186 9046028001 9046028001 9046028001 9046028001 9046722004 9046722004 9046722011 9046722011 9046722011 9046722011 9046724002 9046724002 9046724002 9046724002 9046724002 9046724002 91651F0814 91651F0814 91651F0814 91651F0814
Part # Description Qty Price
87124 - CLAMP, HEATER
87124-28030

LXS11

 2
90467-22011

LXS11

 2
87124 - CLAMP, HEATER
87124-28030

LXS11

 2
90467-22011

LXS11

 2
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-22211

LXS11

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-89144

LXS11

 1
87240 - VALVE ASSY, HEATER WATER
87240-43020

LXS11

 1
87245B - HOSE, HEATER WATER, INLET B
87245-43050

LXS11

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-2A320

LXS11

 1
87245D - HOSE, HEATER WATER, INLET D
87245-2A260

LXS11

 1
87245X - HOSE, HEATER WATER
87245-43080

LXS11

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2A400

LXS11

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-2A330

LXS11

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-2A270

LXS11

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-22110

LXS11

 1
Common parts
90119-06186
90460-28001
90467-22004
90467-22011
90467-24002
91651-F0814
