GXS12-CEPFK (2001)
Toyota Crown Comfort/Sed
Production
Aug 2001
-
Aug 2007
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

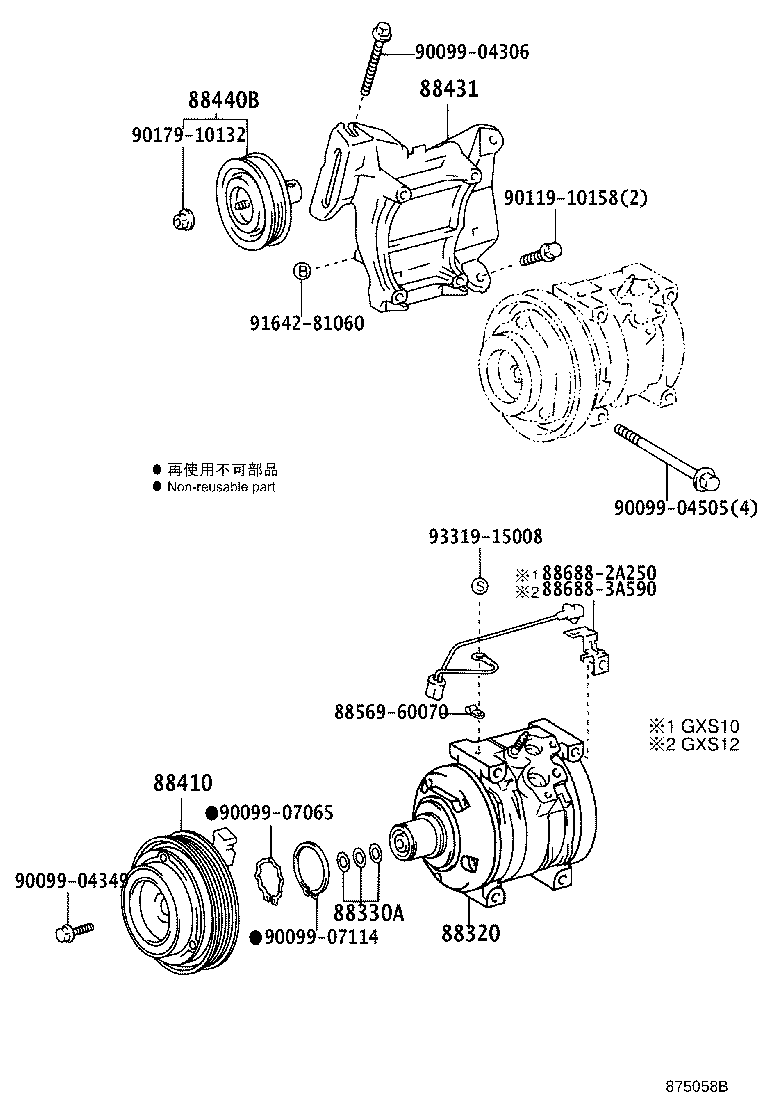

ILLUST NO. 1 OF 2(0108- )GXS1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-3A210 |
GXS12 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GXS12 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-2A090 |
GXS12 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22350 |
GXS12 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-20170 |
GXS12 |
1 | ||
| Common parts | ||||
| 88569-60070 | ||||
| 88688-2A250 | ||||
| 88688-3A590 | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-04505 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-10158 | ||||
| 90179-10132 | ||||
| 91642-81060 | ||||
| 93319-15008 | ||||
