GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0108- )GXS1#

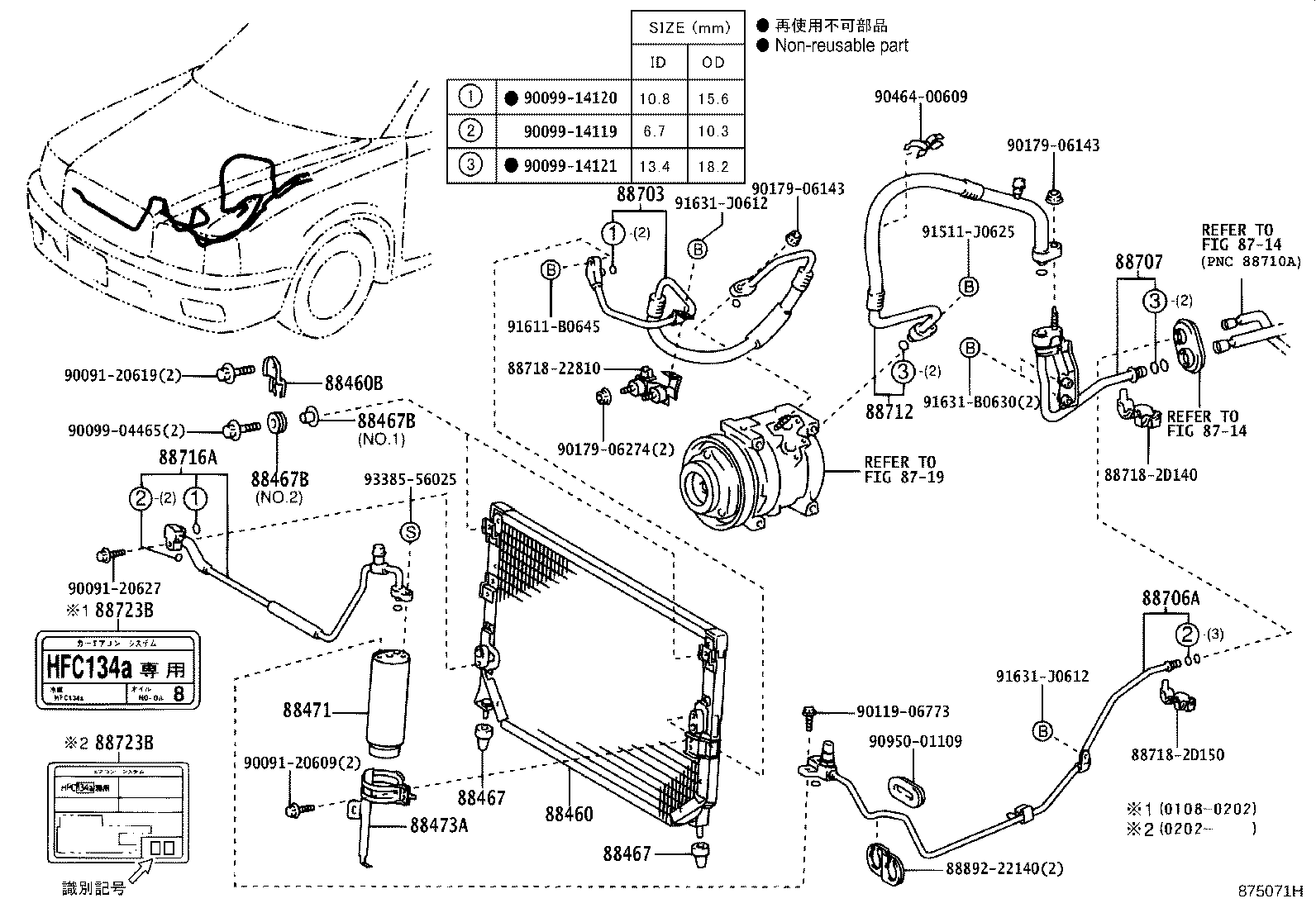

Click highlighted areas on diagram

diagram 8714 8714 8719 88460 88460B 88467 88467 88467B 88467B 88471 88473A 88703 88706A 88707 88712 88716A 8871822810 887182D140 887182D150 88723B 88723B 8889222140 9009120609 9009120619 9009120627 9009904465 9009914119 9009914120 9009914121 9011906773 9017906143 9017906143 9017906274 9046400609 9095001109 91511J0625 91611B0645 91631B0630 91631J0612 91631J0612 9338556025
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-43010

GXS12

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-43010

GXS12

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32020

GXS12

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-32020

GXS12

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-24060

GXS12

NO.2

 2
88467-14050

GXS12

NO.1

 2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-24060

GXS12

NO.2

 2
88467-14050

GXS12

NO.1

 2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-22030

GXS12

 1
88473A - HOLDER, RECEIVER
88473-43020

GXS12

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-43010

GXS12

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-43010

GXS12

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-43010

GXS12

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-43090

GXS12

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-43100

GXS12

 1
88723B - LABEL, COOLER SERVICE CAUTION
88733-24010

GXS12

ｲﾗｽﾄｻﾝｼｮｳ & ｼｷﾍﾞﾂ ｷｺﾞｳ=70

 1
88723-20030

GXS1#,SXS13,YXS1#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88733-24010

GXS12

ｲﾗｽﾄｻﾝｼｮｳ & ｼｷﾍﾞﾂ ｷｺﾞｳ=70

 1
88723-20030

GXS1#,SXS13,YXS1#

 1
Common parts
88718-22810
88718-2D140
88718-2D150
88892-22140
90091-20609
90091-20619
90091-20627
90099-04465
90099-14119
90099-14120
90099-14121
90119-06773
90179-06143
90179-06274
90464-00609
90950-01109
91511-J0625
91611-B0645
91631-B0630
91631-J0612
93385-56025
