GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )GXS12 ; (0210- )GBS12

Click highlighted areas on diagram

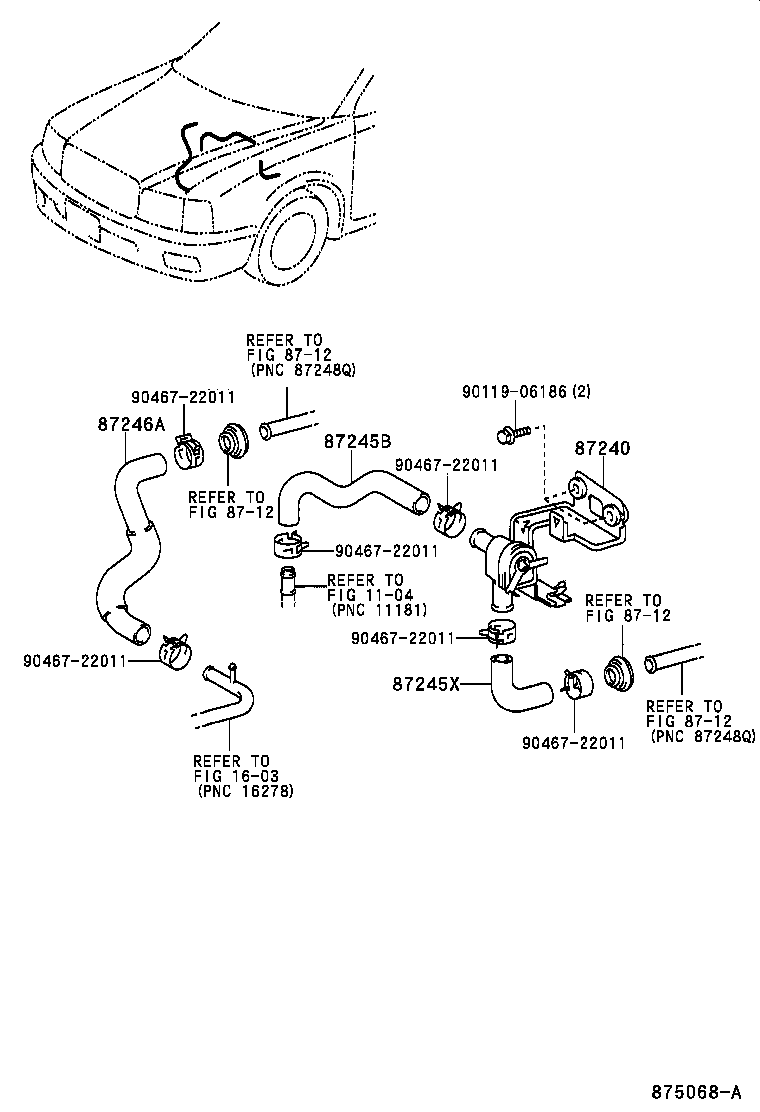

diagram 1104 1603 8712 8712 8712 8712 87240 87245B 87245X 87246A 9011906186 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-43020

GXS12

 1
87245B - HOSE, HEATER WATER, INLET B
87245-43110

GXS12

 1
87245X - HOSE, HEATER WATER
87245-43080

GXS12

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-43100

GXS12

 1
Common parts
90119-06186
90467-22011
Linked diagrams
1104
1603
8712
