GXS12-CEPFK (2001)

Toyota Crown Comfort/Sed

Production Aug 2001 - Aug 2007
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

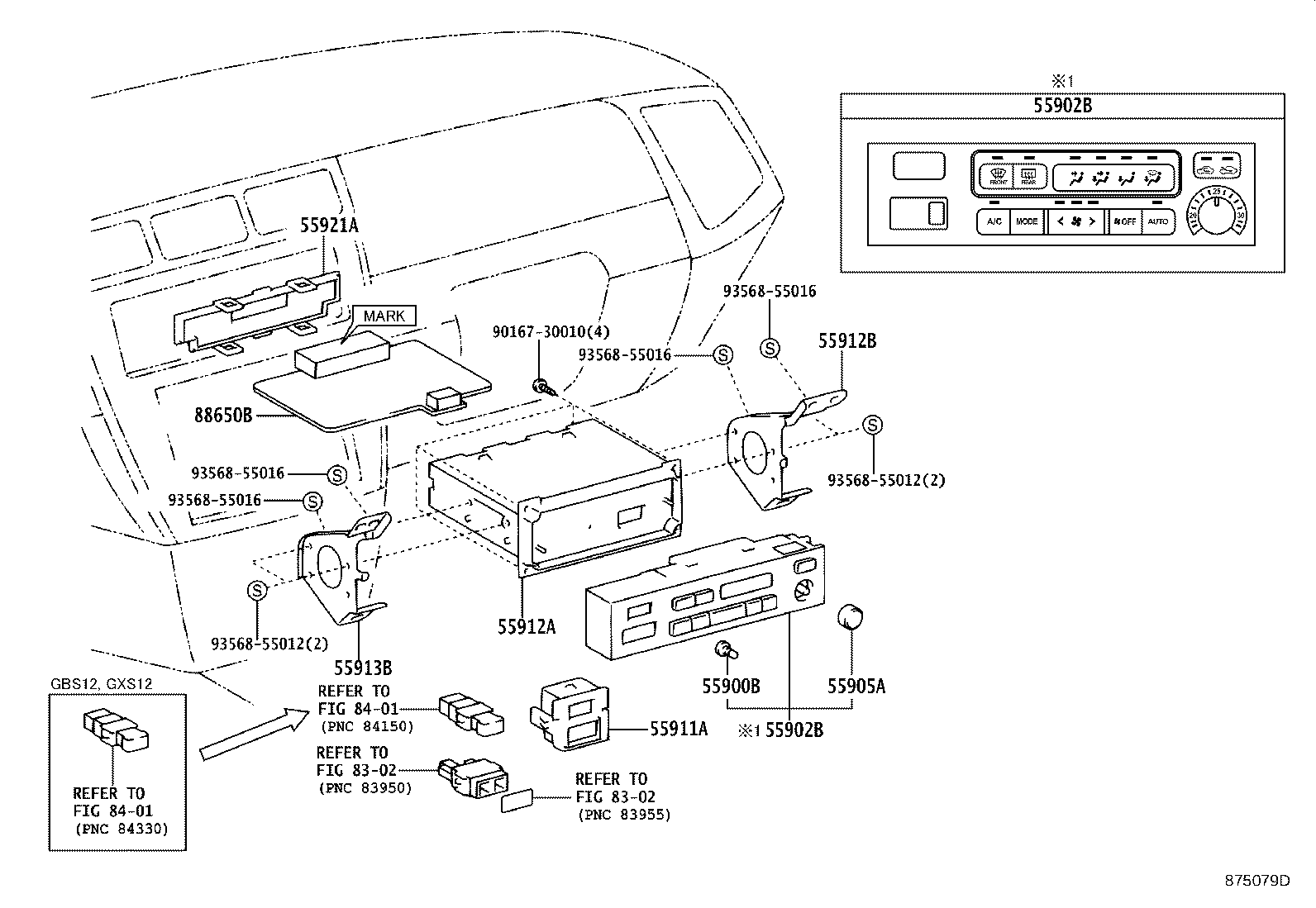

ILLUST NO. 1 OF 3(0108- )SED

Click highlighted areas on diagram

ｵｰﾄ ｺﾝﾄﾛｰﾙ

diagram 55900B 55902B 55902B 55905A 55911A 55912A 55912B 55913B 55921A 8302 8302 8401 8401 88650B 9016730010 9356855012 9356855012 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
55900B - BULB, AIR CONDITIONER CONTROL
90010-05101

GXS12

14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き

 4
55902B - CONTROL SUB-ASSY, HEATER
55902-43020

GXS12

 1
55902B - CONTROL SUB-ASSY, HEATER
55902-43020

GXS12

 1
55911A - BASE, HEATER CONTROL
55911-43010

GXS12

 1
55912A - HOUSING, HEATER CONTROL
55912-22020

GXS12

 1
55912B - BRACKET, HEATER CONTROL BASE, RH
55912-43010

GXS12

 1
55913B - BRACKET, HEATER CONTROL BASE, LH
55913-43010

GXS12

 1
55921A - RETAINER, HEATER CONTROL
55921-22070

GXS12

 1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-43040

GXS1#

 1
Common parts
90167-30010
93568-55012
93568-55016
Linked diagrams
8302
8401

ILLUST NO. 3 OF 3(0108- )SED ; (0808- )TSS10,11

Click highlighted areas on diagram

ｾﾝｻ

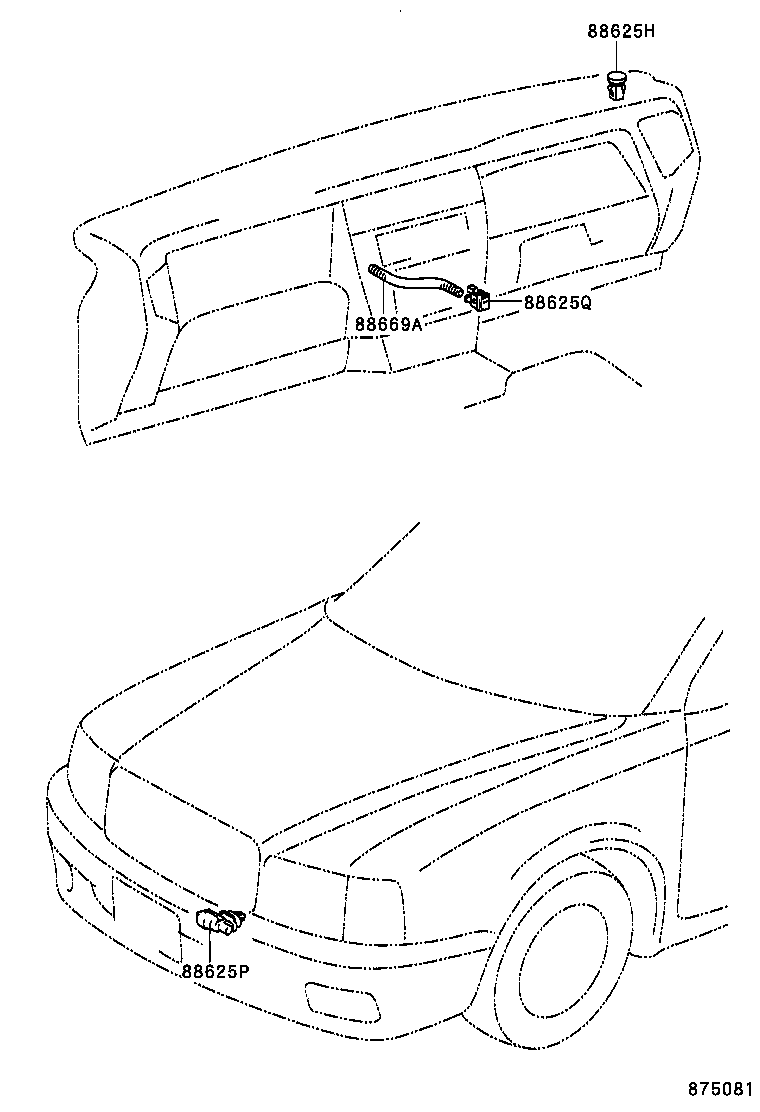

diagram 88625H 88625P 88625Q 88669A
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-47031

GXS12

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-22131

GXS12

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

GXS12

 1
88669A - HOSE (FOR COOLER THERMISTOR)
88669-43020

GXS12

 1
